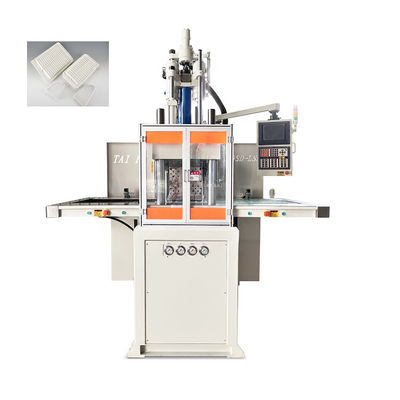

High Efficiency Double Slide Vertical Injection Molding Machine For Making Filter Screen

High Efficiency Double Slide Vertical Injection Molding Machine For Making Filter Screen



It is available to customize machines to meet your...

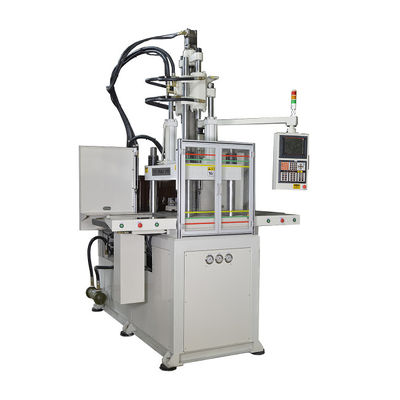

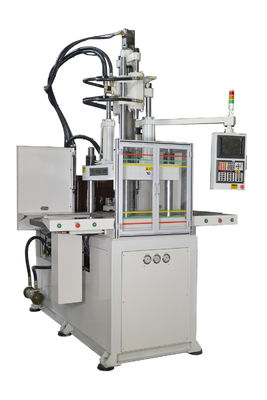

We are a professional manufacturer of vertical injection molding machines with 17 years of manufacturing experience. The double slide vertical injection molding machine is one of our main products. The product models include 25-1800 tons, and the injection volume can be from 3 grams to 3000 grams.



Vertical mold clamping, vertical injection. After the injection molding is completed, the product push out of the upper template space, making it easier for workers to operate. At the same time, robots and automation can be optionally installed for fully automated production.



We can customize and develop according to the actual needs of customers and provide the most precise, efficient and economical personalized combination solution.





ITEM		UNIT	TFV4-120SD
INJECTION UNIT
Screw stroke		mm	160
Screw Diameter		mm	36	40	45
Theoretical Injection Volume		cm3	163	201	254
Injection Weight(PS)		g	151	187	237
		oz	5.34	6.60	8.35
Max.Injection Pressure		Mpa	222	180	142
		kgf/cm2	2269	1838	1452
Screw Speed Rotation		r.p.m	10~280
CLAMPING UNIT
Optional shooting platform system type		name	A/B/C
Clamping Force		KN(ton)	1176(120(60*2))
Clamping Stroke		mm	280
Ejector Distance		mm	100
Ejector Force		KN(ton)	45(4.6)
OTHERS
System Pressure		Mpa(kgf/cm2)	13.7(140)
Oil Tank Capacity		L	340
Electric Power		KW	18+2.2
Heater Power		KW	10.7
Machine Dimensions	L*W	m	2.4*2.25
	H(Excluding shock-absorbing feet)	m	Min:3.3(Max:4.1)
Cooling water capacity		L/min	50
Height of Workbench+(Excluding shock-absorbing feet)		mm	1340+(70)
Machine Weight		ton	7.0





























· WHO WE ARE



TAIFU Machinery is a professional manufacturer of vertical injection molding machines integrated with strong capabilities of R&D, manufacturing and services, with more than 15 years manufacturing experience; 100 employees; 15,000 square feet of manufacturing floor spaces and with facility in the Dongguan city, Guangdong province, China. We are certified by ISO9001, CE and patents 20 inventions.

We aims to supply quality products and excellent services to create value for customers on the basis of integrity, innovation, and win-win cooperation. TAIFU Machinery will be your most valuable and reliable partner in business.













We have 15,000 square feet of manufacturing floor space and with facilities in China. All the machines are manufactured by our own employees in our own factory.



• FACTORY AREA







• Machine assembly workshop







• Warehouse





• Finished product machine shop









• PHOTOS OF DIFFERENT EXHIBITIONS







• DELIVERY

We products and delivers more than 2,000 sets of vertical injection molding machines annually. All the machines will be packed well before shipment.











• CUSTOMER SITES

We provide one-stop solutions of plastic injection molding from raw material to automation, trying to create more values for our customers.









For more than 15 years, we have recognized our customers as long-term partners, growing together. Take advantage of this global strength, and grow with us as we grow with you.





• COOPERATIVE CLIENTS





There are wide range of vertical plastic injection molding machines (thermoplastic, rubber) we provide, including Rotary table vertical injection molding machine, Bakelite machine, BMC Machine, LSR silicone injection molding machine, C-type vertical injection molding machine, etc. Not only can we provide standard machines, but we are able to also customize machines to meet your unique needs.





• WHAT WE DO



There are wide range of vertical plastic injection molding machines (thermoplastic, rubber) we provide, including Rotary table vertical injection molding machine, Bakelite machine, BMC Machine, LSR silicone injection molding machine, C-type vertical injection molding machine, etc. Not only can we provide standard machines, but we are able to also customize machines to meet your unique needs.



• GROUP PHOTO OF EMPLOYEES







Your Professional Vertical Injection Molding Machine Manufacturer-TAIFU



We are ready to provide a well-built, high-performance products. Contact Us Now!





Q1: Are you a trading company or manufacturer?

A: We are a factory located in Dongguan city-the largest industrial manufacturing area in China. All the machines are manufactured by our own employees in our own factory.



Q2: Packaging and shipping?
The spool is plastic-covered inside and cartoned outside. Or according to your request.



Q3: What are your payment terms?
A:T/T 50% in deposite,50% before departure.



Q4: Do you test all goods before delivery?
Yes, we have 100% testing before delivery

Q5: How about your delivery time?
A:Generally speaking, it will take 20 to 45 days after receiving the advance payment. The specific delivery time depends on regarding your order and quantity.
