Vertical Injection Molding Machine For Car Air Filter 120-160 Ton
TAIFU vertical injection molding machine is known for the quality, reliability and proven performance, allowing for easy handlingand extremely high operating safety. Our machines are widely applied in the field of injectionovermoulding, multi-colors injection moulding, multi-componentsinjection moulding, high-precision injectionmoulding, thermosetting injection moulding and liquid siliconeinjection moulding etc.
There are various models VSD-35/55/85/120/160/200/250/300 Available to customize. Contact us to get more information.
1. Sepcifications:
| |
UNIT |
TFV4-120SD |
TFV4-160SD |
TFV4-200SD |
| INJECTION UNIT |
Screw stroke |
mm |
160 |
200 |
200 |
| Screw Diameter |
mm |
36 |
40 |
45 |
45 |
50 |
55 |
55 |
60 |
65 |
| Theoretical Injection Volume |
cm3 |
163 |
201 |
254 |
318 |
393 |
475 |
475 |
565 |
664 |
| Injection Weight(PS) |
g |
151 |
187 |
237 |
296 |
365 |
442 |
442 |
526 |
617 |
| oz |
5.34 |
6.60 |
8.35 |
10.43 |
12.88 |
15.59 |
15.59 |
18.55 |
21.77 |
| Max.Injection Pressure |
Mpa |
222 |
180 |
142 |
218 |
177 |
146 |
170 |
143 |
122 |
| kgf/cm2 |
2269 |
1838 |
1452 |
2226 |
1803 |
1490 |
1738 |
1460 |
1244 |
| Injection Rate |
cm3/s |
128 |
158 |
200 |
167 |
206 |
249 |
314 |
373 |
438 |
| Max Injection Speed |
mm/s |
126 |
105 |
132 |
| Screw Speed Rotation |
r.p.m |
10~280 |
10~280 |
10~240 |
| Positioning ring diameter |
mm |
120 |
120 |
150 |
| Nozzle Out From Platens |
mm |
≥45 |
≥45 |
≥45 |
CLAMPING UNIT |
Clamping Force |
KN(ton) |
1176(120) |
1568(160) |
1960(200) |
| Clamping Stroke |
mm |
280 |
300 |
350 |
| Min.Mold Thickness |
mm |
280(380) |
300(400) |
350(450) |
| Max.Opening |
mm |
560(660) |
600(700) |
700(800) |
| (L*W)Distance Between Tie Bars |
mm |
760*380 |
860*420 |
900*450 |
| (L*W)Max.Mould Size |
mm |
600*540 |
630*630 |
710*710 |
| (L*W)Skate size |
mm |
1290*560 |
1400*650 |
1590*730 |
| QTY of Ejector |
pcs |
3 |
5 |
5 |
| Top bar spacing |
mm |
80 |
100 |
150 |
| Ejector Distance |
mm |
100 |
110 |
150 |
| Ejector Force |
KN(ton) |
45(4.6) |
45(4.6) |
45(4.6) |
| OTHERS |
System Pressure |
Mpa(kgf/cm2) |
13.7(140) |
13.7(140) |
13.7(140) |
| Oil Tank Capacity |
L |
340 |
450 |
540 |
| Electric Power |
KW |
18+2.2 |
22+2.2 |
31+2.2 |
| Heater Power |
KW |
10.7 |
13.7 |
13.7 |
| Machine Dimensions |
L*W*H |
m |
2.4*2.25*3.3 |
2.5*2.4*3.7 |
2.8*2.7*4.4 |
| Cooling water capacity |
L/min |
50 |
50 |
60 |
| Work Table Height |
mm |
1340+(70) |
1480+(80) |
1630+(80) |
| Machine Weight |
ton |
7.0 |
10.8 |
14.0 |
2. Features:
- It can be expanded with computer programming and automated extraction; embedded equipment connection can achieve the design of a fully automatic machine
- Vertical injection, Chinese/English electronic control, full-screen display, dual-ratio pressure and flow control, optimized mechanical structure, smooth operation, high speed
- The slide plate and base plate are made of cast iron, with steel strips isolating the connecting parts and lubrication oil holes, greatly reducing slide plate wear and deformation, increasing its lifespan and accuracy

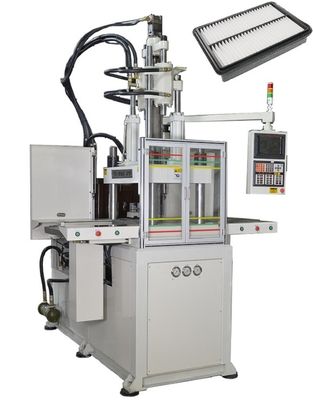

3. Machine Pictures:

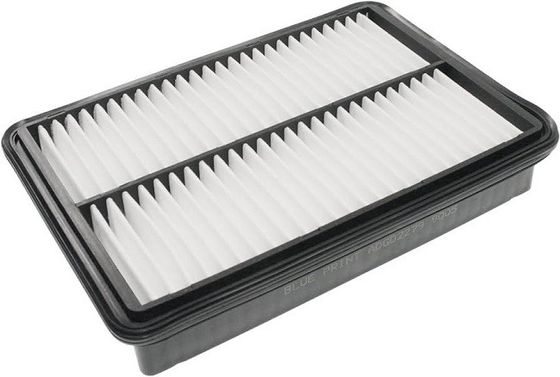

4. Applications:
