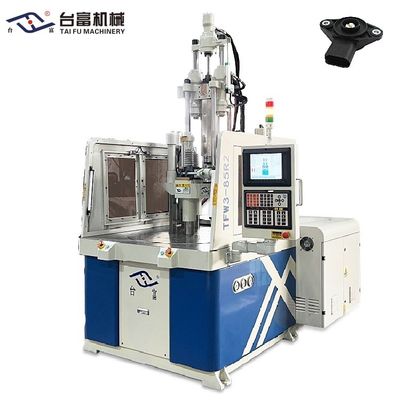

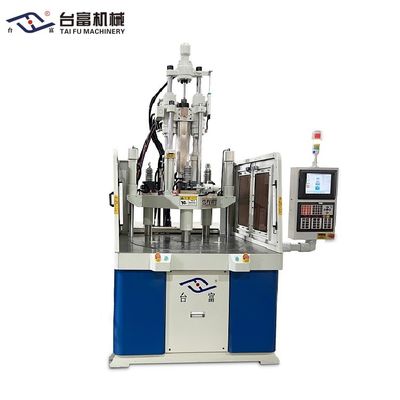

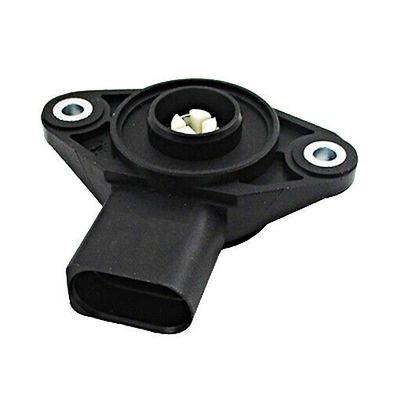

Brake Type Rotary Table Injection Molding Machine For Throttle Position Sensor
It is available to customize machines to meet your...
We are a professional manufacturer of vertical injection molding machines with 17 years of manufacturing experience. The brake type rotary table vertical injection molding machine with low workbench is one of our main products. The product models include 120-1800 tons, and the injection volume can be from 3 grams to 3000 grams.
Vertical mold clamping, vertical injection. A new generation of large two-plate ultra-low table disc machine and suitable for injection molding of large insert products and multi-purpose injection molding processes
We can customize and develop according to the actual needs of customers and provide the most precise, efficient and economical personalized combination solutions.
| TFWB3-120R2 Technical Parameters |
| Part MODEL |
UNIT |
TFWB3-120R2 |
| INJECTION UNIT |
| Screw stroke |
mm |
160 |
| Screw Diameter |
mm |
36 |
40 |
45 |
| Theoretical Injection Volume |
cm3 |
163 |
201 |
254 |
| Injection Weight(PS) |
g |
151 |
187 |
237 |
| oz |
5.34 |
6.60 |
8.35 |
| Positioning ring diameter |
mm |
120 |
| Nozzle Out From Platens |
mm |
≥45 |
| CLAMPING UNIT |
| Clamping Force |
KN(tf) |
1176(120) |
| QTY of Ejector |
pcs |
5 |
| Top bar spacing |
mm |
80 |
| Ejector Distance |
mm |
100 |
| Ejector Force |
KN(tf) |
45(4.6) |
| OTHERS |
| System Pressure |
Mpa(kgf/cm2) |
13.7(140) |
| Oil Tank Capacity |
L |
280 |
| Electric Power |
KW |
18+2.2 |
| Heater Power |
KW |
10.7 |
| Machine Dimensions |
L*W |
m |
2.5*2.0 |
| H |
m |
Min:2.7(Max:3.7) |
| Cooling water capacity |
L/min |
50 |
| Machine Weight |
ton |
7.0 |
Tell us your products, we are ready to provide custom solution. Contact Us Now!
TaiFu Machinery is a professional manufacturer of vertical injection molding machines integrated with strong capabilities of R&D, manufacturing and services, with more than 15 years manufacturing experience; 100 employees; 15,000 square feet of manufacturing floor spaces and with facility in the Dongguan city, Guangdong province, China. We are certified by ISO9001, CE and patents 20 inventions.
We aims to supply quality products and excellent services to create value for customers on the basis of integrity, innovation, and win-win cooperation. TAIFU Machinery will be your most valuable and reliable partner in business.
We have 15,000 square feet of manufacturing floor space and with facilities in China. All the machines are manufactured by our own employees in our own factory.
- Machine assembly workshop
- Finished product machine shop
- PHOTOS OF DIFFERENT EXHIBITIONS
We products and delivers more than 2,000 sets of vertical injection molding machines annually. All the machines will be packed well before shipment.
We provide one-stop solutions of plastic injection molding from raw material to automation, trying to create more values for our customers.
For more than 15 years, we have recognized our customers as long-term partners, growing together. Take advantage of this global strength, and grow with us as we grow with you.
There are wide range of vertical plastic injection molding machines (thermoplastic, rubber) we provide, including Rotary table vertical injection molding machine, Bakelite machine, BMC Machine, LSR silicone injection molding machine, C-type vertical injection molding machine, etc. Not only can we provide standard machines, but we are able to also customize machines to meet your unique needs.
Your Professional Vertical Injection Molding Machine Manufacturer-TAIFU
We are ready to provide a well-built, high-performance products. Contact Us Now!
Q: Are you a trading company or manufacturer?
A: We are a factory located in Dongguan city-the largest industrial manufacturing area in China. All the machines are manufactured by our own employees in our own factory.
Q: How long is your delivery time?
A: Small machines are in stock. Generally, the delivery time of standard machines is 7~35 working days. For customized machines, it will be 40~60 working days.
Q: How long is the warranty time?
A: 1 year warranty for all the machines. We provide free parts for any not man-made damages and quality problems. Our technical support will accompany with you during the machines' lifetime. If machines are operated properly, it can service more than 20 years.
Q: What are your terms of payment?
A: 50%TT in advance, 50% balance before shipment. or L/C at sight.
