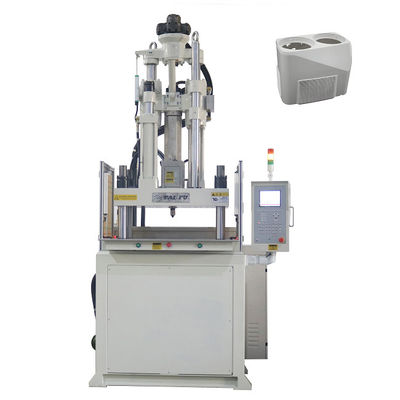

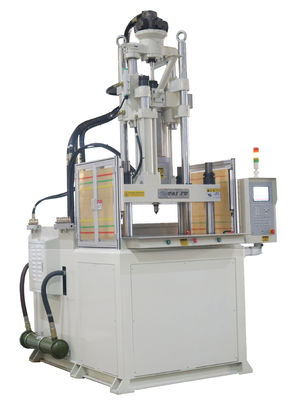

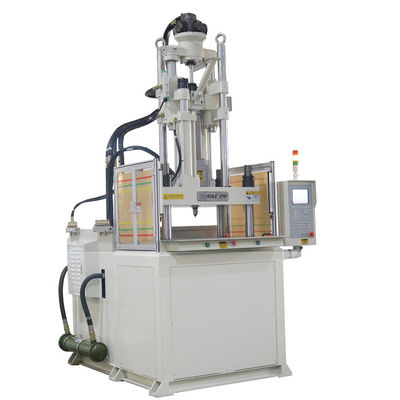

160 Ton Band Brake Standard Vertical Injection Molding Machine For Making Glasses Frame
Dongguan Taifu Machinery Co., Ltd. was established in 2009 and is located in Dongguan, Guangdong Province. With a global perspective, we specialize in the manufacturing of injection molding equipment and are a vertical injection molding machine supplier that integrates design, research and development, production, sales, and service.
The standard vertical injection molding machine is one of our company's main products. New generation large two plate ultra-low workbench standard machine, large capacity mold size and mold opening stroke, suitable for more molds.
We can customize and develop according to the actual needs of customers and provide the most precise, efficient and economical personalized combination solution.
| Part MODEL |
UNIT |
TFWB4-160 |
| |
INJECTION UNIT |
Screw stroke |
mm |
200 |
| Screw Diameter |
mm |
45 |
50 |
55 |
| Theoretical Injection Volume |
cm3 |
318 |
393 |
475 |
| Injection Weight(PS) |
g |
296 |
365 |
442 |
| oz |
10.43 |
12.88 |
15.59 |
| Max.Injection Pressure |
Mpa |
218 |
177 |
146 |
| kgf/cm2 |
2226 |
1803 |
1490 |
| Positioning ring diameter |
mm |
120 |
| Nozzle Out From Platens |
mm |
≥45 |
| |
CLAMPING UNIT |
Clamping Force |
KN(ton) |
1568(160) |
| QTY of Ejector |
pcs |
1 |
| Top bar spacing |
mm |
/ |
| Ejector Distance |
mm |
95 |
| Ejector Force |
KN(ton) |
45(4.6) |
| |
OTHERS |
System Pressure |
Mpa(kgf/cm2) |
13.7(140) |
| Electric Power |
KW |
22 |
| Machine Dimensions |
L*W |
m |
2.4*1.9 |
| |
H |
m |
Min:2.8(Max:3.7) |
| Cooling water capacity |
L/min |
50 |
| Machine Weight |
ton |
6.5
|
· WHO WE ARE
TAIFU Machinery is a professional manufacturer of vertical injection molding machines integrated with strong capabilities of R&D, manufacturing and services, with more than 15 years manufacturing experience; 100 employees; 15,000 square feet of manufacturing floor spaces and with facility in the Dongguan city, Guangdong province, China. We are certified by ISO9001, CE and patents 20 inventions.
We aims to supply quality products and excellent services to create value for customers on the basis of integrity, innovation, and win-win cooperation. TAIFU Machinery will be your most valuable and reliable partner in business.
· OFFICE AREA
We have 15,000 square feet of manufacturing floor space and with facilities in China. All the machines are manufactured by our own employees in our own factory.
· Parts processing center
- Machine assembly workshop
- Finished product machine shop
- PHOTOS OF DIFFERENT EXHIBITIONS
We products and delivers more than 2,000 sets of vertical injection molding machines annually. All the machines will be packed well before shipment.
We provide one-stop solutions of plastic injection molding from raw material to automation, trying to create more values for our customers.
For more than 15 years, we have recognized our customers as long-term partners, growing together. Take advantage of this global strength, and grow with us as we grow with you.
There are wide range of vertical plastic injection molding machines (thermoplastic, rubber) we provide, including Rotary table vertical injection molding machine, Bakelite machine, BMC Machine, LSR silicone injection molding machine, C-type vertical injection molding machine, etc. Not only can we provide standard machines, but we are able to also customize machines to meet your unique needs.
There are wide range of vertical plastic injection molding machines (thermoplastic, rubber) we provide, including Rotary table vertical injection molding machine, Bakelite machine, BMC Machine, LSR silicone injection molding machine, C-type vertical injection molding machine, etc. Not only can we provide standard machines, but we are able to also customize machines to meet your unique needs.
Your Professional Vertical Injection Molding Machine Manufacturer-TAIFU
We are ready to provide a well-built, high-performance products. Contact Us Now!
Q1: Are you a trading company or manufacturer?
A: We are a factory located in Dongguan city-the largest industrial manufacturing area in China. All the machines are manufactured by our own employees in our own factory.
Q2: What are the advantages of the band brake standard machine?
A: The overall height of the machine is 25~30% lower than that of traditional tonnag.
Q3: What are your payment terms?
A:T/T 50% in deposite,50% before departure.
Q4: How about your delivery time?
A:Generally speaking, it will take 20 to 45 days after receiving the advance payment. The specific delivery time depends on
Regarding your order and quantity.
Q5:How do you handle packaging and shipping?
A: Our spool are plastic-lined inside and packaged in cartons for safe transportation.However,we can also customize the packaging according to your specific requirements.
