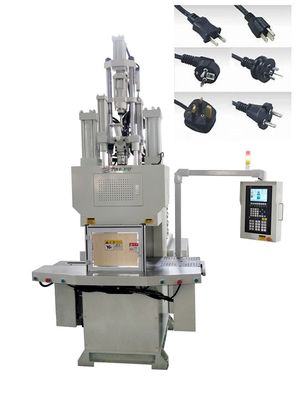

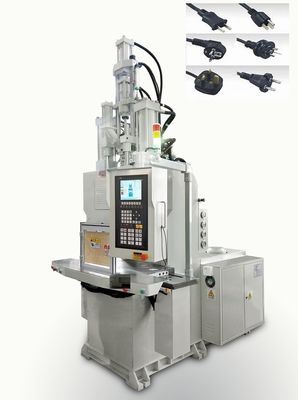

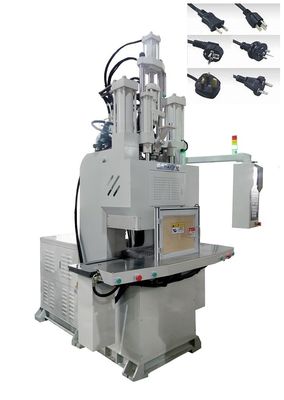

high Efficiency 35 Ton Power Cord Making Machine Vertical Injection Molding Machine

High Efficiency 35 Ton Power Cord Making Machine Vertical Injection Molding Machine



It is available to customize machines to meet your...



We are a professional manufacturer of vertical injection molding machines with 17 years of manufacturing experience. The standard vertical injection molding machine is one of our main products. The product models include 15-550 tons, and the injection volume can be from 3 grams to 3000 grams.



Vertical mold clamping, vertical injection. After the injection molding is completed, the product push out of the upper template space, making it easier for workers to operate. At the same time, robots and automation can be optionally installed for fully automated production.



We can customize and develop according to the actual needs of customers and provide the most precise, efficient and economical personalized combination solution.







ITEMS				UNIT	TFC-35SD
INJECTION UNIT					HZ3
		Screw stroke		mm	140
		Screw Diameter		mm	32
		Theoretical Injection Volume		cm3	113
		Injection Weight(PS)		g	105
				oz	3.69
		Injection Rate		cm3/s	94
		Injection Speed		mm/s	117
		Screw Speed Rotation		r.p.m	10~280
CLAMPING UNIT		Clamping Force		KN(ton)	343(35)
		Clamping Stroke		mm	200
		Ejector Distance		mm	100
		Ejector Force		KN(ton)	31.3(3.2)
OTHERS		System Pressure		Mpa(kgf/cm2)	13.7(140)
		Electric Power		KW	7.5
		Heater Power		KW	5.5
		Cooling water capacity		L/min	25
		Machine Dimensions	L*W	m	2.5*1.4
			H	m	2.2
		Machine Weight		ton	3.1







































 · WHO WE ARE





TAIFU Machinery is a professional manufacturer of vertical injection molding machines integrated with strong capabilities of R&D, manufacturing and services, with more than 15 years manufacturing experience; 100 employees; 15,000 square feet of manufacturing floor spaces and with facility in the Dongguan city, Guangdong province, China. We are certified by ISO9001, CE and patents 20 inventions.

We aims to supply quality products and excellent services to create value for customers on the basis of integrity, innovation, and win-win cooperation. TAIFU Machinery will be your most valuable and reliable partner in business.



























       We have 15,000 square feet of manufacturing floor space and with facilities in China. All the machines are manufactured by our own employees in our own factory.





• FACTORY AREA



· Parts processing center







• Machine assembly workshop







• Warehouse







• Finished product machine shop









• PHOTOS OF DIFFERENT EXHIBITIONS











• DELIVERY

 We products and delivers more than 2,000 sets of vertical injection molding machines annually. All the machines will be packed well before shipment.









• CUSTOMER SITES

We provide one-stop solutions of plastic injection molding from raw material to automation, trying to create more values for our customers.







  For more than 15 years, we have recognized our customers as long-term partners, growing together. Take advantage of this global strength, and grow with us as we grow with you.





• COOPERATIVE CLIENTS





  There are wide range of vertical plastic injection molding machines (thermoplastic, rubber) we provide, including Rotary table vertical injection molding machine, Bakelite machine, BMC Machine, LSR silicone injection molding machine, C-type vertical injection molding machine, etc. Not only can we provide standard machines, but we are able to also customize machines to meet your unique needs.





• WHAT WE DO



   There are wide range of vertical plastic injection molding machines (thermoplastic, rubber) we provide, including Rotary table vertical injection molding machine, Bakelite machine, BMC Machine, LSR silicone injection molding machine, C-type vertical injection molding machine, etc. Not only can we provide standard machines, but we are able to also customize machines to meet your unique needs.



• GROUP PHOTO OF EMPLOYEES





Your Professional Vertical Injection Molding Machine Manufacturer-TAIFU



We are ready to provide a well-built, high-performance products. Contact Us Now!

Q1: Do you test all goods before delivery?
Yes, we have 100% testing before delivery



Q2:How do you handle packaging and shipping?

A: Our spool are plastic-lined inside and packaged in cartons for safe transportation.However,we can also customize the packaging according to your specific requirements.



Q3: What are your terms of payment?

A: 50%TT in advance, 50% balance before shipment. or L/C at sight.



Q4:What advantages of C-Type  Injection Molding Machine?

A: The injcetion base can be raised and lowered with adjustable advance and retreat. It is easy to adjust the center of the die horizontally, and it is fast and convenient to frame the die.



Q5: What types of products can be produced using a vertical injection molding machine?

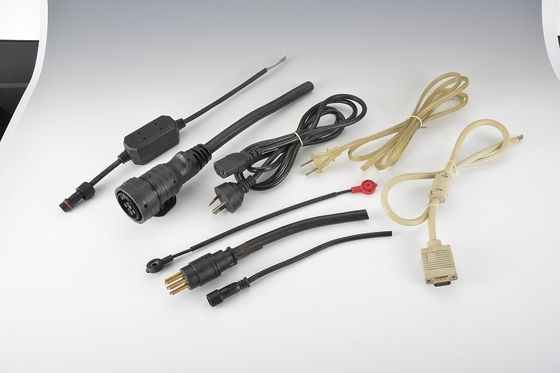

Vertical injection molding machines are commonly used for producing products such as insert-molded components, overmolded products, vertical overmolded cables and connectors, and small precision parts.
