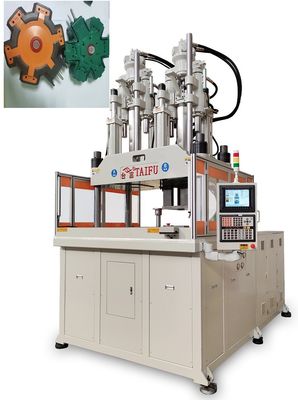

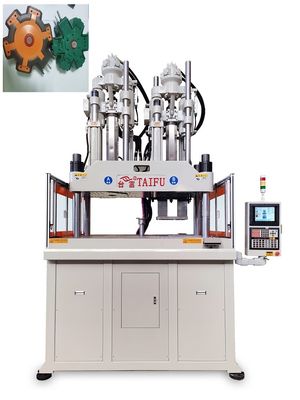

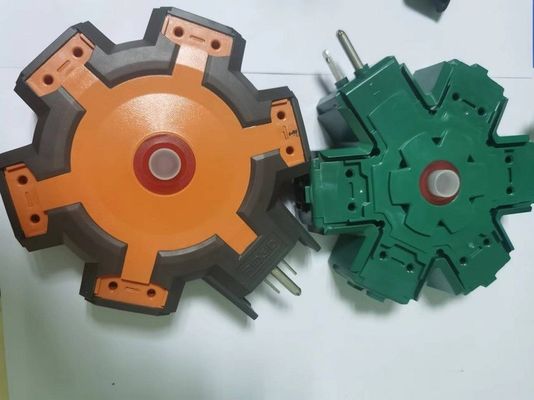

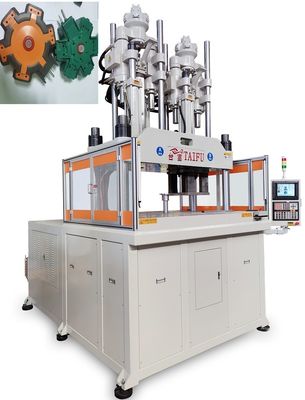

170 Ton Vertical Double Color Injection Molding Machine For Outlet Extension

170 Ton Vertical Double Color Injection Molding Machine For Outlet Extension



It is available to customize machines to meet your...



We are a professional manufacturer of vertical injection molding machines with 17 years of manufacturing experience. The standard vertical injection molding machine is one of our main products. The product models include 15-550 tons, and the injection volume can be from 3 grams to 3000 grams.



Vertical mold clamping, vertical injection. After the injection molding is completed, the product push out of the upper template space, making it easier for workers to operate. At the same time, robots and automation can be optionally installed for fully automated production.



We can customize and develop according to the actual needs of customers and provide the most precise, efficient and economical personalized combination solution.





ITEM		UNIT	TFV4-170ZT-2C
INJECTION UNIT
Screw stroke		mm	140
Screw Diameter		mm	28	30	32
Theoretical Injection Volume		cm3	86	99	113
Injection Weight(PS)		g	80	92	105
		oz	2.83	3.25	3.69
Screw Speed Rotation		r.p.m	10~300
CLAMPING UNIT
Clamping Force		KN(ton)	1666(170(85*2))
Clamping Stroke		mm	280
Ejector Distance		mm	90
Ejector Force		KN(ton)	26.5(2.7)
OTHERS
System Pressure		Mpa(kgf/cm2)	13.7(140)
Electric Power		KW	15+15
Heater Power		KW	5.5
Machine Dimensions	L*W	m	2.6*2.4
	H(Excluding shock-absorbing feet)	m	Min:3.2(Max:4.1)
Cooling water capacity		L/min	70
Machine Weight		ton	9.5































 · WHO WE ARE





TAIFU Machinery is a professional manufacturer of vertical injection molding machines integrated with strong capabilities of R&D, manufacturing and services, with more than 15 years manufacturing experience; 100 employees; 15,000 square feet of manufacturing floor spaces and with facility in the Dongguan city, Guangdong province, China. We are certified by ISO9001, CE and patents 20 inventions.

We aims to supply quality products and excellent services to create value for customers on the basis of integrity, innovation, and win-win cooperation. TAIFU Machinery will be your most valuable and reliable partner in business.













       We have 15,000 square feet of manufacturing floor space and with facilities in China. All the machines are manufactured by our own employees in our own factory.





• FACTORY AREA





• Machine assembly workshop







• Warehouse







• Finished product machine shop









• PHOTOS OF DIFFERENT EXHIBITIONS









• DELIVERY

 We products and delivers more than 2,000 sets of vertical injection molding machines annually. All the machines will be packed well before shipment.









• CUSTOMER SITES

We provide one-stop solutions of plastic injection molding from raw material to automation, trying to create more values for our customers.









For more than 15 years, we have recognized our customers as long-term partners, growing together. Take advantage of this global strength, and grow with us as we grow with you.





• COOPERATIVE CLIENTS









There are wide range of vertical plastic injection molding machines (thermoplastic, rubber) we provide, including Rotary table vertical injection molding machine, Bakelite machine, BMC Machine, LSR silicone injection molding machine, C-type vertical injection molding machine, etc. Not only can we provide standard machines, but we are able to also customize machines to meet your unique needs.





• WHAT WE DO



   There are wide range of vertical plastic injection molding machines (thermoplastic, rubber) we provide, including Rotary table vertical injection molding machine, Bakelite machine, BMC Machine, LSR silicone injection molding machine, C-type vertical injection molding machine, etc. Not only can we provide standard machines, but we are able to also customize machines to meet your unique needs.



• GROUP PHOTO OF EMPLOYEES





Your Professional Vertical Injection Molding Machine Manufacturer-TAIFU



We are ready to provide a well-built, high-performance products. Contact Us Now!





Q1: Are you a trading company or manufacturer?

A: We are a factory located in Dongguan city-the largest industrial manufacturing area in China. All the machines are manufactured by our own employees in our own factory.



Q2: Packaging and shipping?
The spool is plastic-covered inside and cartoned outside. Or according to your request.



Q3: Do you test all goods before delivery?
Yes, we have 100% testing before delivery



Q4: What are your payment terms?
A:T/T 50% in deposite,50% before departure.

Q5: What are the advantages of Double Color injection molding machine?
A:High efficiency disc with water jacket in the middle. It can be used for cooling water transportation of the lower die.It can also be sepaeated by two groups of independently clamping systems and movable templates. Different die thicknesses can also be double color, double material forming.
