Product Details:
|
| Name: | Two-Color Screwdriver Injection Molding Machine | Clamping Force: | 120 Tons |
|---|---|---|---|
| After-sales Service Provided: | 1 Year | Application: | Two-color Screwdriver |
| Motor: | Servo Motor | Advantage: | High Precision, Energy Saving And Easy To Operate |
| Color: | Blue, Orange, And White | Usage: | Two-color Products |
| High Light: | Multi-Color Vertical Injection Molding Machine,screwdriver Injection Molding Machine,two color injection molding |
||
Two-Color Screwdriver Injection Molding Machine With Rotary Table
It is available to customize machines to meet your...
TAIFU two-color injection molding machine is an injection molding machine that can produce two plastic products of different materials or colors on one injection molding machine. Inject two different materials or colors of injection molding raw materials into the same set of molds, and then make plastic products from the two different materials. Some of this difference is due to different colors, and some are different plastic materials, but the practicality and aesthetics of the products are stronger than those of single-color products.
The products processed by the two-color injection molding machine include the following two-color items: toothbrushes, handles, watch straps, multi-color fruit cutters, glasses frames, two-color shovels, two-color screwdriver etc.
We can customize and develop according to the actual needs of customers and provide the most precise, efficient and economical personalized combination solutions.
1. Sepcifications:
| ITEM | UNIT | TFV4-90R2-2C | TFV4-120R2-2C | TFV4-170R2-2C | |||||||
| INJECTION UNIT | |||||||||||
| Screw stroke | mm | 100 | 140 | 140 | |||||||
| Screw Diameter | mm | 18 | 22 | 28 | 22 | 26 | 28 | 28 | 30 | 32 | |
| Theoretical Injection Volume | cm3 | 25 | 38 | 62 | 53 | 74 | 86 | 86 | 99 | 113 | |
| Injection Weight(PS) | g | 24 | 35 | 57 | 49 | 69 | 80 | 80 | 92 | 105 | |
| oz | 0.83 | 1.25 | 2.02 | 1.75 | 2.44 | 2.83 | 2.83 | 3.25 | 3.69 | ||
| Max.Injection Pressure | Mpa | 343 | 230 | 142 | 248 | 178 | 153 | 213 | 185 | 163 | |
| kgf/cm2 | 3500 | 2343 | 1446 | 2531 | 1812 | 1563 | 2170 | 1890 | 1661 | ||
| Screw Speed Rotation | r.p.m | 10~350 | 10~300 | 10~300 | |||||||
| Nozzle Out From Platens | mm | ≥45 | ≥45 | ≥45 | |||||||
| Heater Power | KW | 3.6 | 3.6 | 5.5 | |||||||
| CLAMPING UNIT | |||||||||||
| Optional shooting platform system type | name | A/B/C | A/B/C | A/B/C/D | |||||||
| Clamping Force | KN(ton) | 882((90(45*2) | 1176(120(60*2) | 1666(170(85*2) | |||||||
| Clamping Stroke | mm | 250 | 280 | 280 | |||||||
| Min.Mold Thickness | mm | 230(310) | 250(350) | 280(380) | |||||||
| Max.Opening | mm | 480(560) | 530(630) | 560(660) | |||||||
| (L*W)Max.Mould Size | mm | 310*310 | 350*350 | 420*420 | |||||||
| (D) Rotary Table Size | mm | φ910 | φ1010 | φ1200 | |||||||
| Ejector Distance | mm | 45 | 60 | 90 | |||||||
| Ejector Force | KN(ton) | 17.2(1.75) | 17.2(1.75) | 26.5(2.7) | |||||||
| OTHERS | |||||||||||
| System Pressure | Mpa(kgf/cm2) | 13.7(140) | 13.7(140) | 13.7(140) | |||||||
| Oil Tank Capacity | L | 330 | 460 | 650 | |||||||
| Electric Power | KW | 7.5+7.5 | 11+11 | 15+15 | |||||||
| Machine Dimensions | L*W | m | 2.1*1.8 | 2.4*2.2 | 2.6*2.4 | ||||||
| H(Excluding shock-absorbing feet) | m | Min:2.5(Max:3.4) | Min:2.8(Max:3.6) | Min:3.2(Max:4.1) | |||||||
| Cooling water capacity | L/min | 60 | 60 | 70 | |||||||
| Height of Workbench+(Excluding shock-absorbing feet) | mm | 1310+(60) | 1450+(80) | 1500+(80) | |||||||
| Machine Weight | ton | 5.2 | 7.3 | 9.5 | |||||||
2. Features:
Easy to achieve the molding of the blade
Convenient to configure various automatic devices to realize the automatic molding of complex plastic products
The two-color injection molding machine has various forms of table tops such as rotation, movement, and tilt, because the two-color injection molding machine is a horizontal template that supports the weight of the mold , can be opened and closed up and down, which is conducive to maintaining the accuracy of the mold and machinery for a long time

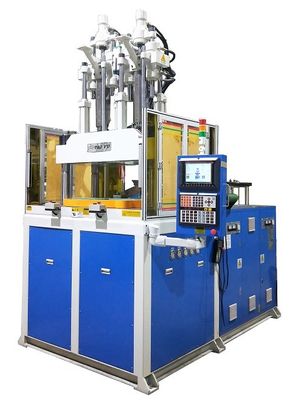

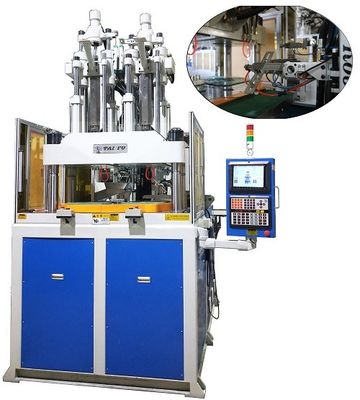

3. Machine Pictures:
4. Applications:
5. FAQ:
Q: What factors affect the price of two-color injection molding machines?
A: Customers who have purchased a two-color injection molding machine are only concerned about the price of the two-color injection molding machine. In fact, it is inaccurate to ask the manufacturer about the price of the injection molding machine without clarifying the material, size, acupoint, precision, appearance requirements and other series of parameters to be injected.
Q: Are you a trading company or manufacturer?
A: We are a factory located in Dongguan city-the largest industrial manufacturing area in China. All the machines are manufactured by our own employees in our own factory.
Q: How long is your delivery time?
A: Small machines are in stock. Generally, the delivery time of standard machines is 7~35 working days. For customized machines, it will be 40~60 working days.
Q: How long is the warranty time?
A: 1 year warranty for all the machines. We provide free parts for any not man-made damages and quality problems. Our technical support will accompany with you during the machines' lifetime. If machines are operated properly, it can service more than 20 years.
Q: What are your terms of payment?
A: 30%TT in advance, 70% balance before shipment. or L/C at sight.
