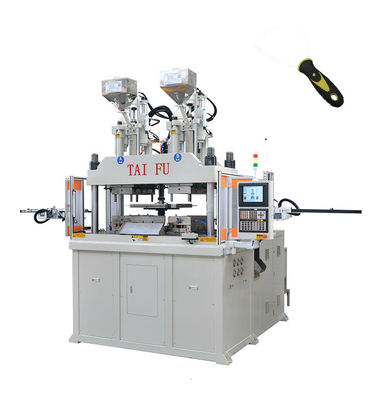

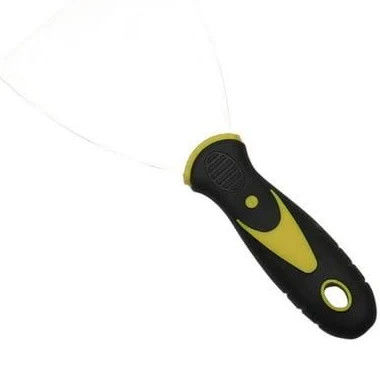

120 Ton Scraper With Handle Making Machine Vertical Two Color Injection Molding Machine

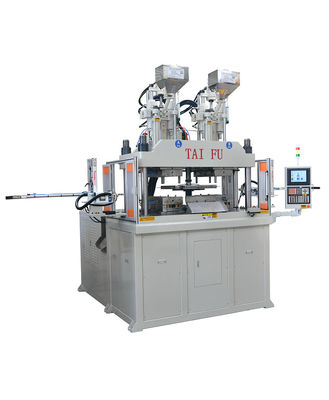

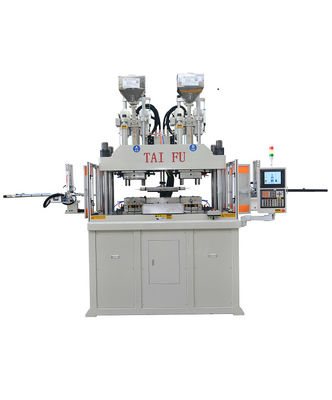

Taifu vertical two-color turntable injection molding machine is specially designed for two-color and two-material injection molding. It is equipped with two sets of injection devices with independent hydraulic oil circuits. Two molds can be installed on the upper template and the turntable.
During molding, the turntable rotates 180° forward and reverse alternately to complete injection molding of two colors and two materials. It can also be used with a turret to practice automated production.
The machine is equipped with a high-performance control system to provide a strong guarantee for high-quality injection molding accuracy and stability. It is now widely used in the auto parts and new energy industries.
We can also customize machines according to your needs!
Machine Technical Parameters
| ITEM |
UNIT |
TFV4-120ZT-2C |
| INJECTION UNIT |
| Screw stroke |
mm |
140 |
| Screw Diameter |
mm |
22 |
26 |
28 |
| Theoretical Injection Volume |
cm3 |
53 |
74 |
86 |
| Injection Weight(PS) |
g |
49 |
69 |
80 |
| oz |
1.75 |
2.44 |
2.83 |
| Max.Injection Pressure |
Mpa |
248 |
178 |
153 |
| kgf/cm2 |
2531 |
1812 |
1563 |
| Screw Speed Rotation |
r.p.m |
10~300 |
| Nozzle Out From Platens |
mm |
≥45 |
| Heater Power |
KW |
3.6 |
| CLAMPING UNIT |
| Clamping Force |
KN(ton) |
1176(120(60*2)) |
| Clamping Stroke |
mm |
280 |
| (D) Rotary Table Size |
mm |
φ1010 |
| Ejector Distance |
mm |
60 |
| Ejector Force |
KN(ton) |
17.2(1.75) |
| OTHERS |
| System Pressure |
Mpa(kgf/cm2) |
13.7(140) |
| Oil Tank Capacity |
L |
460 |
| Electric Power |
KW |
11+11 |
| Machine Dimensions |
L*W |
m |
2.4*2.2 |
| H(Excluding shock-absorbing feet) |
m |
Min:2.8(Max:3.6) |
| Height of Workbench+(Excluding shock-absorbing feet) |
mm |
1450+(80) |
| Machine Weight |
ton |
7.3 |
WHO WE ARE
TAIFU Machinery is a professional manufacturer of vertical injection molding machines integrated with strong capabilities of R&D, manufacturing and services, with more than 15 years manufacturing experience; 100 employees; 15,000 square feet of manufacturing floor spaces and with facility in the Dongguan city, Guangdong province, China. We are certified by ISO9001, CE and patents 20 inventions. We aims to supply quality products and excellent services to create value for customers on the basis of integrity, innovation, and win-win cooperation. TAIFU Machinery will be your most valuable and reliable partner in business.
OFFICE AREA
FACTORY AREA
We have 15,000 square feet of manufacturing floor space and with facilities in China. All the machines are manufactured by our own employees in our own factory.
- Machine assembly workshop
- Finished product machine shop
PHOTOS OF DIFFERENT EXHIBITIONS
DELIVERY
We products and delivers more than 2,000 sets of vertical injection molding machines annually. All the machines will be packed well before shipment.
CUSTOMER SITES
We provide one-stop solutions of plastic injection molding from raw material to automation, trying to create more values for our customers.
COOPERATIVE CLIENTS
For more than 15 years, we have recognized our customers as long-term partners, growing together. Take advantage of this global strength, and grow with us as we grow with you.
WHAT WE DO
There are wide range of vertical plastic injection molding machines (thermoplastic, rubber) we provide, including Rotary table vertical injection molding machine, Bakelite machine, BMC Machine, LSR silicone injection molding machine, C-type vertical injection molding machine, etc. Not only can we provide standard machines, but we are able to also customize machines to meet your unique needs.
GROUP PHOTO OF EMPLOYEES
Your Professional Vertical Injection Molding Machine Manufacturer
-TAIFU We are ready to provide a well-built, high-performance products. Contact Us Now!
Q: Are you a trading company or manufacturer?
A: We are a factory located in Dongguan city-the largest industrial manufacturing area in China. All the machines are manufactured by our own employees in our own factory.
Q: How long is your delivery time?
A: Small machines are in stock. Generally, the delivery time of standard machines is 7~35 working days. For customized machines, it will be 40~60 working days.
Q: How long is the warranty time?
A: 1 year warranty for all the machines. We provide free parts for any not man-made damages and quality problems. Our technical support will accompany with you during the machines' lifetime. If machines are operated properly, it can service more than 20 years.
Q: What are your terms of payment?
A: 50%TT in advance, 50% balance before shipment. or L/C at sight.
