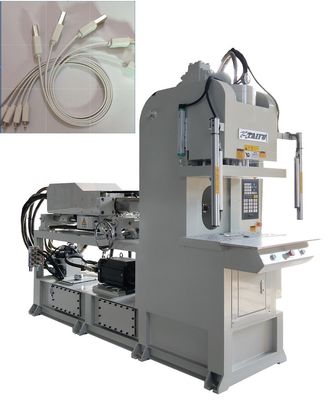

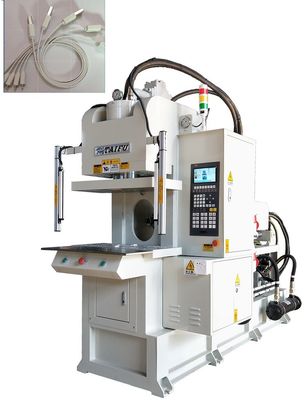

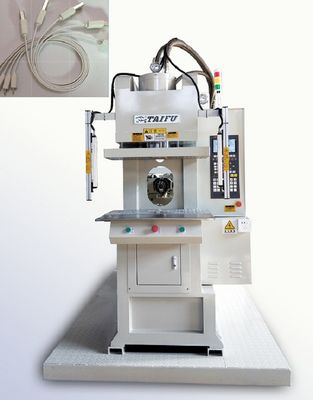

High Efficiency 55 Ton Data Cables Injection Molding Machine With C Type White
It is available to customize machines to meet your...
We are a professional manufacturer of vertical injection molding machines with 17 years of manufacturing experience.The main products produced by our factory include:Vertical plastic injection molding machine, Single slide machine,Double slide machine, Bakelite machine,High speed machine,C-type vertical molding machine,etc.The high speed of the machine is mainly reflected in the ability to choose high speed and high pressure for injection when injecting glue. Using an energy storage device, the maximum firing rate can reach 600mm/sec. Rapid injection, precise molding, and short production cycle.
| TFC-55 Technical Parameters |
| ITEMS |
UNIT |
TFC-55 |
| INJECTION UNIT |
| Screw Diameter |
mm |
45 |
| Theoretical Injection Volume |
cm3 |
238 |
| Injection Weight(PS) |
g |
221 |
| oz |
7.8 |
| Max.Injection Pressure |
Mpa |
118 |
| kgf/cm2 |
1209 |
| Screw Speed Rotation |
r.p.m |
0~198 |
| CLAMPING UNIT |
| Clamping Force |
KN(ton) |
539(55) |
| Ejector Force |
KN(ton) |
31.3(3.2) |
| Other |
| System Pressure |
Mpa(kgf/cm2) |
13.7(140) |
| Electric Power |
KW |
11(15) |
15(20) |
| Heater Power |
KW |
5.1 |
| Machine Dimensions |
L*W |
m |
2.8*1.0 |
| H(Excluding shock-absorbing feet) |
m |
2.1 |
| Machine Weight |
ton |
3 |
TAIFU Machinery is a professional manufacturer of vertical injection molding machines integrated with strong capabilities of R&D, manufacturing and services, with more than 15 years manufacturing experience; 100 employees; 15,000 square feet of manufacturing floor spaces and with facility in the Dongguan city, Guangdong province, China. We are certified by ISO9001, CE and patents 20 inventions.
We aims to supply quality products and excellent services to create value for customers on the basis of integrity, innovation, and win-win cooperation. TAIFU Machinery will be your most valuable and reliable partner in business.
We have 15,000 square feet of manufacturing floor space and with facilities in China. All the machines are manufactured by our own employees in our own factory.
- Machine assembly wproshop
- Finished product machine shop
- PHOTOS OF DIFFERENT EXHIBITIONS
We products and delivers more than 2,000 sets of vertical injection molding machines annually. All the machines will be packed well before shipment.
We provide one-stop solutions of plastic injection molding from raw material to automation, trying to create more values for our customers.
For more than 15 years, we have recognized our customers as long-term partners, growing together. Take advantage of this global strength, and grow with us as we grow with you.
There are wide range of vertical plastic injection molding machines (thermoplastic, rubber) we provide, including Rotary table vertical injection molding machine, Bakelite machine, BMC Machine, LSR silicone injection molding machine, C-type vertical injection molding machine, etc. Not only can we provide standard machines, but we are able to also customize machines to meet your unique needs.
Your Professional Vertical Injection Molding Machine Manufacturer-TAIFU
We are ready to provide a well-built, high-performance products. Contact Us Now!
Q1:What are the advantages of C type injection molding machines?
A: The injection base can be raised and lowered with adjustable advance and retreat. It is easy to adjust the center of the die horizontally,and it is fast and convenient to frame the die.
Q2: What are your payment terms?
A:T/T 50% in deposite,50% before departure.
Q3:Do you test all goods before delivery?
Yes, we have 100% testing before delivery.
Q4: What types of products can be produced using a C type injection molding machine?

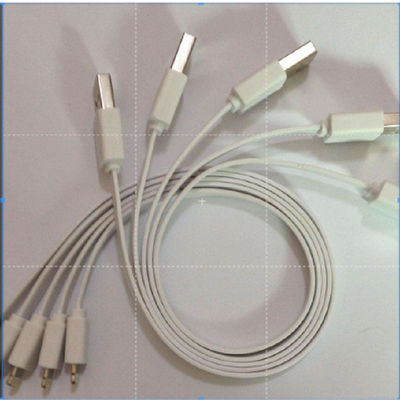

A:The products produced by the C-type machine are mainly plug injection molding, other plugs with tail wires, circuit boards with wiring harnesses, etc.
Q5: How about your delivery time?
A:Generally speaking, it will take 20 to 45 days after receiving the advance payment. The specific delivery time depends on
Regarding your order and quantity.
