120 Ton Lithium-Ion Battery Parts Vertical Two Color Injection Molding Machine
It is available to customize machines to meet your...
TAIFU Machinery is a Taiwanese joint venture with a history of 17 years. It has vertical injection molding machines ranging from 15 tons to 1800 tons. The factory covers an area of 15,000 square meters. It has 157 employees and 54 imported high-precision equipment. It has passed ISO9001 certification and EU CE certification.
The model is specially designed for the production of Lithium-Ion battery cylindrical structural components.
The unique dual-injection system effectively solves the problem of the battery cover requiring two or three injection moldings. This model can be molded in one go, shortening the production cycle by ⅔ and effectively improving production efficiency.
We can customize and develop according to the actual needs of customers and provide the most precise, efficient and economical personalized combination solutions.

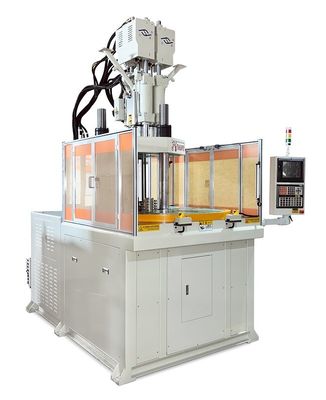

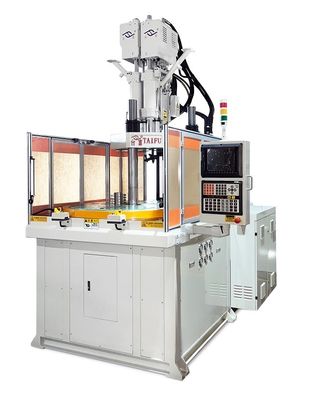

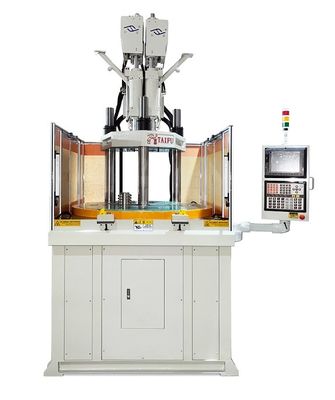

1. Machine Pictures:
2. Sepcifications:
| |
UNIT |
TFV3-120R2-2CN |
INJECTION UNIT |
Screw stroke |
mm |
140 |
140 |
| Screw Diameter |
mm |
20 |
22 |
25 |
20 |
22 |
25 |
| Theoretical Injection Volume |
cm3 |
44 |
53 |
69 |
44 |
53 |
69 |
| Injection Weight(PS) |
g |
41 |
49 |
64 |
41 |
49 |
64 |
| oz |
1.44 |
1.75 |
2.25 |
1.44 |
1.75 |
2.25 |
| Max.Injection Pressure |
Mpa |
417 |
344 |
267 |
417 |
344 |
267 |
| kgf/cm2 |
4253 |
3514 |
2722 |
4253 |
3514 |
2722 |
| Injection Rate |
cm3/s |
44 |
53 |
69 |
44 |
53 |
69 |
| Max Injection Speed |
mm/s |
140 |
140 |
| Screw Speed Rotation |
r.p.m |
10~350 |
10~350 |
CLAMPING UNIT |
Clamping Force |
kN(tf) |
1176(120) |
| Number of turntable stations |
mm |
2 |
| (D) Rotary Table Size |
mm |
φ1200 |
| Top bar spacing |
mm |
100 |
| Ejector Distance |
mm |
100 |
| Ejector Force |
kN(tf) |
45(4.6) |
| OTHERS |
System Pressure |
Mpa(kgf/cm2) |
13.7(140) |
| Oil Tank Capacity |
L |
380 |
| Electric Power |
KW |
11+11 |
| Heater Power |
KW |
5.5+5.5 |
| Machine Dimensions |
L*W |
m |
2.5*2.0 |
| H |
m |
Min:3.2(Max:3.9) |
| Machine Weight |
ton |
7.8 |
3. Machine Features:
- Three sets of independent hydraulic control systems allow the two sets of injection mechanisms to operate independently and synchronously, the ejection mechanism can also operate independently and synchronously, and the molding parameters can be set independently, effectively ensuring that the stability of the machine and production efficiency are simultaneously improved.
- The nozzle center distance design is 155mm in line with industry standards and is suitable for the versatility of molds in this industry.

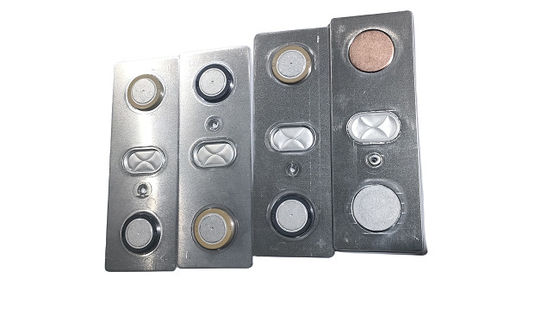

4. Applications:
5. Photo Gallery:
OUR WORKSHOP
MACHINING CENTER
QUALITY IINSPECTION CENTER
DELIVERY
OUR PARTER
6. CERTIFICATION:
7. FAQ:
Q: In what fields are high-speed injection molding machines used?
A: High-speed machines are widely used in many fields such as automobiles, electronics, home appliances, medical care, toys, etc.
Q: What are the advantages of using high-speed machines?
A: It can improve production efficiency, reduce production costs and improve product quality. At the same time, its high precision and stability can also meet the high requirements of the manufacturing industry for plastic products.
Q: How long is the delivery time?
A: Small machines are in stock, while standard ones take 7-35 working days, depending on customization.
Q: What's the warranty period?
A: Our warranty period is one year and we provide you with 24-hour after-sales service.
Q: What are your payment terms?
A: We offer flexible payment options, typically a 50% advance and 50% balance before shipment, or L/C at sight for added security.
