Highly Accurate And Durable 55Ton Vertical Plastic High Speed Injection Molding Machine
Taifu Machinery Factory is a manufacturer specializing in the production of vertical injection molding machines. We have passed ISO9001 quality system certification and CE certification, and is a high-tech enterprise. We have manufactured large quantities of high-precision injection molding machines, which have received unanimous praise from customers in terms of speed, safety, durability and stability.
The high speed of the high-speed machine is mainly reflected in the ability to choose high speed and high pressure for injection when injecting glue. Using energy storage device, the maximum injection speed can reach 600mm/sec. Rapid injection, precise molding and short production cycle.
The high-speed machine adopts imported hydraulic parts and electronic control, which has fast response, high precision, stability and durability; it is the best choice for ultra-thin molded products with a thickness of 0.1mm or more.
Sepcifications:
| Specification Model |
Unit |
Parameter |
| Injection Unit |
Screw Diameter |
mm |
Ф22 |
Ф26 |
| Theoretical Injection Volume |
cm3 |
38 |
53 |
| Injection Weight(PS) |
g(oz) |
35(1.23) |
49(1.72) |
| Max.Injection Pressure |
Mpa(kgf/cm2) |
181(1851) |
130(1325) |
| Injection Rate |
cm3/s |
119 |
167 |
| Injection Speed |
mm/s |
315 |
| Screw Speed Rotation |
r.p.m |
0-350 |
| Nozzle Out From Platens |
mm |
≥45 |
| Clamping Unit |
Clamping Force |
KN(tf) |
539(55) |
| Clamping Stroke |
mm |
250 |
| Min.Mold Thickness |
mm |
180(240) |
| Max.Opening |
mm |
380(440) |
| (L*W)Distance Between Tie Bars |
mm |
445*255 |
| (L*W)Max. Mould Size |
mm |
425*380 |
| (L*W)尺寸Platen Size |
mm |
580*400 |
| Ejector Distance |
mm |
40 |
| Others |
Ejector Force |
KN(tf) |
17.2(1.75) |
| System Pressure |
Mpa(kgf/cm2) |
13.7(140) |
| Oil Tank Capacity |
L |
140 |
| Electric Power |
KW(HP) |
15(20) |
| Heater Power |
KW |
2.2 |
| Machine Size |
L*W*H |
m |
1.9*1.3*3.1 |
| Machine Weight |
tf |
1.7 |

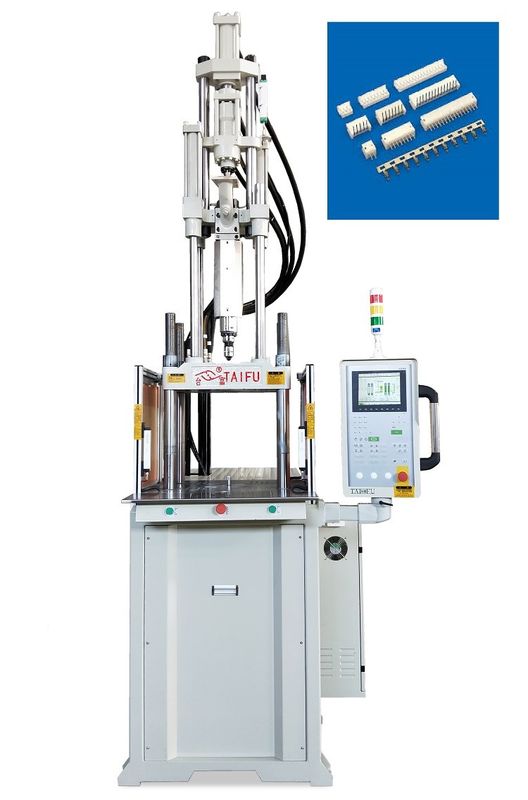

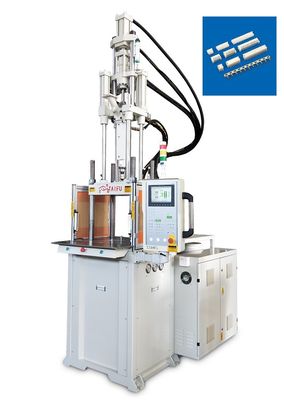

Machine Pictures:

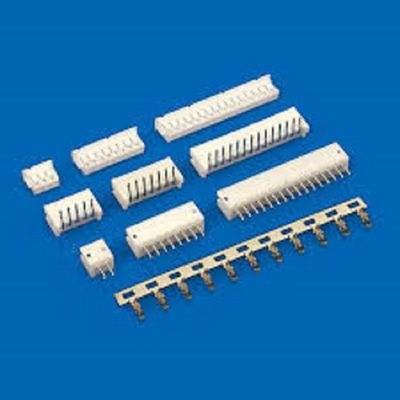

Applications:
Why Choose Us?
- Imported parts, high precision technology.
- High-speed, high-pressure injection, higher precision.
- High-efficiency machines increase productivity.
- Professional team provides guarantee for pre-sales and after-sales services.
FAQ:
Q: In what fields are high-speed injection molding machines used?
A: High-speed machines are widely used in many fields such as automobiles, electronics, home appliances, medical care, toys, etc.
Q: What are the advantages of using high-speed machines?
A: It can improve production efficiency, reduce production costs and improve product quality. At the same time, its high precision and stability can also meet the high requirements of the manufacturing industry for plastic products.
Q: How long is the delivery time?
A: Small machines are in stock, while standard ones take 7-35 working days, depending on customization.
Q: What's the warranty period?
A: Our warranty period is one year and we provide you with 24-hour after-sales service.
Q: What are your payment terms?
A: We offer flexible payment options, typically a 30% advance and 70% balance before shipment, or L/C at sight for added security.
