Delicate Durable And Efficient 55 Ton Injection Molding Machine With C Type Easy Operation
Taifu Machinery Co., Ltd. is a factory specializing in the planning, design, manufacturing, sales and service of vertical injection molding machines. Our company has passed ISO9001 quality system certification, CE certification, and has a strong business lineup and a technologically advanced R&D team.
The machine adopts vertical column-free mold clamping and vertical injection. At the same time, there are open spaces on three sides, making the operation unobstructed and making it easier to embed and remove long products. Scientific work surface height makes operation more comfortable. It can also be equipped with single slide plate, double slide plate or turntable type according to customer needs, and can be suitable for the production of British, American, European, Australian and other power cord plugs.
Speciafication
| |
UNIT |
TFC-55 |
| Injection Unit |
Screw stroke |
mm |
150 |
| Screw Diameter |
mm |
40 |
| Theoretical Injection Volume |
cm3 |
188 |
| Injection Weight(PS) |
g |
175 |
| oz |
6.18 |
| Max.Injection Pressure |
Mpa |
146 |
| kgf/cm2 |
1492 |
| Injection Rate |
cm3/s |
113 |
| Injection Speed |
mm/s |
90 |
| Nozzle center height |
mm |
150±25 |
| Distance from nozzle to mold center |
mm |
75 |
| Screw Speed Rotation |
r.p.m |
10~240 |
| Clamping Unit |
Clamping Force |
KN(ton) |
539(55) |
| Clamping Stroke |
mm |
200 |
| Min.Mold Thickness |
mm |
175 |
| Max.Opening |
mm |
375 |
| (L*W)Max.Mould Size |
mm |
480*330 |
| (L*W)Platen Size |
mm |
500*335 |
| Ejector Distance |
mm |
50 |
| Ejector Force |
KN(ton) |
45(4.6) |
| Others |
System Pressure |
Mpa(kgf/cm2) |
13.7(140) |
| Oil Tank Capacity |
L |
160 |
| Electric Power |
KW |
7.5 |
| Heater Power |
KW |
8.4 |
| Cooling water capacity |
L/min |
30 |
| Machine Dimensions |
L*W*H |
m |
2.6*1.0*2.1 |
| Machine Weight |
ton |
3 |

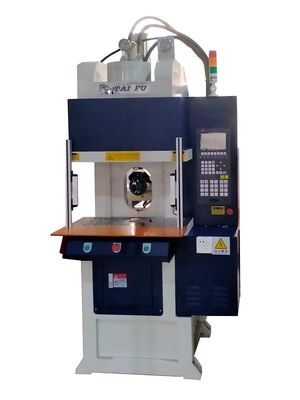

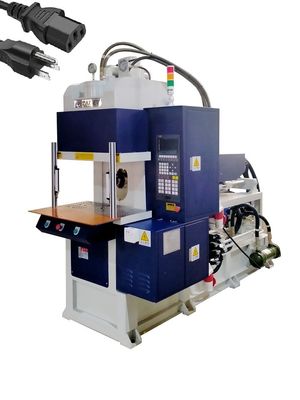

Machine Pictures:

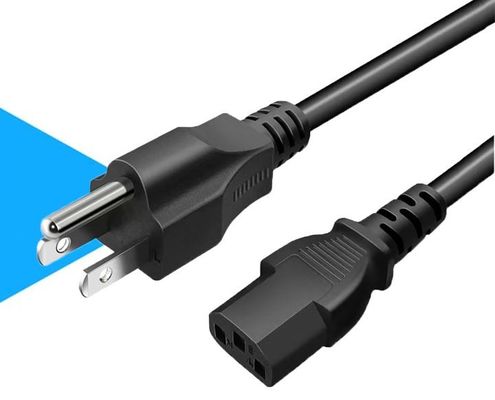

Applications:
Why choose us?
1. Efficient and stable, improving production capacity and efficiency.
2. Excellent quality and trustworthy performance.
3. Easy to operate, easy to use and worry-free.
4. Comprehensive after-sales service ensures smooth production.
5. FAQ:
Q: How long is your delivery time?
A: Small machines are in stock. Generally, the delivery time of standard machines is 7~35 working days. For customized machines, it will be 40~60 working days.
Q: How long is the warranty time?
A: 1 year warranty for all the machines. We provide free parts for any not man-made damages and quality problems. Our technical support will accompany with you during the machines' lifetime. If machines are operated properly, it can service more than 20 years.
Q: What are your terms of payment?
A: 30%TT in advance, 70% balance before shipment. or L/C at sight.
Q: Can I customize the machine to meet my specific needs?
A: Of course! We offer customization services and can design and build machines to your specific needs. Whether it is the specifications, functions or appearance of the machine, we can customize it according to your requirements.
Q: If I encounter problems during use, how should I contact your company's technical support?
A: If you encounter any problems during use, you can contact us at any time through the contact information on our official website or customer service hotline.
If you're keen on our machines, feel free to reach out and get in touch with us!
