Efficient 55Ton Vertical Plastic High Speed Injection Molding Machine With Outstanding Quality

Efficient  55Ton Vertical Plastic High Speed Injection Molding Machine  With Outstanding Quality
Efficient  55Ton Vertical Plastic High Speed Injection Molding Machine  With Outstanding Quality
Efficient  55Ton Vertical Plastic High Speed Injection Molding Machine  With Outstanding Quality Efficient  55Ton Vertical Plastic High Speed Injection Molding Machine  With Outstanding Quality Efficient  55Ton Vertical Plastic High Speed Injection Molding Machine  With Outstanding Quality Efficient  55Ton Vertical Plastic High Speed Injection Molding Machine  With Outstanding Quality

Large Image :  Efficient 55Ton Vertical Plastic High Speed Injection Molding Machine With Outstanding Quality

Product Details:
Place of Origin: Dongguan, China
Brand Name: TAIFU
Certification: CE, ISO9001
Model Number: TFV4-55-SP
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: All the machines are fixed and well packaged in the plywood cases.
Delivery Time: Negotiable
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 220 sets/month

Efficient 55Ton Vertical Plastic High Speed Injection Molding Machine With Outstanding Quality

Description
Product Name: Efficient 55Ton Vertical Plastic High Speed Injection Molding Machine With Outstanding Quality Model: TFV4-55-SP
After-sales Service Provided: 12 Months Usage: Plastic Connector
Advantage: High Precision Max Injection Rate: 600mm³ /s
Max Clamping Force: 55 Tons Color: White
Highlight:

Efficient Vertical Injection Molding Machine

,

55Ton Vertical Injection Molding Machine

Efficient 55Ton Vertical Plastic High Speed Injection Molding Machine Outstanding Quality



TAIFU vertical high-speed injection molding machine Using imported hydraulic parts and electronic control, it has fast response, high precision, durability and stability. Its high speed is mainly reflected in the ability to choose high speed and high pressure for injection when injecting glue, resulting in precise molding and short production cycle.



In the fierce market competition, Taifu Machinery Co.,Ltd. will continue to adhere to the human concept of "treat customers treat employees". We put customers' satification as the core, "quality, interity, profession, innovation" as business principle, and continue to provide new and old customers for more convenience.



Main products: Vertical plastic injection molding machine(the moplastic, rubber), Vertical plastic injection molding machine, Single slide machine, Double slide machine, Bakelite machine, C-type vertical molding machine, Horizontal machine, etc.





Sepcifications:



Specification Model Unit Parameter
Injection Unit Screw Diameter mm Ф22 Ф26
Theoretical Injection Volume cm3 38 53
Injection Weight(PS) g(oz) 35(1.23) 49(1.72)
Max.Injection Pressure Mpa(kgf/cm2) 181(1851) 130(1325)
Injection Rate cm3/s 119 167
Injection Speed mm/s 315
Screw Speed Rotation r.p.m 0-350
Nozzle Out From Platens mm ≥45
Clamping Unit Clamping Force KN(tf) 539(55)
Clamping Stroke mm 250
Min.Mold Thickness mm 180(240)
Max.Opening mm 380(440)
(L*W)Distance Between Tie Bars mm 445*255
(L*W)Max. Mould Size mm 425*380
(L*W)尺寸Platen Size mm 580*400
Ejector Distance mm 40
Others Ejector Force KN(tf) 17.2(1.75)
System Pressure Mpa(kgf/cm2) 13.7(140)
Oil Tank Capacity L 140
Electric Power KW(HP) 15(20)
Heater Power KW 2.2
Machine Size L*W*H m 1.9*1.3*3.1
Machine Weight tf 1.7

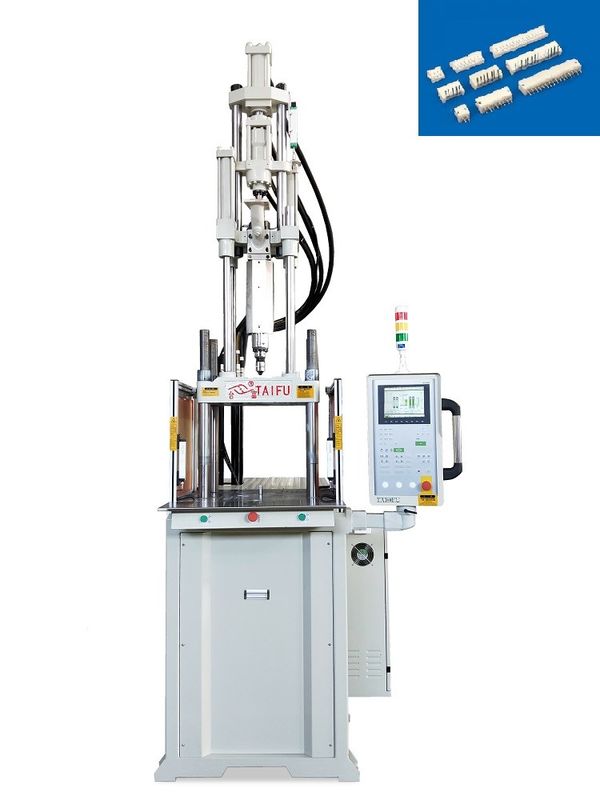

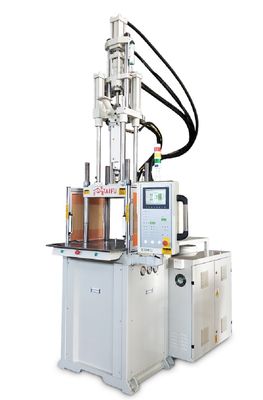

Machine Pictures:



Efficient  55Ton Vertical Plastic High Speed Injection Molding Machine  With Outstanding Quality 0Efficient  55Ton Vertical Plastic High Speed Injection Molding Machine  With Outstanding Quality 1

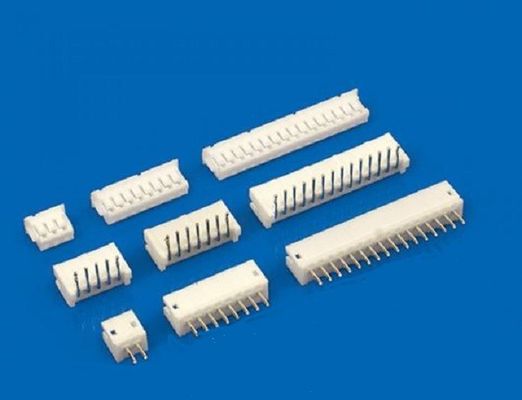

 Applications:



Efficient  55Ton Vertical Plastic High Speed Injection Molding Machine  With Outstanding Quality 2



Why Choose Us?

  1. Masterful craftsmanship for exceptional quality.
  2. Sturdy and durable for stable performance.
  3. Efficient operation for increased productivity.
  4. Dedicated team for full support throughout.





FAQ:

Q: Why choose a high-speed vertical injection molding machine for connectors?

A: Our machine is optimized for connector production, offering faster speeds and precise control, resulting in increased efficiency and qualification rates.

Q: Are you a manufacturer or trader?

A: We are a manufacturer based in Dongguan, China's industrial hub, ensuring quality and customization.

Q: How long is the delivery time?

A: Small machines are in stock, while standard ones take 7-35 working days, depending on customization.

Q: What's the warranty period?

A: We provide a 1-year warranty, covering non-man-made damages. Our technical support is available throughout the machine's lifespan.

Q: What are your payment terms?

A: We offer flexible payment options, typically a 30% advance and 70% balance before shipment, or L/C at sight for added security.



For any inquiries or interest in our machines, feel free to reach out to us! We're here to assist.
