55 Ton Double Slide Vertical Injection Molding Machine Precision Workhorse
Taifu Machinery Co., Ltd. is a manufacturer specializing in the manufacture of vertical injection molding machines. Our products have passed the international ISO9001 quality system and CE certification, and have more than 20 years of R&D and manufacturing experience.
The injection molding machines we develop and produce cover a very wide range: the clamping force ranges from 15 tons to 1,800 tons, and the injection molding force ranges from 3 grams to 10,000 grams. The company's products are widely used in plastic production in various industries, such as: auto parts manufacturing, packaging supplies, medical supplies, 3C electronics and other industries.
Sepcifications:
| |
UNIT |
TFV4-35SD |
TFV4-55SD |
TFV4-85SD |
| INJECTION UNIT |
Screw stroke |
mm |
140 |
140 |
140 |
| Screw Diameter |
mm |
22 |
26 |
28 |
28 |
30 |
32 |
32 |
36 |
40 |
| Theoretical Injection Volume |
cm3 |
53 |
74 |
86 |
86 |
99 |
113 |
113 |
143 |
176 |
| Injection Weight(PS) |
g |
49 |
69 |
80 |
80 |
92 |
105 |
105 |
133 |
164 |
| oz |
1.75 |
2.44 |
2.83 |
2.83 |
3.25 |
3.69 |
3.69 |
4.67 |
5.77 |
| Max.Injection Pressure |
Mpa |
248 |
178 |
153 |
213 |
185 |
163 |
228 |
180 |
146 |
| kgf/cm2 |
2531 |
1812 |
1563 |
2170 |
1890 |
1661 |
2331 |
1842 |
1492 |
| Injection Rate |
cm3/s |
44 |
62 |
72 |
65 |
74 |
84 |
100 |
126 |
156 |
| Max Injection Speed |
mm/s |
117 |
105 |
124 |
| Screw Speed Rotation |
r.p.m |
10~300 |
10~300 |
10~280 |
| Positioning ring diameter |
mm |
100 |
110 |
120 |
| Nozzle Out From Platens |
mm |
≥45 |
≥45 |
≥45 |
| CLAMPING UNIT |
Clamping Force |
KN(ton) |
343(35)/441(45) |
539(55) |
833(85)/980(100) |
| Clamping Stroke |
mm |
200 |
200 |
250 |
| Min.Mold Thickness |
mm |
150(210) |
180(240) |
230(310) |
| Max.Opening |
mm |
350(410) |
380(440) |
480(560) |
| (L*W)Distance Between Tie Bars |
mm |
410*220 |
445*255 |
520*350 |
| (L*W)Max.Mould Size |
mm |
340*340 |
380*380 |
500*480 |
| (L*W)Skate size |
mm |
730*360 |
915*400 |
1120*500 |
| QTY of Ejector |
pcs |
1 |
1 |
3 |
| Top bar spacing |
mm |
_ |
_ |
80 |
| Ejector Distance |
mm |
100 |
100 |
100 |
| Ejector Force |
KN(ton) |
26.5(2.7) |
26.5(2.7) |
26.5(2.7) |
| OTHERS |
System Pressure |
Mpa(kgf/cm2) |
13.7(140)/17.2(175) |
13.7(140) |
13.7(140)/17.2(175) |
| Oil Tank Capacity |
L |
130 |
140 |
280 |
| Electric Power |
KW |
7.5/11 |
11 |
15+2.2/18+2.2 |
| Heater Power |
KW |
3.6 |
5.5 |
7.0 |
| Machine Dimensions |
L*W*H |
m |
1.6*1.2*2.2 |
1.8*1.3*2.32 |
2.1*1.9*3.5 |
| Cooling water capacity |
L/min |
25 |
35 |
40 |
| Work Table Height |
mm |
990+(60) |
1088+(60) |
1140+(70) |
| Machine Weight |
ton |
1.7 |
2.2 |
4.3 |
Features:
1. The slide plate and base plate are made of cast iron, with steel strips isolating the connecting parts and lubrication oil holes, greatly reducing slide plate wear and deformation, increasing its lifespan and accuracy
2. Vertical injection, Chinese/English electronic control, full-screen display, dual-ratio pressure and flow control, optimized mechanical structure, smooth operation, high speed
3. Diversified oil circuit system designs (semi-closed, fully closed, servo, or high-speed injection) can be tailored to customer needs, with expandable program design and connection to automatic embedding and extraction equipment, achieving fully automatic operation.

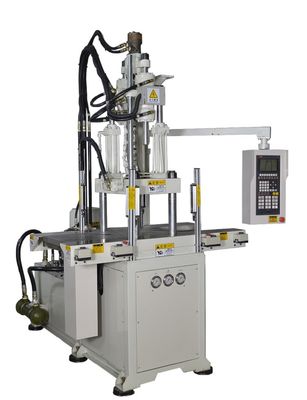

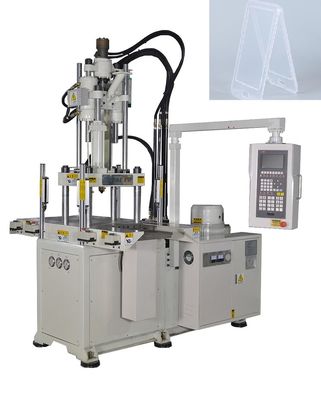

Machine Pictures:

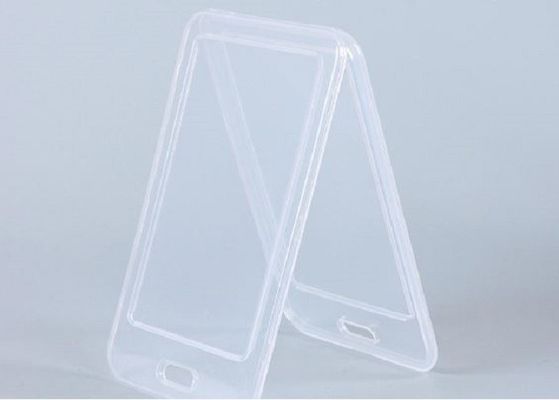

Applications:
Why Choose Us?
1. Top-tier quality with the most competitive pricing.
2. Skilled technical team for precision production.
3. Tailored designs and manufacturing solutions.
4. Exceptional service, from consultation to post-purchase support.
FAQ:
Q: Are you a manufacturer or trader?
A: We are a manufacturer based in Dongguan, China's largest industrial hub. All our machines are produced in our factory by our skilled team.
Q: What's your delivery time?
A: Standard machines take 7~35 working days, while customized ones take 40~60 days. Stock machines are available for immediate delivery.
Q: What's your payment policy?
A: We require a 30% advance payment via TT, with the remaining 70% due before shipment. Alternatively, we accept L/C at sight.
Q: How long is the warranty period?
A: We provide a 1-year warranty for all machines. Any non-man-made damage or quality issues will be covered with free parts. Our technical support is available throughout the machine's lifespan. With proper use, our machines can last over 20 years.
Q: What's the difference between single and double molding?
A: Single-cavity molds produce one product per cycle, while multi-cavity molds create multiple parts. Once the mold is ready, the injection molding process is easily replicated in six steps.
