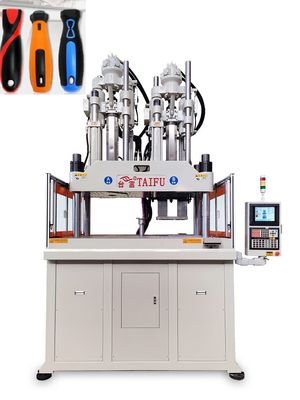

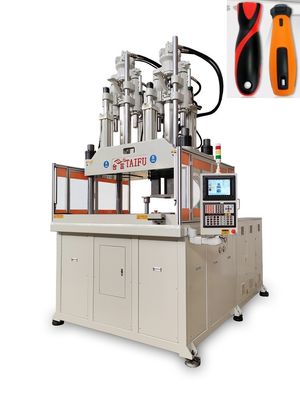

High Quality Precision Double Colours Shot Injection Molding Machines Machine DIY Casting Melting Mold

High Quality Precision Double Colours Shot Injection Molding Machines Machine DIY Casting Melting Mold
High Quality Precision Double Colours Shot Injection Molding Machines Machine DIY Casting Melting Mold High Quality Precision Double Colours Shot Injection Molding Machines Machine DIY Casting Melting Mold High Quality Precision Double Colours Shot Injection Molding Machines Machine DIY Casting Melting Mold

Large Image :  High Quality Precision Double Colours Shot Injection Molding Machines Machine DIY Casting Melting Mold

Product Details:
Place of Origin: Guangdong, China
Brand Name: TAIFU
Certification: CE, ISO9001
Model Number: TFV4-170ZT-2C
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: All the machines are fixed and well packaged in the plywood cases.
Delivery Time: Negotiable
Payment Terms: L/C, T/T
Supply Ability: 220 sets per month
Contact Now

High Quality Precision Double Colours Shot Injection Molding Machines Machine DIY Casting Melting Mold

Description
Product Name: High Quality Precision Double Colours Shot Injection Molding Machines Machine DIY Casting Melting Mold Model: TFV4-170ZT-2C
Function: Plastic Injection Molding Machine Application: Multi-color Plastic Product

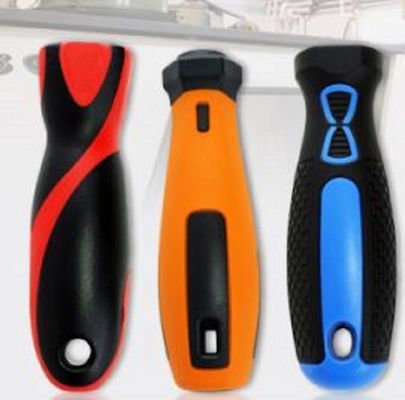

Used For: Plastic Handle Key Word: High Productivity
After-sales Service: Provided Warranty: One Year
Highlight:

Melting Mold Injection Molding Machines

,

DIY Casting Injection Molding Machines

,

Double Colours Injection Molding Machines

High Quality Double Colours Shot Injection Molding Machines Machine DIY Casting Melting Mold



Taifu Machinery Co., Ltd. specializes in the planning, design, manufacturing, sales and service of vertical plastic injection molding machines. The company has passed ISO9001 quality system certification, CE certification.







Machine Technical Parameters



ITEM UNIT TFV4-90R2-2C TFV4-120ZT-2C TFV4-170ZT-2C
INJECTION UNIT
Screw stroke mm 100 140 140
Screw Diameter mm 18 22 28 22 26 28 28 30 32
Theoretical Injection Volume cm3 25 38 62 53 74 86 86 99 113
Injection Weight(PS) g 24 35 57 49 69 80 80 92 105
oz 0.83 1.25 2.02 1.75 2.44 2.83 2.83 3.25 3.69
Max.Injection Pressure Mpa 343 230 142 248 178 153 213 185 163
kgf/cm2 3500 2343 1446 2531 1812 1563 2170 1890 1661
Screw Speed Rotation r.p.m 10~350 10~300 10~300
Nozzle Out From Platens mm ≥45 ≥45 ≥45
Heater Power KW 3.6 3.6 5.5
CLAMPING UNIT
Optional shooting platform system type name A/B/C A/B/C A/B/C/D
Clamping Force KN(ton) 882((90(45*2)) 1176(120(60*2)) 1666(170(85*2))
Clamping Stroke mm 250 280 280
Min.Mold Thickness mm 230(310) 250(350) 280(380)
Max.Opening mm 480(560) 530(630) 560(660)
(L*W)Max.Mould Size mm 310*310 350*350 420*420
(D) Rotary Table Size mm φ910 φ1010 φ1200
Ejector Distance mm 45 60 90
Ejector Force KN(ton) 17.2(1.75) 17.2(1.75) 26.5(2.7)
OTHERS
System Pressure Mpa(kgf/cm2) 13.7(140) 13.7(140) 13.7(140)
Oil Tank Capacity L 330 460 650
Electric Power KW 7.5+7.5 11+11 15+15
Machine Dimensions L*W m 2.1*1.8 2.4*2.2 2.6*2.4
H(Excluding shock-absorbing feet) m Min:2.5(Max:3.4) Min:2.8(Max:3.6) Min:3.2(Max:4.1)
Cooling water capacity L/min 60 60 70
Height of Workbench+(Excluding shock-absorbing feet) mm 1310+(60) 1450+(80) 1500+(80)
Machine Weight ton 5.2 7.3 9.5



Sepcifications:

High Quality Precision Double Colours Shot Injection Molding Machines Machine DIY Casting Melting Mold 0High Quality Precision Double Colours Shot Injection Molding Machines Machine DIY Casting Melting Mold 1





Application







Why choose us?

1.  Top-notch quality & competitive pricing.

2.  Skilled technical team for production excellence.

3.  Tailored designs & productions to meet your needs.

4.  Exceptional pre & post-sales service.



FAQ



Q1: Do you inspect all products before shipping?



   A: Yes, 100% inspection is our standard.



Q2: What payment methods do you offer?


  A: Primarily T/T 100% advance, but we are open to discussing other options.



Q3: Do you provide OEM services?



 A: Yes, we offer OEM & ODM service with customized branding.



Q4: How about packaging & shipping?



  A: Secure plastic-covered & carton packaging. Customized as per request.



Q5: What is your deliver time?



  A: Typically 20-45 days after advance payment. Exact time depends on order complexity & quantity.
