High Quality Durable And Affordable 120 Ton Vertical Double Color Injection Molding Machine Used For Foot Brush

High Quality Durable And Affordable 120 Ton Vertical Double Color Injection Molding Machine Used For Foot Brush
High Quality Durable And Affordable 120 Ton Vertical Double Color Injection Molding Machine Used For Foot Brush
High Quality Durable And Affordable 120 Ton Vertical Double Color Injection Molding Machine Used For Foot Brush High Quality Durable And Affordable 120 Ton Vertical Double Color Injection Molding Machine Used For Foot Brush High Quality Durable And Affordable 120 Ton Vertical Double Color Injection Molding Machine Used For Foot Brush

Large Image :  High Quality Durable And Affordable 120 Ton Vertical Double Color Injection Molding Machine Used For Foot Brush

Product Details:
Place of Origin: Dongguan，China
Brand Name: TAIFU
Certification: CE, ISO9001
Model Number: TFV4-120R2-2C-H
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: All the machines are fixed and well packaged in the plywood cases.
Delivery Time: Negotiable
Payment Terms: L/C, T/T, D/A, D/P, Western Union
Supply Ability: 210 sets per month
Contact Now

High Quality Durable And Affordable 120 Ton Vertical Double Color Injection Molding Machine Used For Foot Brush

Description
Product Name: High Quality, Durable And Affordable 120 Ton Vertical Double Color Injection Molding Machine Used For Foot Brush Model: TFV4-120R2-2C-H
Used For: Foot Brush Function: Plastic Injection Molding Machine
Application: Multi-color Plastic Product Key Word: High Productivity
After-sales Service: Provided Warranty: 12 Months
Highlight:

Double Color Injection Molding Machine

,

120 Ton Vertical Injection Molding Machine

,

Foot Brush Injection Molding Machine

120Ton Vertical Double Color Injection Molding Machine Used For Sharpener



Taifu vertical two-color turntable injection molding machine is specially designed for two-color and two-material injection molding. It is equipped with two sets of injection devices with independent hydraulic oil circuits. Two molds can be installed on the upper template and the turntable.



During molding, the turntable rotates 180° forward and reverse alternately to complete injection molding of two colors and two materials. It can also be used with a turret to practice automated production.



The machine is equipped with a high-performance control system to provide a strong guarantee for high-quality injection molding accuracy and stability. It is now widely used in the auto parts and new energy industries.



1.Machine Technical Parameters



ITEM UNIT TFV4-90R2-2C TFV4-120ZT-2C TFV4-170ZT-2C
INJECTION UNIT
Screw stroke mm 100 140 140
Screw Diameter mm 18 22 28 22 26 28 28 30 32
Theoretical Injection Volume cm3 25 38 62 53 74 86 86 99 113
Injection Weight(PS) g 24 35 57 49 69 80 80 92 105
oz 0.83 1.25 2.02 1.75 2.44 2.83 2.83 3.25 3.69
Max.Injection Pressure Mpa 343 230 142 248 178 153 213 185 163
kgf/cm2 3500 2343 1446 2531 1812 1563 2170 1890 1661
Screw Speed Rotation r.p.m 10~350 10~300 10~300
Nozzle Out From Platens mm ≥45 ≥45 ≥45
Heater Power KW 3.6 3.6 5.5
CLAMPING UNIT
Optional shooting platform system type name A/B/C A/B/C A/B/C/D
Clamping Force KN(ton) 882((90(45*2)) 1176(120(60*2)) 1666(170(85*2))
Clamping Stroke mm 250 280 280
Min.Mold Thickness mm 230(310) 250(350) 280(380)
Max.Opening mm 480(560) 530(630) 560(660)
(L*W)Max.Mould Size mm 310*310 350*350 420*420
(D) Rotary Table Size mm φ910 φ1010 φ1200
Ejector Distance mm 45 60 90
Ejector Force KN(ton) 17.2(1.75) 17.2(1.75) 26.5(2.7)
OTHERS
System Pressure Mpa(kgf/cm2) 13.7(140) 13.7(140) 13.7(140)
Oil Tank Capacity L 330 460 650
Electric Power KW 7.5+7.5 11+11 15+15
Machine Dimensions L*W m 2.1*1.8 2.4*2.2 2.6*2.4
H(Excluding shock-absorbing feet) m Min:2.5(Max:3.4) Min:2.8(Max:3.6) Min:3.2(Max:4.1)
Cooling water capacity L/min 60 60 70
Height of Workbench+(Excluding shock-absorbing feet) mm 1310+(60) 1450+(80) 1500+(80)
Machine Weight ton 5.2 7.3 9.5

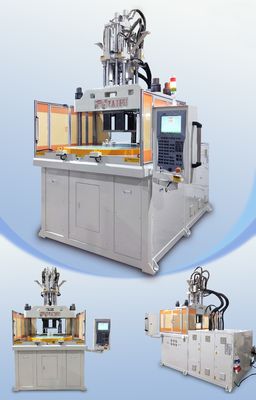

2.Machine Pictures

High Quality Durable And Affordable 120 Ton Vertical Double Color Injection Molding Machine Used For Foot Brush 0





3.Application

High Quality Durable And Affordable 120 Ton Vertical Double Color Injection Molding Machine Used For Foot Brush 1





Why choose us?

1. Best product quality and most competitive price.
2. Experienced technical personnel in production.
3. Customized design and production.
4. Excellent pre-sales and after-sales services.


FAQ
Q1: Do you test all goods before delivery?
Yes, we have 100% testing before delivery


Q2: What are your payment terms?
T/T 30% in deposite,70% before departure.


Q3: Packaging and shipping?
The spool is plastic-covered inside and cartoned outside. Or according to your request.



Q4: What types of products can be produced using a vertical injection molding machine?
Vertical injection molding machines are commonly used for producing products such as insert-molded components, overmolded products, vertical overmolded cables and connectors, and small precision parts.


Q5: How about your delivery time?
Generally speaking, it will take 20 to 45 days after receiving the advance payment. The specific delivery time depends on
Regarding your order and quantity.



If you are interested in it, please contact me without hesitation!
