120 Ton Power Cord Vertical Injection Molding Machine With Double Slide
It is available to customize machines to meet your...
Taifu vertical injection molding machine is known for the quality, reliability and proven performance, allowing for safe and easy handling and extremely high operating safety.
Our machines are widely applied in the field of injection overmoulding, multi-colors injection moulding, multi-components injection moulding, high-precision injection moulding, thermosetting injection moulding and liquid silicone injection moulding.
There are various machine models we have C-45/55/85/120
We can customize and develop according to the actual needs of customers and provide the most precise, efficient and economical personalized combination solutions.
1. Sepcifications:
| |
UNIT |
TFC-120 |
TFC-120S |
TFC-120SD |
TFC-120R2 |
| INJECTION UNIT |
|
|
HZ12 |
| Screw stroke |
mm |
260 |
| Screw Diameter |
mm |
55 |
60 |
65 |
70 |
| Theoretical Injection Volume |
cm3 |
618 |
735 |
863 |
1001 |
| Injection Weight(PS) |
g |
574 |
684 |
802 |
931 |
| oz |
20.26 |
24.12 |
28.30 |
32.82 |
| Max.Injection Pressure |
Mpa |
171 |
144 |
123 |
106 |
| kgf/cm2 |
1749 |
1470 |
1253 |
1080 |
| Injection Rate |
cm3/s |
166 |
198 |
232 |
269 |
| Injection Speed |
mm/s |
70 |
| Nozzle Center Height |
mm |
180±30 |
| Distance from Nozzle to Mold Center |
mm |
100 |
| Screw Speed Rotation |
r.p.m |
10~280 |
| CLAMPING UNIT |
Clamping Force |
KN(ton) |
1176(120) |
| Clamping Stroke |
mm |
300 |
| Min.Mold Thickness |
mm |
200 |
| Max.Opening |
mm |
500 |
| (L*W)Max.Mould Size |
mm |
680*410 |
580*540 |
600*540 |
360*360 |
| Platen Size |
mm |
700*420 |
600*560 |
1290*560 |
Ф1010 |
| Ejector Distance |
mm |
100 |
100 |
| Ejector Force |
KN(ton) |
45(4.6) |
| OTHERS |
System Pressure |
Mpa(kgf/cm2) |
13.7(140) |
| Oil Tank Capacity |
L |
350 |
| Electric Power |
KW |
18.7 |
18.7+2.2 |
| Heater Power |
KW |
11.3 |
| Cooling water capacity |
L/min |
50 |
| Machine Dimensions |
L*W |
m |
3.5*1.3 |
3.7*1.5 |
3.5*2.2 |
3.6*1.5 |
| H |
m |
2.7 |
2.8 |
2.8 |
2.9 |
| Machine Weight |
ton |
6.9 |
7.1 |
7.4 |
8.6 |
2. Features:
-
The column-free design, open space on three sides, and unobstructed operation make it easier to embed and remove long-shaped products.
-
It is commonly used in the production of UL,CCC, CE, SSA, GS, BS and PSE power plugs
-
The scientific workbench height conforms to "ergonomics", making employees more comfortable to operate.

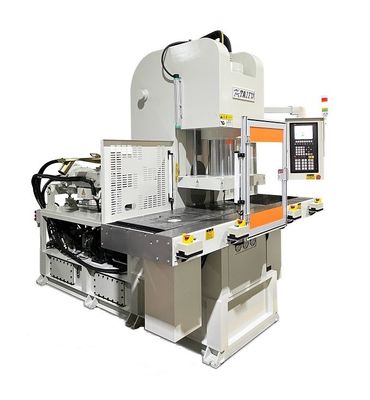

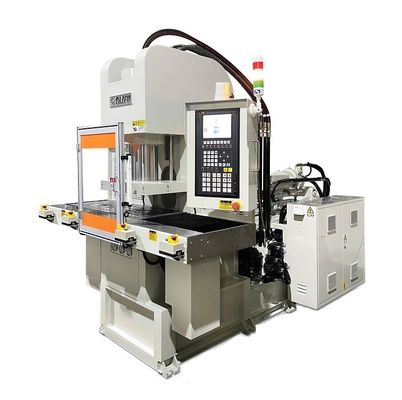

3. Machine Pictures:
4. Applications:
5. FAQ:
Q: Why is the C-type more suitable for producing plugs?
A: First of all, because it has no guide posts, saves space, facilitates automated feeding production, and saves labor costs, thereby increasing production efficiency and reducing costs. What's more important is that it can be used in the production of other products, such as wire products, data cables, computer cables, and is widely used.
Q: Are you a trading company or manufacturer?
A: We are a factory located in Dongguan city-the largest industrial manufacturing area in China. All the machines are manufactured by our own employees in our own factory.
Q: How long is your delivery time?
A: Small machines are in stock. Generally, the delivery time of standard machines is 7~35 working days. For customized machines, it will be 40~60 working days.
Q: How long is the warranty time?
A: 1 year warranty for all the machines. We provide free parts for any not man-made damages and quality problems. Our technical support will accompany with you during the machines' lifetime. If machines are operated properly, it can service more than 20 years.
Q: What are your terms of payment?
A: 30%TT in advance, 70% balance before shipment. or L/C at sight.
