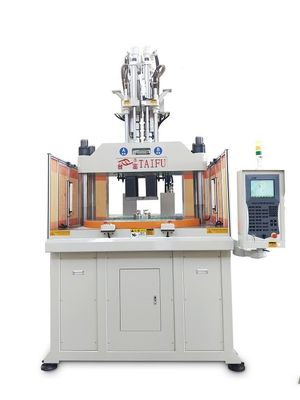

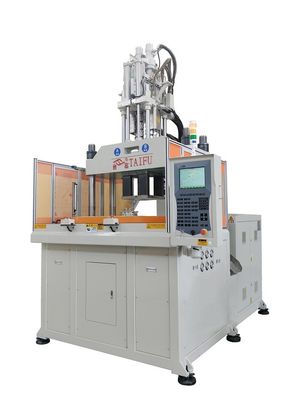

Two-Color PVC/TPU Upper Making Machine Vertical Injection Molding Machine

Two-Color  PVC/TPU Upper Making Machine Vertical  Injection Molding Machine
Two-Color  PVC/TPU Upper Making Machine Vertical  Injection Molding Machine
Two-Color  PVC/TPU Upper Making Machine Vertical  Injection Molding Machine Two-Color  PVC/TPU Upper Making Machine Vertical  Injection Molding Machine Two-Color  PVC/TPU Upper Making Machine Vertical  Injection Molding Machine Two-Color  PVC/TPU Upper Making Machine Vertical  Injection Molding Machine

Large Image :  Two-Color PVC/TPU Upper Making Machine Vertical Injection Molding Machine

Product Details:
Place of Origin: China
Brand Name: TAIFU
Certification: CE,ISO9001
Model Number: TFV4-120R2-2C
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: All the machines are fixed and well packaged in the plywood cases.
Delivery Time: negotiable
Payment Terms: L/C, T/T
Supply Ability: 250 sets per month

Two-Color PVC/TPU Upper Making Machine Vertical Injection Molding Machine

Description
Product Name: TFV4-120R2-2C Function: Plastic Injection Molding Machine
Application: Auto Parts, Electronic 3C Color: Write & Yellow
After-sales Service: Provide Warranty: 12 Month
Key Word: High Productivity Used For: Electronic 3C Industry, Automobile Industry

Two-Color PVC/TPU Upper Making Machine Vertical Injection Molding Machine



TAIFU vertical injection molding machine is known for the quality, reliability and proven performance, allowing for safe and easy handling and extremely high operating safety.

Our machines are widely applied in the field of injection overmoulding, multi-colors injection moulding, multi-components injection moulding, high-precision injection moulding, thermosetting injection moulding and liquid silicone injection moulding.

There are various machine models we have V-90/120/170/250R2-2C



Specification



Two-Color  PVC/TPU Upper Making Machine Vertical  Injection Molding Machine 0



Machine Technical Parameters



ITEM UNIT TFV4-90R2-2C TFV4-120R2-2C TFV4-170R2-2C
INJECTION UNIT
Screw stroke mm 100 140 140
Screw Diameter mm 18 22 28 22 26 28 28 30 32
Theoretical Injection Volume cm3 25 38 62 53 74 86 86 99 113
Injection Weight(PS) g 24 35 57 49 69 80 80 92 105
oz 0.83 1.25 2.02 1.75 2.44 2.83 2.83 3.25 3.69
Max.Injection Pressure Mpa 343 230 142 248 178 153 213 185 163
kgf/cm2 3500 2343 1446 2531 1812 1563 2170 1890 1661
Screw Speed Rotation r.p.m 10~350 10~300 10~300
Nozzle Out From Platens mm ≥45 ≥45 ≥45
Heater Power KW 3.6 3.6 5.5
CLAMPING UNIT
Optional shooting platform system type name A/B/C A/B/C A/B/C/D
Clamping Force KN(ton) 882((90(45*2)) 1176(120(60*2)) 1666(170(85*2))
Clamping Stroke mm 250 280 280
Min.Mold Thickness mm 230(310) 250(350) 280(380)
Max.Opening mm 480(560) 530(630) 560(660)
(L*W)Max.Mould Size mm 310*310 350*350 420*420
(D) Rotary Table Size mm φ910 φ1010 φ1200
Ejector Distance mm 45 60 90
Ejector Force KN(ton) 17.2(1.75) 17.2(1.75) 26.5(2.7)
OTHERS
System Pressure Mpa(kgf/cm2) 13.7(140) 13.7(140) 13.7(140)
Oil Tank Capacity L 330 460 650
Electric Power KW 7.5+7.5 11+11 15+15
Machine Dimensions L*W m 2.1*1.8 2.4*2.2 2.6*2.4
H(Excluding shock-absorbing feet) m Min:2.5(Max:3.4) Min:2.8(Max:3.6) Min:3.2(Max:4.1)
Cooling water capacity L/min 60 60 70
Height of Workbench+(Excluding shock-absorbing feet) mm 1310+(60) 1450+(80) 1500+(80)
Machine Weight ton 5.2 7.3 9.5

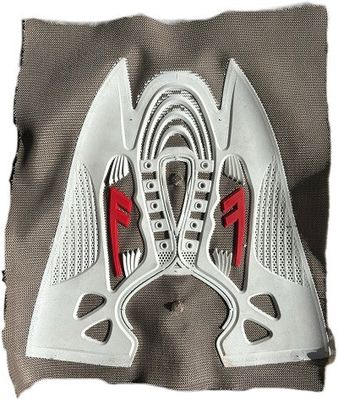

Application



Two-Color  PVC/TPU Upper Making Machine Vertical  Injection Molding Machine 1



Why choose us?

1. Best product quality and most competitive price.
2. Experienced technical personnel in production.
3. Customized design and production.
4. Excellent pre-sales and after-sales services.


FAQ
Q1: Do you test all goods before delivery?
Yes, we have 100% testing before delivery


Q2: What are your payment terms?
T/T 30% in deposite,70% before departure.


Q3: Packaging and shipping?
The spool is plastic-covered inside and cartoned outside. Or according to your request.



Q4: What types of products can be produced using a vertical injection molding machine?
Vertical injection molding machines are commonly used for producing products such as insert-molded components, overmolded products, vertical overmolded cables and connectors, and small precision parts.


Q5: How about your delivery time?
Generally speaking, it will take 20 to 45 days after receiving the advance payment. The specific delivery time depends on
Regarding your order and quantity.
