55 Ton Vertical Bakelite Injection Molding Machine With Rotary Table

55 Ton Vertical Bakelite Injection Molding Machine With Rotary Table
55 Ton Vertical Bakelite Injection Molding Machine With Rotary Table
55 Ton Vertical Bakelite Injection Molding Machine With Rotary Table 55 Ton Vertical Bakelite Injection Molding Machine With Rotary Table 55 Ton Vertical Bakelite Injection Molding Machine With Rotary Table 55 Ton Vertical Bakelite Injection Molding Machine With Rotary Table 55 Ton Vertical Bakelite Injection Molding Machine With Rotary Table

Large Image :  55 Ton Vertical Bakelite Injection Molding Machine With Rotary Table

Product Details:
Place of Origin: China
Brand Name: TAIFU
Certification: CE, ISO9001
Model Number: TFV3-160R2
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: All the machines are fixed and well packaged in the plywood cases.
Delivery Time: Negotiable
Payment Terms: T/T, L/C, Western Union
Supply Ability: 220 set per month
Contact Now

55 Ton Vertical Bakelite Injection Molding Machine With Rotary Table

Description
Product Name: 55 Ton Vertical Bakelite Injection Molding Machine With Rotary Table Key Selling Points: High Productivity And High Precision
Application: Plastic Pulley Clamping Force: 160 Ton
Warranty: 1 Year Color: White & Yellow
Motor: Servo Power: 24.2KW

55 Ton Vertical Bakelite Injection Molding Machine With Rotary Table



It is available to customize machines to meet your...



Taifu Machinery Co., Ltd. manufactures bakelite and BMC injection molding machines. Bakelite and BMC injection molding products are widely used in various types of kitchen utensils, mechanical and electrical appliances, home appliance accessories, etc. The company has a strong engineering and technical team to meet customers' various bakelite needs. processing needs.



The model we have TFV4-35/45/55/85/120/200/250/300...



1.Specification:


  UNIT TFV3-160R2 TFV3-200R2 TFV3-250R2
INJECTION UNIT Shooter configuration code name Z16 Z16 Z20
Screw stroke mm 200 200 250
Screw Diameter mm 45 50 55 55 60 65 60 65 70
Theoretical Injection Volume cm3 318 393 475 475 565 664 707 830 962
Injection Weight(PS) g 296 365 442 442 526 617 657 772 895
oz 10.43 12.88 15.59 15.59 18.55 21.77 23.19 27.21 31.56
Max.Injection Pressure Mpa 218 177 146 170 143 122 198 169 146
kgf/cm2 2226 1803 1490 1738 1460 1244 2022 1723 1486
Injection Rate cm3/s 167 206 249 314 373 438 288 338 393
Max Injection Speed mm/s 105 132 102
Screw Speed Rotation r.p.m 10~280 10~240 10~240
Positioning ring diameter mm 120 150 150
Nozzle Out From Platens mm ≥45 ≥45 ≥45
CLAMPING UNIT Clamping Force KN(ton) 1568(160) 1960(200) 2450(250)
Clamping Stroke mm 300 350 350
Min.Mold Thickness mm 300(400) 350(450) 350(450)
Max.Opening mm 600(700) 700(800) 700(800)
(L*W)Max.Mould Size mm 520*520/700*450 570*570/800*470 670*670/860*570
Number of turntable stations mm 2 2 2
(D) Rotary Table Size mm φ1400 φ1630 φ1800
QTY of Ejector pcs 5 5 5
Top bar spacing mm 100 125 125
Ejector Distance mm 110 150 150
Ejector Force KN(ton) 45(4.6) 45(4.6) 45(4.6)
OTHERS System Pressure Mpa(kgf/cm2) 13.7(140) 13.7(140) 13.7(140)
Oil Tank Capacity L 480 600 750
Electric Power KW 22+2.2 31+2.2 37+2.2
Heater Power KW 13.7 13.7 24.3
Machine Dimensions L*W m 2.8*2.2 3.5*2.2 3.6*2.3
H(不含避震脚) m Min:3.7(Max:4.5) Min:4.2(Max:5.2) Min:4.2(Max:5.2)
Cooling water capacity L/min 50 60 60
Work table height mm 1495+(80) 1600+(80) 1600+(80)
Machine Weight ton 10.0 15.2 17.5



2. Features:



  • Three-column two-station turntable machines and traditional table tops over 85 tons need to be equipped with a platform
  • A fast and efficient disc with a water jacket device in the middle for cooling and transporting water to the lower mold.
  • High-precision positioning enables more accurate mold closing of the upper and lower molds
  • Automatic devices such as automatic insertion and removal can be installed to achieve fully automated operation of the entire machine.

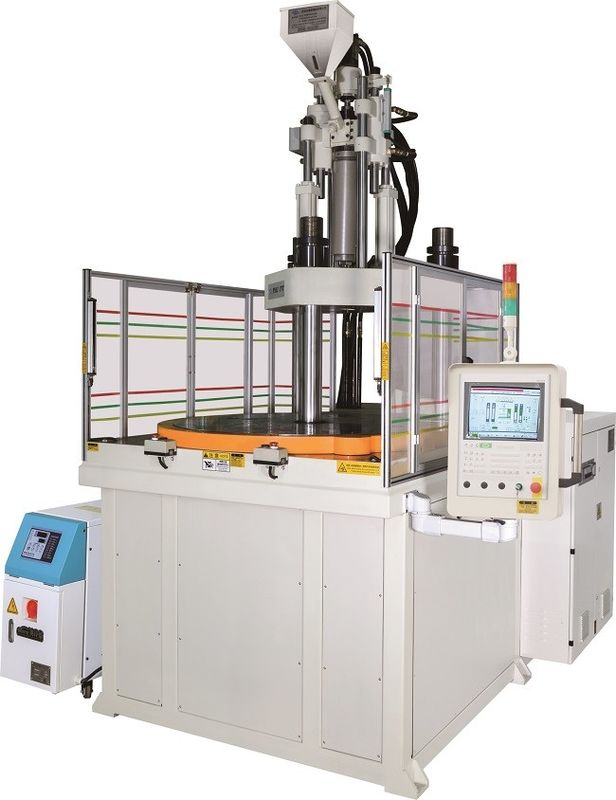

3. Machine Pictures:



55 Ton Vertical Bakelite Injection Molding Machine With Rotary Table 0

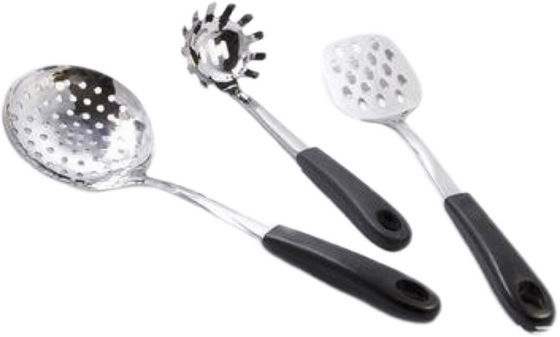

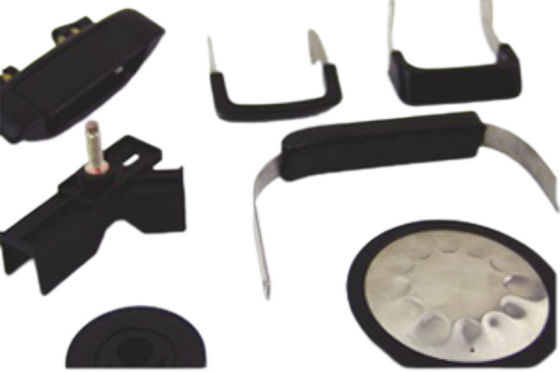

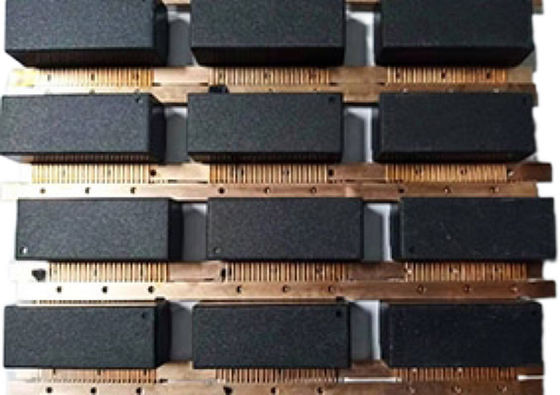

4. Applications:



55 Ton Vertical Bakelite Injection Molding Machine With Rotary Table 1

55 Ton Vertical Bakelite Injection Molding Machine With Rotary Table 2


5. Why choose us?
1. Best product quality and most competitive price.
2. Experienced technical personnel in production.
3. Customized design and production.
4. Excellent pre-sales and after-sales services.


6. FAQ:


Q: Do you test all goods before delivery?
Yes, we have 100% testing before delivery



Q: The difference between vertical bakelite machines and ordinary vertical injection molding machines?

A: The screw barrel of the vertical bakelite machine is special. The barrel does not need to be heated. It is generally heated by an oil thermometer (to accurately control the barrel temperature). The barrel has an interlayer heating oil circulation, and the general temperature is controlled between 70 and 110 degrees. Too high will cause the bakelite powder to solidify.



Q: Packaging and shipping?
The spool is plastic-covered inside and cartoned outside. Or according to your request.



Q: What are your payment terms?
T/T 30% deposite,70%before departure.



Q: How about your delivery time?
Generally speaking, it will take 20 to 45 days after receiving the advance payment. The specific delivery time depends on
Regarding your order and quantity.



If you are interested in our machines, please contact me without hesitation!
