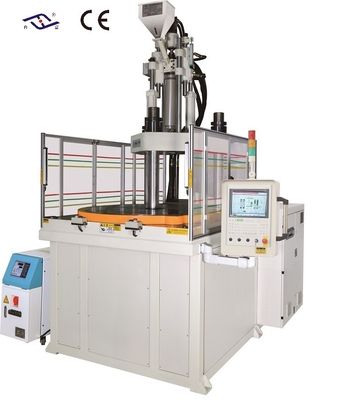

160 Ton For Bakelite Products Making Machine Vertical Injection Molding Machine
It is available to customize machines to meet your...
We are a professional manufacturer of vertical injection molding machines with 17 years of manufacturing experience.The main products produced by our factory include:Vertical plastic injection molding machine, Single slide machine,Double slide machine, Bakelite machine,High speed machine,C-type vertical molding machine,etc.The high speed of the machine is mainly reflected in the ability to choose high speed and high pressure for injection when injecting glue. Using an energy storage device, the maximum firing rate can reach 600mm/sec. Rapid injection, precise molding, and short production cycle.
| |
UNIT |
Parameters |
| INJECTION UNIT |
Screw stroke |
mm |
200 |
| Screw Diameter |
mm |
45 |
50 |
55 |
| Theoretical Injection Volume |
cm3 |
318 |
393 |
475 |
| Injection Weight(DAP)1:1.8 |
g |
573 |
707 |
855 |
| oz |
20.20 |
24.93 |
30.17 |
| Max.Injection Pressure |
Mpa |
254 |
206 |
170 |
| kgf/cm2 |
2596 |
2103 |
1738 |
| Injection Rate |
cm3/s |
167 |
206 |
249 |
| Max Injection Speed |
mm/s |
105 |
| Screw Speed Rotation |
r.p.m |
10~260 |
| Positioning ring diameter |
mm |
120 |
| Nozzle Out From Platens |
mm |
≥45 |
| CLAMPING UNIT |
Clamping Force |
KN(ton) |
1568(160) |
| (D) Rotary Table Size |
mm |
φ1400 |
| QTY of Ejector |
pcs |
5 |
| Top bar spacing |
mm |
100 |
| Ejector Distance |
mm |
110 |
| Ejector Force |
KN(ton) |
45(4.6) |
| OTHERS |
System Pressure |
Mpa(kgf/cm2) |
16(156) |
| Oil Tank Capacity |
L |
480 |
| Electric Power |
KW |
22+2.2 |
| Heater Power |
KW |
6KW*6 |
| Machine Dimensions |
L*W |
m |
2.8*2.2 |
| H |
m |
Min:3.7(Max:4.5) |
| Cooling water capacity |
L/min |
50 |
| Workbench Height |
mm |
1495+(80) |
| Machine Weight |
ton |
10.0 |
TAIFU Machinery is a professional manufacturer of vertical injection molding machines integrated with strong capabilities of R&D, manufacturing and services, with more than 15 years manufacturing experience; 100 employees; 15,000 square feet of manufacturing floor spaces and with facility in the Dongguan city, Guangdong province, China. We are certified by ISO9001, CE and patents 20 inventions.
We aims to supply quality products and excellent services to create value for customers on the basis of integrity, innovation, and win-win cooperation. TAIFU Machinery will be your most valuable and reliable partner in business.
We have 15,000 square feet of manufacturing floor space and with facilities in China. All the machines are manufactured by our own employees in our own factory.
- Machine assembly wproshop
- Finished product machine shop
- PHOTOS OF DIFFERENT EXHIBITIONS
We products and delivers more than 2,000 sets of vertical injection molding machines annually. All the machines will be packed well before shipment.
We provide one-stop solutions of plastic injection molding from raw material to automation, trying to create more values for our customers.
For more than 15 years, we have recognized our customers as long-term partners, growing together. Take advantage of this global strength, and grow with us as we grow with you.
There are wide range of vertical plastic injection molding machines (thermoplastic, rubber) we provide, including Rotary table vertical injection molding machine, Bakelite machine, BMC Machine, LSR silicone injection molding machine, C-type vertical injection molding machine, etc. Not only can we provide standard machines, but we are able to also customize machines to meet your unique needs.
Your Professional Vertical Injection Molding Machine Manufacturer-TAIFU
We are ready to provide a well-built, high-performance products. Contact Us Now!
Q1:What are the advantages of bakelite injection molding machines?
A: Direct clamping mechanism,high clamping force,vertical double-injection cylinder design,high injection pressure.The injection postion has high precision,the whole mechanism of the machine is compact,beautiful and generous.
Q2: What are your payment terms?
A:T/T 50% in deposite,50% before departure.
Q3:Do you test all goods before delivery?
Yes, we have 100% testing before delivery.
Q4: What types of products can be produced using a bakelite injection molding machine?

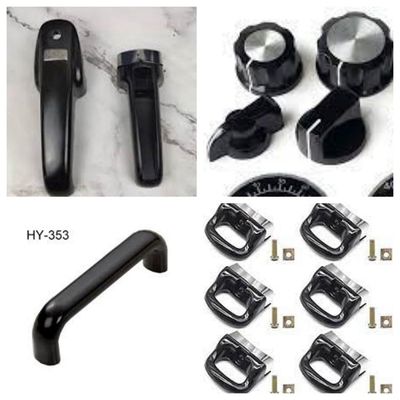

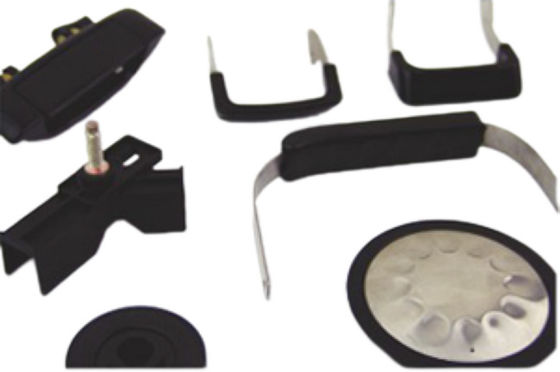

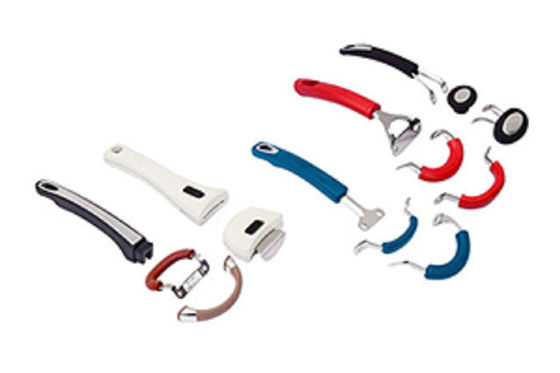

A:Bakelite vertical injection molding machine is suitable for the production of various bakelite products: bakelite, tableware, kitchenware, electric meter accessories, and is also widely used in various functional products used in high-temperature environments.
Q5: How about your delivery time?
A:Generally speaking, it will take 20 to 45 days after receiving the advance payment. The specific delivery time depends on
Regarding your order and quantity.
