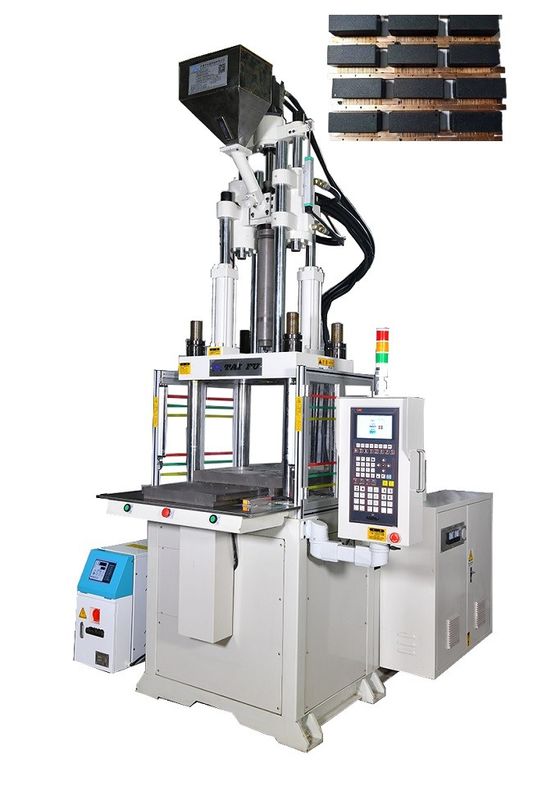

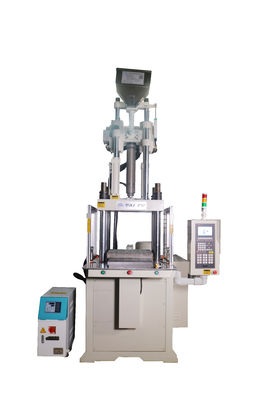

55 Ton Bakelite Veritical Injection Molding Machine With Thermoplastic Materials
Vertical mold locking, vertical injection, single slide mold structure, the product is injected after sliding out of the upper template space, the worker operation is more convenient, and optional robots and automation for fully automated production.
The lower mold slides out of the upper template space, for the need of high extraction size products have absolute advantages, the upper mold guide columns leave the lower mold to form a moving space can be slid out of the lower mold, high extraction size products production is more efficient, has been widely used in various types of plastic products with inlays and multi-purpose injection molding process.
Bakelite Injection Molding Machine: This machine is used for injecting molten Bakelite resin into a mold to produce Bakelite products with desired shapes and sizes. It typically consists of an injection unit, a clamping unit, and a control system.
These machines are specifically designed and optimized for working with Bakelite materials, which have unique properties and processing requirements. The Bakelite Machine Series provides efficient and reliable solutions for the production of various Bakelite products.
It's worth noting that Bakelite has been largely replaced by other materials such as plastics and composites in modern manufacturing processes. However, the term "Bakelite Machine Series" is still used to refer to machines designed for working with similar types of thermosetting resins and composite materials.
Specification
Machine Technical Parameters
| |
UNIT |
TFV4-35S |
TFV4-55S |
TFV4-85S |
| INJECTION UNIT |
| Screw stroke |
mm |
140 |
140 |
140 |
| Screw Diameter |
mm |
22 |
26 |
28 |
28 |
30 |
32 |
32 |
36 |
40 |
| Theoretical Injection Volume |
cm3 |
53 |
74 |
86 |
86 |
99 |
113 |
113 |
143 |
176 |
| Injection Weight(PS) |
g |
49 |
69 |
80 |
80 |
92 |
105 |
105 |
133 |
164 |
| oz |
1.75 |
2.44 |
2.83 |
2.83 |
3.25 |
3.69 |
3.69 |
4.67 |
5.77 |
| Max.Injection Pressure |
Mpa |
248 |
178 |
153 |
213 |
185 |
163 |
228 |
180 |
146 |
| kgf/cm2 |
2531 |
1812 |
1563 |
2170 |
1890 |
1661 |
2331 |
1842 |
1492 |
| Injection Rate |
cm3/s |
44 |
62 |
72 |
65 |
74 |
84 |
100 |
126 |
156 |
| Max Injection Speed |
mm/s |
117 |
105 |
124 |
| Screw Speed Rotation |
r.p.m |
10~300 |
10~300 |
10~280 |
| Positioning ring diameter |
mm |
100 |
110 |
120 |
| Nozzle Out From Platens |
mm |
≥45 |
≥45 |
≥45 |
| CLAMPING UNIT |
| Clamping Force |
KN(ton) |
343(35)/441(45) |
539(55) |
833(85)/980(100) |
| Clamping Stroke |
mm |
200 |
200 |
250 |
| Min.Mold Thickness |
mm |
150(210) |
180(240) |
230(310) |
| Max.Opening |
mm |
350(410) |
380(440) |
480(560) |
| (L*W)Distance Between Tie Bars |
mm |
410*220 |
445*255 |
520*350 |
| (L*W)Max.Mould Size |
mm |
330*360 |
400*375 |
500*470 |
| (L*W)Skate size |
mm |
350*380 |
420*395 |
540*490 |
| QTY of Ejector |
pcs |
3 |
3 |
3 |
| Top bar spacing |
mm |
80 |
80 |
80 |
| Ejector Distance |
mm |
100 |
100 |
100 |
| Ejector Force |
KN(ton) |
26.5(2.7) |
26.5(2.7) |
26.5(2.7) |
| OTHERS |
| System Pressure |
Mpa(kgf/cm2) |
13.7(140)/17.2(175) |
13.7(140) |
13.7(140)/17.2(175) |
| Oil Tank Capacity |
L |
130 |
140 |
280 |
| Electric Power |
KW |
5.5/7.5 |
7.5 |
15/18.7 |
| Heater Power |
KW |
3.6 |
5.5 |
7.0 |
| Machine Dimensions |
L*W |
m |
1.8*1.2 |
2.05*1.3 |
2.2*1.5 |
| H(Excluding shock-absorbing feet) |
m |
Min:2.2(Max:2.8) |
Min:2.32(Max:2.9) |
Min:2.7(Max:3.4) |
| Cooling water capacity |
L/min |
25 |
35 |
40 |
| Height of Workbench+(Excluding shock-absorbing feet) |
mm |
990+(60) |
1088+(60) |
1140+(70) |
| Machine Weight |
ton |
1.5 |
1.9 |
3.9 |
Features
- Suitable for injection molding of thermosetting products. Direct compression locking mechanism with high locking force, vertical dual injection cylinder design, high injection pressure.
- The precision of the injection position is high, and the overall mechanism of the machine is tight and beautiful.
- Single station and dual station options are freely available, making molding more cost-effective.
- The electrical protection device ensures no malfunction and ensures the safety of operators.

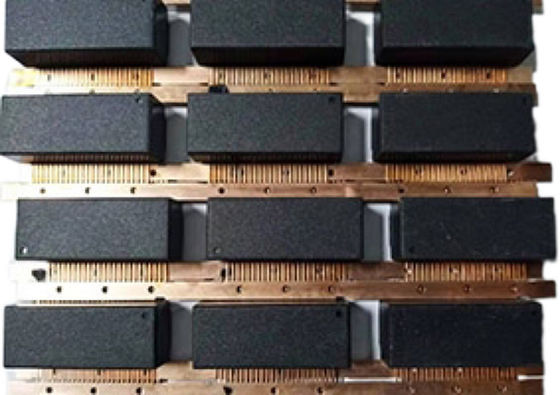

Application
Why choose us?
1. Best product quality and most competitive price.
2. Experienced technical personnel in production.
3. Customized design and production.
4. Excellent pre-sales and after-sales services.
FAQ
Q: Do you test all goods before delivery?
Yes, we have 100% testing before delivery
Q: Packaging and shipping?
The spool is plastic-covered inside and cartoned outside. Or according to your request.
Q: What are your payment terms?
T/T 30% in deposite,70% before departure.
Q: What types of products can be produced using a vertical injection molding machine?
Vertical injection molding machines are commonly used for producing products such as insert-molded components, overmolded products, vertical overmolded cables and connectors, and small precision parts.
Q: How about your delivery time?
Generally speaking, it will take 20 to 45 days after receiving the advance payment. The specific delivery time depends on
Regarding your order and quantity.
