Shoe Sole Vertical plastic Injection Molding Machine with double slide skateboard

Shoe Sole Vertical plastic Injection Molding Machine with double slide skateboard
Shoe Sole Vertical plastic Injection Molding Machine with double slide skateboard
Shoe Sole Vertical plastic Injection Molding Machine with double slide skateboard Shoe Sole Vertical plastic Injection Molding Machine with double slide skateboard Shoe Sole Vertical plastic Injection Molding Machine with double slide skateboard Shoe Sole Vertical plastic Injection Molding Machine with double slide skateboard

Large Image :  Shoe Sole Vertical plastic Injection Molding Machine with double slide skateboard

Product Details:
Place of Origin: Dongguan, China
Brand Name: TAIFU
Certification: CE, ISO9001
Model Number: TFV4-120SD
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: All the machines are fixed and well packaged in the plywood cases.
Delivery Time: Negotiable
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 250 sets/month
Contact Now

Shoe Sole Vertical plastic Injection Molding Machine with double slide skateboard

Description
Name: Shoes Sole Vertical Plastic Injection Molding Machine With Double Slide Skateboard Max Clamping Force: 120 Tons
Color: White Injection Rate: 44cm³-1457cm³
After-sales Service Provided: 1 Year Motor: Servo Motor
Usage: Shoe Sole Advantage: High Precision And Easy To Operate
Highlight:

High Speed Double Slide Table Vertical Injection

,

Injection Molding Machine with double slide skateboard

,

Double Slide vertical rubber injection molding machine

Shoe Sole Vertical Plastic Injection Molding Machine With Double Slide Skateboard



Vertical lnjection Molding Machine-Double Slide SeriesTaifu vertical injection molding machine is known for the quality.reliability and proven performance, allowing for easy handlingand extremely high operating safety.Our machines are widely applied in the field of injectionovermoulding, multi-colors injection moulding.multi-componentsinjection moulding, high-precision injectionmoulding, thermosetting injection moulding and liquid siliconeinjection moulding etc.


There are various models VSD-35/55/85/120/160/200/250/300Available to customize. Contact us to get more information.



1. Sepcifications:



  UNIT TFV4-120SD TFV4-160SD TFV4-200SD
INJECTION UNIT Screw stroke mm 160 200 200
Screw Diameter mm 36 40 45 45 50 55 55 60 65
Theoretical Injection Volume cm3 163 201 254 318 393 475 475 565 664
Injection Weight(PS) g 151 187 237 296 365 442 442 526 617
oz 5.34 6.60 8.35 10.43 12.88 15.59 15.59 18.55 21.77
Max.Injection Pressure Mpa 222 180 142 218 177 146 170 143 122
kgf/cm2 2269 1838 1452 2226 1803 1490 1738 1460 1244
Injection Rate cm3/s 128 158 200 167 206 249 314 373 438
Max Injection Speed mm/s 126 105 132
Screw Speed Rotation r.p.m 10~280 10~280 10~240
Positioning ring diameter mm 120 120 150
Nozzle Out From Platens mm ≥45 ≥45 ≥45

CLAMPING UNIT		 Clamping Force KN(ton) 1176(120) 1568(160) 1960(200)
Clamping Stroke mm 280 300 350
Min.Mold Thickness mm 280(380) 300(400) 350(450)
Max.Opening mm 560(660) 600(700) 700(800)
(L*W)Distance Between Tie Bars mm 760*380 860*420 900*450
(L*W)Max.Mould Size mm 600*540 630*630 710*710
(L*W)Skate size mm 1290*560 1400*650 1590*730
QTY of Ejector pcs 3 5 5
Top bar spacing mm 80 100 150
Ejector Distance mm 100 110 150
Ejector Force KN(ton) 45(4.6) 45(4.6) 45(4.6)
OTHERS System Pressure Mpa(kgf/cm2) 13.7(140) 13.7(140) 13.7(140)
Oil Tank Capacity L 340 450 540
Electric Power KW 18+2.2 22+2.2 31+2.2
Heater Power KW 10.7 13.7 13.7
Machine Dimensions L*W*H m 2.4*2.25*3.3 2.5*2.4*3.7 2.8*2.7*4.4
Cooling water capacity L/min 50 50 60
Work Table Height mm 1340+(70) 1480+(80) 1630+(80)
Machine Weight ton 7.0 10.8 14.0



2. Features:



  • Vertical injection, Chinese/English electronic control, full-screen display, dual-ratio pressure and flow control, optimized mechanical structure, smooth operation, high speed.
  • The ejector pin can be used with different molds and the stroke can be freely adjusted. The clamping force, ejector pin speed, and number of mold releases can also be pre-set as needed.
  • The slide plate and base plate are made of cast iron, with steel strips isolating the connecting parts and lubrication oil holes, greatly reducing slide plate wear and deformation, increasing its lifespan and accuracy.

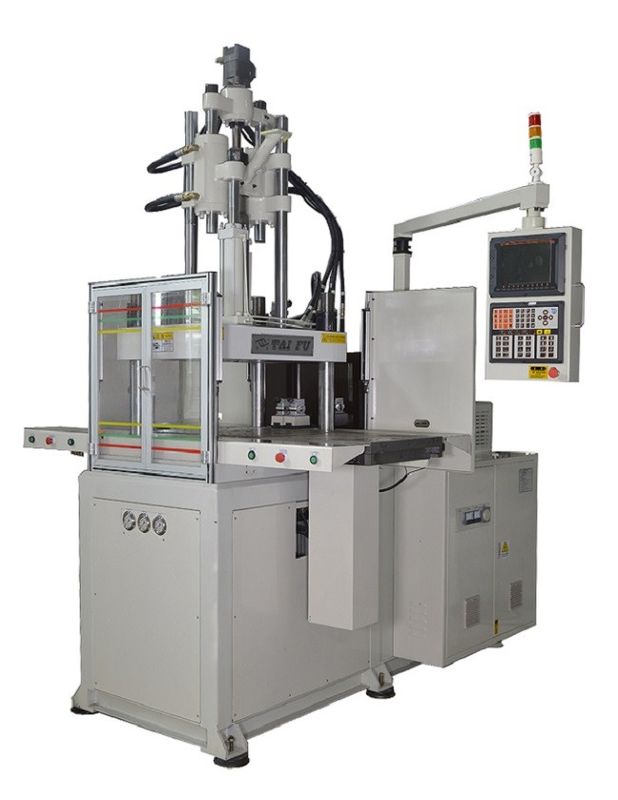

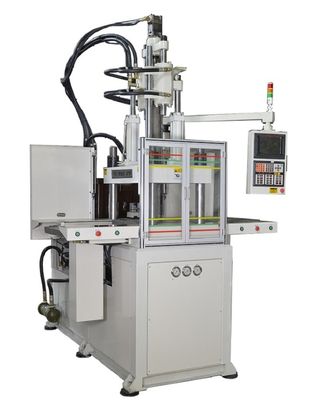

3. Machine Pictures:



Shoe Sole Vertical plastic Injection Molding Machine with double slide skateboard 0

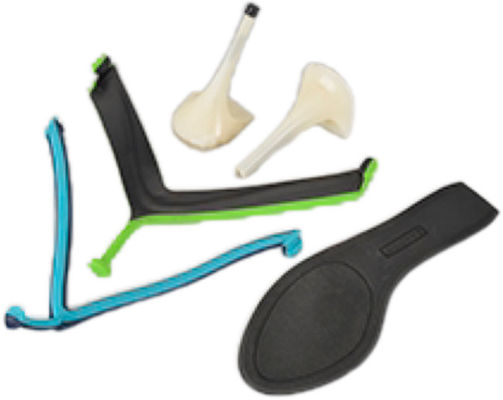

4. Applications:



Shoe Sole Vertical plastic Injection Molding Machine with double slide skateboard 1



5. FAQ:



Q: Are you a trading company or manufacturer?

A: We are a factory located in Dongguan city-the largest industrial manufacturing area in China. All the machines are manufactured by our own employees in our own factory.



Q: What is the difference between single molding and double molding?
A: The mold may feature either one cavity or multiple cavities, each of which can be used to create a single part. As such, a single-cavity mold produces one product per cycle, while a multi-cavity mold produces more than one. Once the mold has been made, injection molding becomes an easily-replicated six-step process.



Q: How long is your delivery time?

A: Small machines are in stock. Generally, the delivery time of standard machines is 7~35 working days. For customized machines, it will be 40~60 working days.



Q: How long is the warranty time?

A: 1 year warranty for all the machines. We provide free parts for any not man-made damages and quality problems. Our technical support will accompany with you during the machines' lifetime. If machines are operated properly, it can service more than 20 years.



Q: What are your terms of payment?

A: 30%TT in advance, 70% balance before shipment. or L/C at sight.



If you are interested in our machines, please do not hesitate to CONTACT US!
