Steel Magnet Making Machine Injection Molding Machine With Double Slide
TAIFU vertical injection molding machine is known for the quality, reliability and proven performance, allowing for easy handlingand extremely high operating safety. Our machines are widely applied in the field of injectionovermoulding, multi-colors injection moulding, multi-componentsinjection moulding, high-precision injectionmoulding, thermosetting injection moulding and liquid siliconeinjection moulding etc.
This model is very convenient for steel magnet, there are various models VSD-35/55/85/120/160/200/250/300 Available to customize. Contact us to get more information.
1. Sepcifications:
| |
UNIT |
TFV4-35SD |
TFV4-55SD |
TFV4-85SD |
| INJECTION UNIT |
Screw stroke |
mm |
140 |
140 |
140 |
| Screw Diameter |
mm |
22 |
26 |
28 |
28 |
30 |
32 |
32 |
36 |
40 |
| Theoretical Injection Volume |
cm3 |
53 |
74 |
86 |
86 |
99 |
113 |
113 |
143 |
176 |
| Injection Weight(PS) |
g |
49 |
69 |
80 |
80 |
92 |
105 |
105 |
133 |
164 |
| oz |
1.75 |
2.44 |
2.83 |
2.83 |
3.25 |
3.69 |
3.69 |
4.67 |
5.77 |
| Max.Injection Pressure |
Mpa |
248 |
178 |
153 |
213 |
185 |
163 |
228 |
180 |
146 |
| kgf/cm2 |
2531 |
1812 |
1563 |
2170 |
1890 |
1661 |
2331 |
1842 |
1492 |
| Injection Rate |
cm3/s |
44 |
62 |
72 |
65 |
74 |
84 |
100 |
126 |
156 |
| Max Injection Speed |
mm/s |
117 |
105 |
124 |
| Screw Speed Rotation |
r.p.m |
10~300 |
10~300 |
10~280 |
| Positioning ring diameter |
mm |
100 |
110 |
120 |
| Nozzle Out From Platens |
mm |
≥45 |
≥45 |
≥45 |
| CLAMPING UNIT |
Clamping Force |
KN(ton) |
343(35)/441(45) |
539(55) |
833(85)/980(100) |
| Clamping Stroke |
mm |
200 |
200 |
250 |
| Min.Mold Thickness |
mm |
150(210) |
180(240) |
230(310) |
| Max.Opening |
mm |
350(410) |
380(440) |
480(560) |
| (L*W)Distance Between Tie Bars |
mm |
410*220 |
445*255 |
520*350 |
| (L*W)Max.Mould Size |
mm |
340*340 |
380*380 |
500*480 |
| (L*W)Skate size |
mm |
730*360 |
915*400 |
1120*500 |
| QTY of Ejector |
pcs |
1 |
1 |
3 |
| Top bar spacing |
mm |
_ |
_ |
80 |
| Ejector Distance |
mm |
100 |
100 |
100 |
| Ejector Force |
KN(ton) |
26.5(2.7) |
26.5(2.7) |
26.5(2.7) |
| OTHERS |
System Pressure |
Mpa(kgf/cm2) |
13.7(140)/17.2(175) |
13.7(140) |
13.7(140)/17.2(175) |
| Oil Tank Capacity |
L |
130 |
140 |
280 |
| Electric Power |
KW |
7.5/11 |
11 |
15+2.2/18+2.2 |
| Heater Power |
KW |
3.6 |
5.5 |
7.0 |
| Machine Dimensions |
L*W*H |
m |
1.6*1.2*2.2 |
1.8*1.3*2.32 |
2.1*1.9*3.5 |
| Cooling water capacity |
L/min |
25 |
35 |
40 |
| Work Table Height |
mm |
990+(60) |
1088+(60) |
1140+(70) |
| Machine Weight |
ton |
1.7 |
2.2 |
4.3 |
2. Features:
- It can be expanded with computer programming and automated extraction; embedded equipment connection can achieve the design of a fully automatic machine
- Vertical injection, Chinese/English electronic control, full-screen display, dual-ratio pressure and flow control, optimized mechanical structure, smooth operation, high speed
- Diversified oil circuit system designs (semi-closed, fully closed, servo, or high-speed injection) can be tailored to customer needs, with expandable program design and connection to automatic embedding and extraction equipment, achieving fully automatic operation.

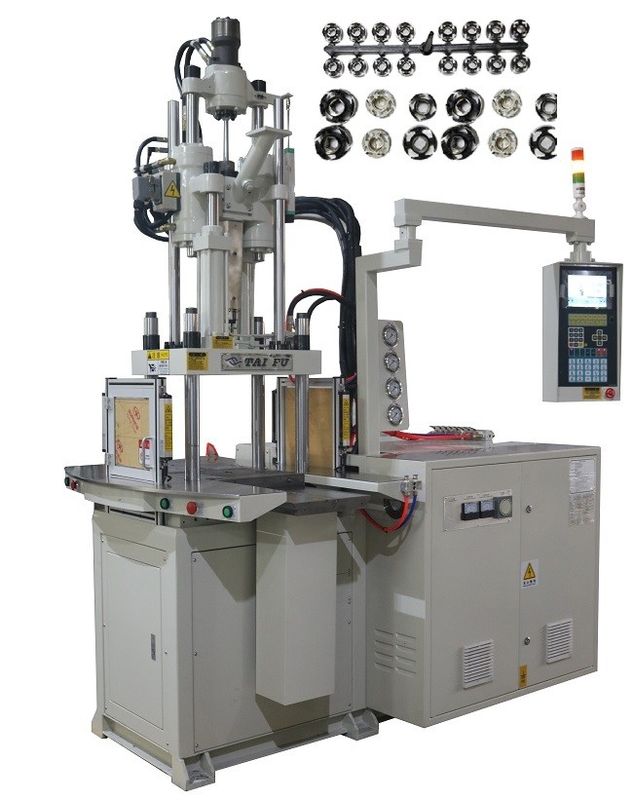

3. Machine Pictures:

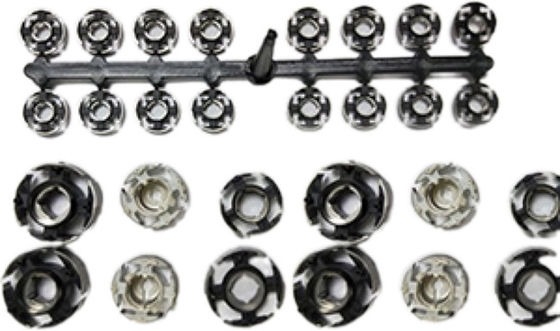

4. Applications:
5. FAQ:
Q: Are you a trading company or manufacturer?
A: We are a factory located in Dongguan city-the largest industrial manufacturing area in China. All the machines are manufactured by our own employees in our own factory.
Q: How long is the warranty time?
A: 1 year warranty for all the machines. We provide free parts for any not man-made damages and quality problems. Our technical support will accompany with you during the machines' lifetime. If machines are operated properly, it can service more than 20 years.
Q: How long is your delivery time?
A: Small machines are in stock. Generally, the delivery time of standard machines is 7~35 working days. For customized machines, it will be 40~60 working days.
Q: What are your terms of payment?
A: 30%TT in advance, 70% balance before shipment. or L/C at sight.
Q: What is the difference between single molding and double molding?
A: The mold may feature either one cavity or multiple cavities, each of which can be used to create a single part. As such, a single-cavity mold produces one product per cycle, while a multi-cavity mold produces more than one. Once the mold has been made, injection molding becomes an easily-replicated six-step process.
If you are interested in our machines, please do not hesitate to CONTACT US!
