Vertical High Speed Injection Molding Machine 85 Ton For Mobilephone Dust Plugs

Vertical High Speed Injection Molding Machine 85 Ton For Mobilephone Dust Plugs
Vertical High Speed Injection Molding Machine 85 Ton For Mobilephone Dust Plugs
Vertical High Speed Injection Molding Machine 85 Ton For Mobilephone Dust Plugs Vertical High Speed Injection Molding Machine 85 Ton For Mobilephone Dust Plugs Vertical High Speed Injection Molding Machine 85 Ton For Mobilephone Dust Plugs

Large Image :  Vertical High Speed Injection Molding Machine 85 Ton For Mobilephone Dust Plugs

Product Details:
Place of Origin: Dongguan, China
Brand Name: TAIFU
Certification: ISO9001，CE
Model Number: TFV4-85-SP
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: All the machines are fixed and well packaged in the plywood cases.
Delivery Time: Negotiable
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 250 sets/month
Contact Now

Vertical High Speed Injection Molding Machine 85 Ton For Mobilephone Dust Plugs

Description
Name: Vertical High Speed Injection Molding Machine 85 Ton For Mobilephone Dust Plugs Model: TFV4-85-SP
Usage: Mobilephone Dust Plugs Advantage: High Precision
After-sales Service Provided: 12 Months Max Injection Rate: 600mm³ /s
Electric Power: 15KW-20KW Max Clamping Force: 85 Tons
Highlight:

Plastic | Injection Moulding Machines

,

Injection Molding Machine Plugs

,

High Speed vertical injection unit

Vertical High Speed Injection Molding Machine 85 Ton For Mobilephone Dust Plugs



TAIFU vertical high-speed injection molding machine has a maximum injection rate of 600 mm³ /s. The machine is equipped with a high-performance control system to provide a strong guarantee for high-quality injection molding accuracy and stability.



High-speed injection molding and precision molding are the best choice for thin-walled and micro-injection molding products. Optional Bosch Rexroth servo valve provides fully closed-loop injection control and higher output accuracy.



It can be equipped with a fully automatic strapping device to realize fully automated connector injection molding production.



1. Sepcifications:



Specification Model Unit Parameter
Injection Unit Screw Diameter mm Ф22 Ф26
Theoretical Injection Volume cm3 38 53
Injection Weight(PS) g(oz) 35(1.23) 49(1.72)
Max.Injection Pressure Mpa(kgf/cm2) 181(1851) 130(1325)
Injection Rate cm3/s 119 167
Injection Speed mm/s 315
Screw Speed Rotation r.p.m 0-350
Nozzle Out From Platens mm ≥45
Clamping Unit Clamping Force KN(tf) 833(85)/980(100)
Clamping Stroke mm 250
Min.Mold Thickness mm 230(310)
Max.Opening mm 480(560)
(L*W)Distance Between Tie Bars mm 520*350
(L*W)Max. Mould Size mm 500*500
(L*W)尺寸Platen Size mm 710*540
Ejector Distance mm 50
Others Ejector Force KN(tf) 26.5
System Pressure Mpa(kgf/cm2) 13.7
Oil Tank Capacity L 280
Electric Power KW(HP) 15/18.5/servo 11
Heater Power KW 6.4
Machine Size L*W*H m
Machine Weight tf







2. Features:



  • High-speed injection and precision molding are the best choice for thin-walled micro-injection molding products.
  • Using energy storage device, the maximum firing speed can reach 600 mm³/s
  • It can be equipped with a fully automatic strapping device to realize fully automated connector injection molding production, ensuring the production process is accurate and stable.

3. Machine Pictures:

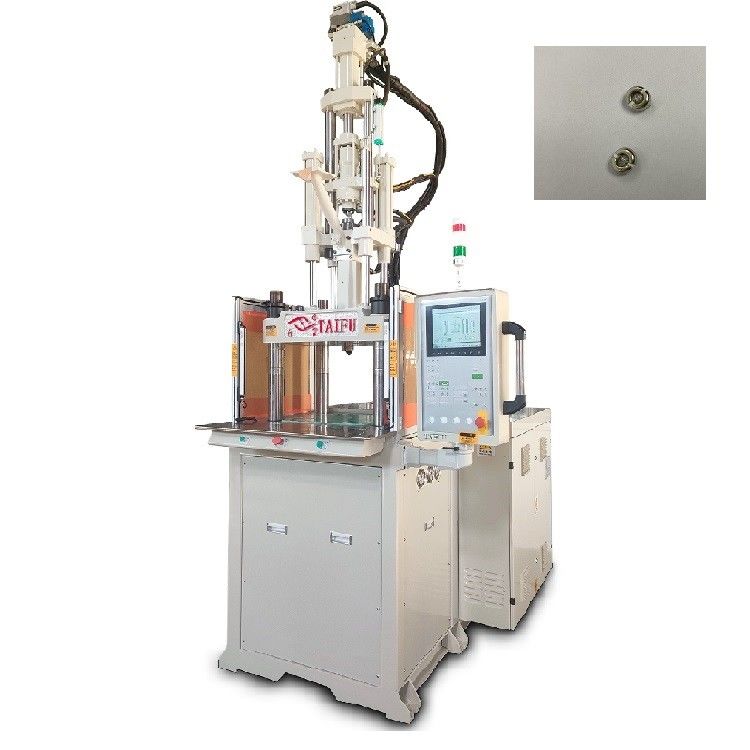

Vertical High Speed Injection Molding Machine 85 Ton For Mobilephone Dust Plugs 0



4. Applications:



Vertical High Speed Injection Molding Machine 85 Ton For Mobilephone Dust Plugs 1



5. FAQ:



Q: Are you a trading company or manufacturer?

A: We are a factory located in Dongguan city-the largest industrial manufacturing area in China. All the machines are manufactured by our own employees in our own factory.



Q: How long is your delivery time?

A: Small machines are in stock. Generally, the delivery time of standard machines is 7~35 working days. For customized machines, it will be 40~60 working days.



Q: How long is the warranty time?

A: 1 year warranty for all the machines. We provide free parts for any not man-made damages and quality problems. Our technical support will accompany with you during the machines' lifetime. If machines are operated properly, it can service more than 20 years.



Q: What are your terms of payment?

A: 30%TT in advance, 70% balance before shipment. or L/C at sight.



If you are interested in our machines, please do not hesitate to CONTACT US!
