55Ton Car Window Sealing Strip Making Injection Molding Machine With C Type

55Ton Car Window Sealing Strip Making Injection Molding Machine With C Type
55Ton Car Window Sealing Strip Making Injection Molding Machine With C Type
55Ton Car Window Sealing Strip Making Injection Molding Machine With C Type 55Ton Car Window Sealing Strip Making Injection Molding Machine With C Type 55Ton Car Window Sealing Strip Making Injection Molding Machine With C Type 55Ton Car Window Sealing Strip Making Injection Molding Machine With C Type

Large Image :  55Ton Car Window Sealing Strip Making Injection Molding Machine With C Type

Product Details:
Place of Origin: China
Brand Name: TAIFU
Certification: CE, ISO9001
Model Number: TFC-55
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: All the machines are fixed and well packaged in the plywood cases.
Delivery Time: Negotiable
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 220 set/month
Contact Now

55Ton Car Window Sealing Strip Making Injection Molding Machine With C Type

Description
Product Name: 55Ton Car Window Sealing Strip Making Injection Molding Machine With C Type Model: TFC-55
Clamping Force: 55 Tons Key Selling Point: High Efficiency
Application: Car Window Sealing Strip Advantage: Easy To Operate
After-sales Service Provided: 12 Month Color: White
Highlight:

55Ton Injection Molding Machine

,

Window Sealing Strip Injection Molding Machine

,

power cord c type injection Molding machine

55Ton Car Window Sealing Strip Making Injection Molding Machine With C Type



It is available to customize machines to meet your...



The C-type vertical injection molding machine is also called a guide column-less machine. Its plane shape is like a C-type, so it is called a C-type machine. It facilitates the installation of molds and the placement of products. Compared with column-mounted machines, it is easier for employees to operate and has a larger operating space.



We can customize and develop according to the actual needs of customers and provide the most precise, efficient and economical personalized combination solutions.



1. Sepcifications:



  UNIT TFC-55
Injection Unit Screw stroke mm 150
Screw Diameter mm 40
Theoretical Injection Volume cm3 188
Injection Weight(PS) g 175
oz 6.18
Max.Injection Pressure Mpa 146
kgf/cm2 1492
Injection Rate cm3/s 113
Injection Speed mm/s 90
Nozzle center height mm 150±25
Distance from nozzle to mold center mm 75
Screw Speed Rotation r.p.m 10~240
Clamping Unit Clamping Force KN(ton) 539(55)
Clamping Stroke mm 200
Min.Mold Thickness mm 175
Max.Opening mm 375
(L*W)Max.Mould Size mm 480*330
(L*W)Platen Size mm 500*335
Ejector Distance mm 50
Ejector Force KN(ton) 45(4.6)
Others System Pressure Mpa(kgf/cm2) 13.7(140)
Oil Tank Capacity L 160
Electric Power KW 7.5
Heater Power KW 8.4
Cooling water capacity L/min 30
Machine Dimensions L*W*H m 2.6*1.0*2.1
Machine Weight ton 3



2. Features:

  • Vertical direct pressure clamping, horizontal injection, inorganic column design, open space on three sides

  • Dual proportional pressure, flow oil circuit control, strong structural structure, high pressure and fast speed

  • Direct pressure mold clamping, dual-cylinder injection system, good precision and long life

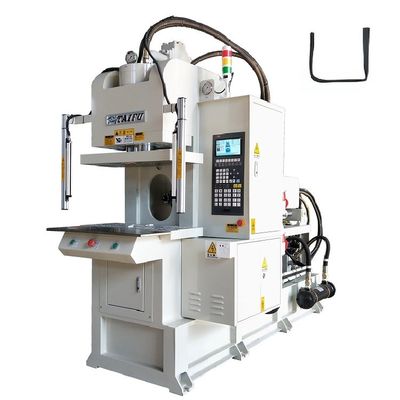

3. Machine Pictures:

55Ton Car Window Sealing Strip Making Injection Molding Machine With C Type 0



55Ton Car Window Sealing Strip Making Injection Molding Machine With C Type 1

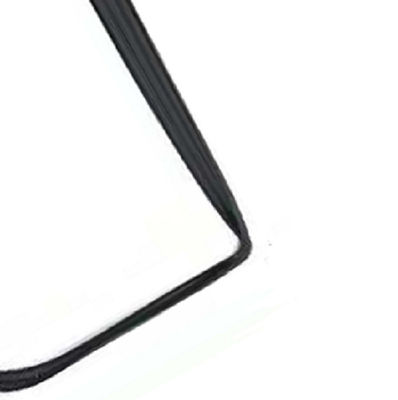

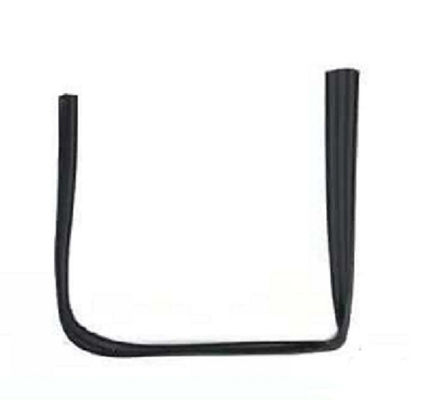

4. Applications:



55Ton Car Window Sealing Strip Making Injection Molding Machine With C Type 255Ton Car Window Sealing Strip Making Injection Molding Machine With C Type 3



5. FAQ:



Q: Are you a trading company or manufacturer?

A: We are a factory located in Dongguan city-the largest industrial manufacturing area in China. All the machines are manufactured by our own employees in our own factory.



Q: How long is your delivery time?

A: Small machines are in stock. Generally, the delivery time of standard machines is 7~35 working days. For customized machines, it will be 40~60 working days.



Q: How long is the warranty time?

A: 1 year warranty for all the machines. We provide free parts for any not man-made damages and quality problems. Our technical support will accompany with you during the machines' lifetime. If machines are operated properly, it can service more than 20 years.



Q: What are your terms of payment?

A: 30%TT in advance, 70% balance before shipment. or L/C at sight.



If you are interested in our machines, please do not hesitate to CONTACT US!
