Product Details:
|
| Product Name: | 120Ton Vertical Double Color Injection Molding Machine For Two-Color Socket | Model: | TFV4-120ZT-2C |
|---|---|---|---|
| Function: | Plastic Injection Molding Machine | Application: | Multi-color Plastic Product |
| Key Word: | High Productivity | Used For: | Two-Color Socket |
| After-sales Service: | Provided | Warranty: | 12 Month |
| High Light: | Two-color Injection Molding Machine,Injection Molding Machine For Two-Color Socket,double colour injection moulding machine |
||
120Ton Vertical Double Color Injection Molding Machine For Two-Color Socket
Taifu vertical two-color turntable injection molding machine is specially designed for two-color and two-material injection molding. It is equipped with two sets of injection devices with independent hydraulic oil circuits. Two molds can be installed on the upper template and the turntable. During molding, the turntable rotates 180° forward and reverse alternately to complete injection molding of two colors and two materials. It can also be used with a turret to practice automated production. The machine is equipped with a high-performance control system to provide a strong guarantee for high-quality injection molding accuracy and stability. It is now widely used in the auto parts and new energy industries.

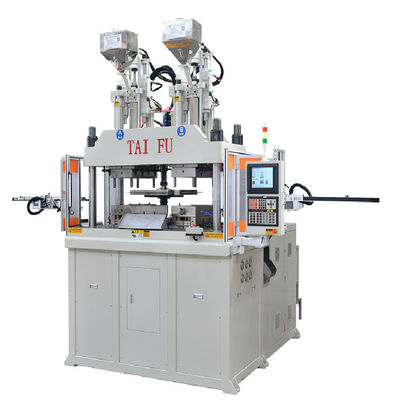

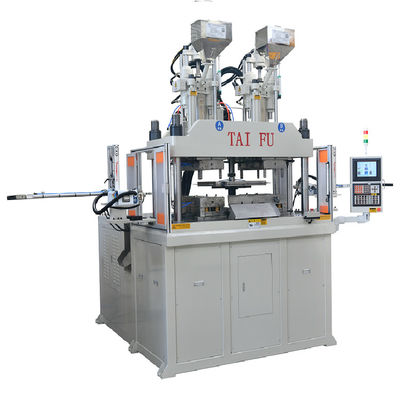

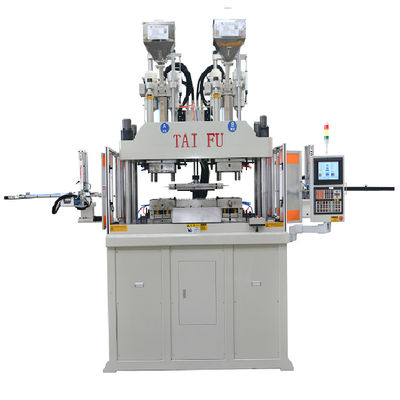

Machine Pictures
Machine Technical Parameters
| ITEM | UNIT | TFV4-90R2-2C | TFV4-120ZT-2C | TFV4-170ZT-2C | |||||||
| INJECTION UNIT | |||||||||||
| Screw stroke | mm | 100 | 140 | 140 | |||||||
| Screw Diameter | mm | 18 | 22 | 28 | 22 | 26 | 28 | 28 | 30 | 32 | |
| Theoretical Injection Volume | cm3 | 25 | 38 | 62 | 53 | 74 | 86 | 86 | 99 | 113 | |
| Injection Weight(PS) | g | 24 | 35 | 57 | 49 | 69 | 80 | 80 | 92 | 105 | |
| oz | 0.83 | 1.25 | 2.02 | 1.75 | 2.44 | 2.83 | 2.83 | 3.25 | 3.69 | ||
| Max.Injection Pressure | Mpa | 343 | 230 | 142 | 248 | 178 | 153 | 213 | 185 | 163 | |
| kgf/cm2 | 3500 | 2343 | 1446 | 2531 | 1812 | 1563 | 2170 | 1890 | 1661 | ||
| Screw Speed Rotation | r.p.m | 10~350 | 10~300 | 10~300 | |||||||
| Nozzle Out From Platens | mm | ≥45 | ≥45 | ≥45 | |||||||
| Heater Power | KW | 3.6 | 3.6 | 5.5 | |||||||
| CLAMPING UNIT | |||||||||||
| Optional shooting platform system type | name | A/B/C | A/B/C | A/B/C/D | |||||||
| Clamping Force | KN(ton) | 882((90(45*2)) | 1176(120(60*2)) | 1666(170(85*2)) | |||||||
| Clamping Stroke | mm | 250 | 280 | 280 | |||||||
| Min.Mold Thickness | mm | 230(310) | 250(350) | 280(380) | |||||||
| Max.Opening | mm | 480(560) | 530(630) | 560(660) | |||||||
| (L*W)Max.Mould Size | mm | 310*310 | 350*350 | 420*420 | |||||||
| (D) Rotary Table Size | mm | φ910 | φ1010 | φ1200 | |||||||
| Ejector Distance | mm | 45 | 60 | 90 | |||||||
| Ejector Force | KN(ton) | 17.2(1.75) | 17.2(1.75) | 26.5(2.7) | |||||||
| OTHERS | |||||||||||
| System Pressure | Mpa(kgf/cm2) | 13.7(140) | 13.7(140) | 13.7(140) | |||||||
| Oil Tank Capacity | L | 330 | 460 | 650 | |||||||
| Electric Power | KW | 7.5+7.5 | 11+11 | 15+15 | |||||||
| Machine Dimensions | L*W | m | 2.1*1.8 | 2.4*2.2 | 2.6*2.4 | ||||||
| H(Excluding shock-absorbing feet) | m | Min:2.5(Max:3.4) | Min:2.8(Max:3.6) | Min:3.2(Max:4.1) | |||||||
| Cooling water capacity | L/min | 60 | 60 | 70 | |||||||
| Height of Workbench+(Excluding shock-absorbing feet) | mm | 1310+(60) | 1450+(80) | 1500+(80) | |||||||
| Machine Weight | ton | 5.2 | 7.3 | 9.5 | |||||||

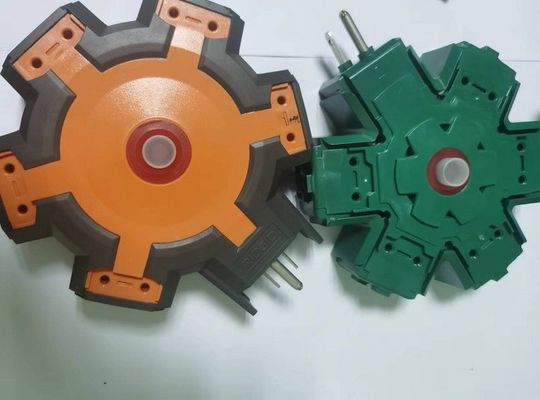

Application
Why choose us?
1. Best product quality and most competitive price.
2. Experienced technical personnel in production.
3. Customized design and production.
4. Excellent pre-sales and after-sales services.
FAQ
Q1: Do you test all goods before delivery?
Yes, we have 100% testing before delivery
Q2: What are your payment terms?
T/T 30% in deposite,70% before departure.
Q3: Packaging and shipping?
The spool is plastic-covered inside and cartoned outside. Or according to your request.
Q4: What types of products can be produced using a vertical injection molding machine?
Vertical injection molding machines are commonly used for producing products such as insert-molded components, overmolded products, vertical overmolded cables and connectors, and small precision parts.
Q5: How about your delivery time?
Generally speaking, it will take 20 to 45 days after receiving the advance payment. The specific delivery time depends on
Regarding your order and quantity.
If you are interested in it, please contact me without hesitation!
