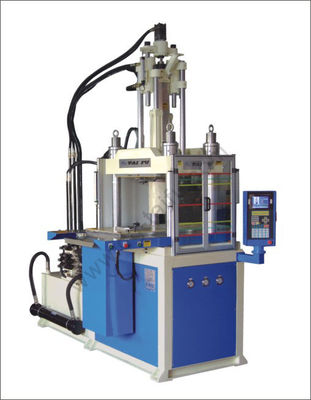

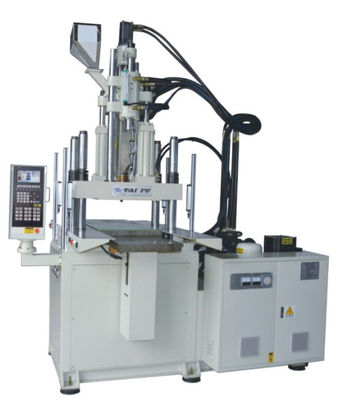

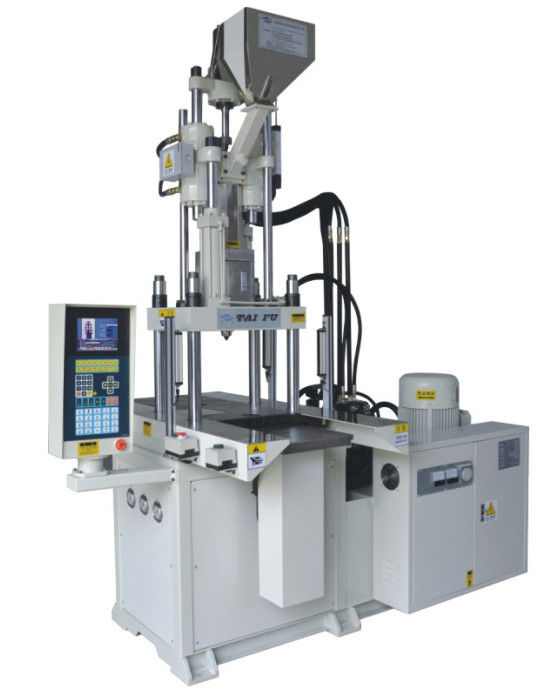

Double Slide Vertical Rubber Injection Molding Machine For Phone Case

Double Slide Vertical Rubber Injection Molding Machine For Phone Case
Double Slide Vertical Rubber Injection Molding Machine For Phone Case
Double Slide Vertical Rubber Injection Molding Machine For Phone Case Double Slide Vertical Rubber Injection Molding Machine For Phone Case Double Slide Vertical Rubber Injection Molding Machine For Phone Case Double Slide Vertical Rubber Injection Molding Machine For Phone Case Double Slide Vertical Rubber Injection Molding Machine For Phone Case Double Slide Vertical Rubber Injection Molding Machine For Phone Case

Large Image :  Double Slide Vertical Rubber Injection Molding Machine For Phone Case

Product Details:
Place of Origin: Dongguan, China
Brand Name: TAIFU
Certification: CE, ISO9001
Model Number: TFV4-120SD
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: All the machines are fixed and well packaged in the plywood cases.
Delivery Time: Negotiable
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 250 sets/month
Contact Now

Double Slide Vertical Rubber Injection Molding Machine For Phone Case

Description
Name: Double Slide Vertical Rubber Injection Molding Machine Max Clamping Force: 120 Tons
Max Volume: 1507Grams Injection Rate: 44cm³-1457cm³
After-sales Service Provided: 1 Year Motor: Servo Motor
Usage: Phone Case Advantage: High Precision And Easy To Operate
Highlight:

Double slide Table Vertical Injection

,

Injection Molding Machine For Phone Case

,

Double Slide rotary table injection molding machine

Double Slide Vertical Rubber Injection Molding Machine For Phone Case



TAIFU double slide vertical injection molding machine can be equipped with two lower molds. If the placement time of the insert exceeds the injection molding cycle, the double slide is more suitable.



We can customize and develop according to the actual needs of customers and provide the most precise, efficient and economical personalized combination solutions.



1. Sepcifications:

  UNIT TFV4-120SD TFV4-160SD
Injection Unit     Z12 Z16
Screw stroke mm 160 200
Screw Diameter mm 36 40 45 45 50 55
Theoretical Injection Volume cm3 163 201 254 318 393 475
Injection Weight(PS) g 151 187 237 296 365 442
oz 5.34 6.60 8.35 10.43 12.88 15.59
Max.Injection Pressure Mpa 222 180 142 218 177 146
kgf/cm2 2269 1838 1452 2226 1803 1490
Injection Rate cm3/s 128 158 200 167 206 249
Max Injection Speed mm/s 126 105
Screw Speed Rotation r.p.m 10~280 10~280
Positioning ring diameter mm 120 120
Nozzle Out From Platens mm ≥45 ≥45
Clamping Unit Clamping Force KN(ton) 1176(120) 1568(160)
Clamping Stroke mm 280 300
Min.Mold Thickness mm 280(380) 300(400)
Max.Opening mm 560(660) 600(700)
(L*W)Distance Between Tie Bars mm 760*380 860*420
(L*W)Max.Mould Size mm 600*540 630*630
(L*W)Skate size mm 1290*560 1400*650
Top bar spacing mm 80 100
Ejector Distance mm 100 110
Ejector Force KN(ton) 45(4.6) 45(4.6)
Others System Pressure Mpa(kgf/cm2) 13.7(140) 13.7(140)
Oil Tank Capacity L 340 450
Electric Power KW 18+2.2 22+2.2
Heater Power KW 10.7 13.7
Machine Size L*W*H m 2.4*2.25*3.3 2.5*2.4*3.7
Cooling water capacity L/min 50 50
Work Table Height mm 1340+(70) 1480+(80)
Machine Weight ton 7.0 10.8



2. Features:



  • The skateboard and bottom plate are made of ductile iron to increase the service life and accuracy of the skateboard.
  • Dual-mode skateboard adopts dual-mode sliding left and right alternately.
  • One mold is formed and the other mold is embedded in the outside. It has high operating safety and can increase productivity by 30%-50%.

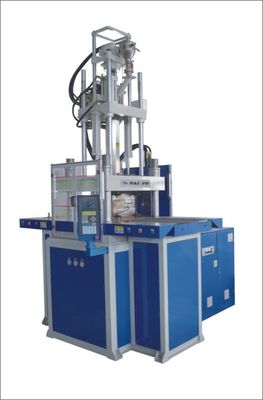

3. Machine Pictures:



Double Slide Vertical Rubber Injection Molding Machine For Phone Case 0

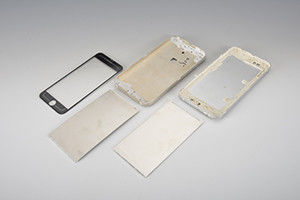

4. Applications:



Double Slide Vertical Rubber Injection Molding Machine For Phone Case 1



5. FAQ:



Q: What is the difference between single molding and double molding?
A: The mold may feature either one cavity or multiple cavities, each of which can be used to create a single part. As such, a single-cavity mold produces one product per cycle, while a multi-cavity mold produces more than one. Once the mold has been made, injection molding becomes an easily-replicated six-step process.



Q: Are you a trading company or manufacturer?

A: We are a factory located in Dongguan city-the largest industrial manufacturing area in China. All the machines are manufactured by our own employees in our own factory.



Q: How long is your delivery time?

A: Small machines are in stock. Generally, the delivery time of standard machines is 7~35 working days. For customized machines, it will be 40~60 working days.



Q: How long is the warranty time?

A: 1 year warranty for all the machines. We provide free parts for any not man-made damages and quality problems. Our technical support will accompany with you during the machines' lifetime. If machines are operated properly, it can service more than 20 years.



Q: What are your terms of payment?

A: 30%TT in advance, 70% balance before shipment. or L/C at sight.



If you are interested in our machines, please do not hesitate to CONTACT US!
