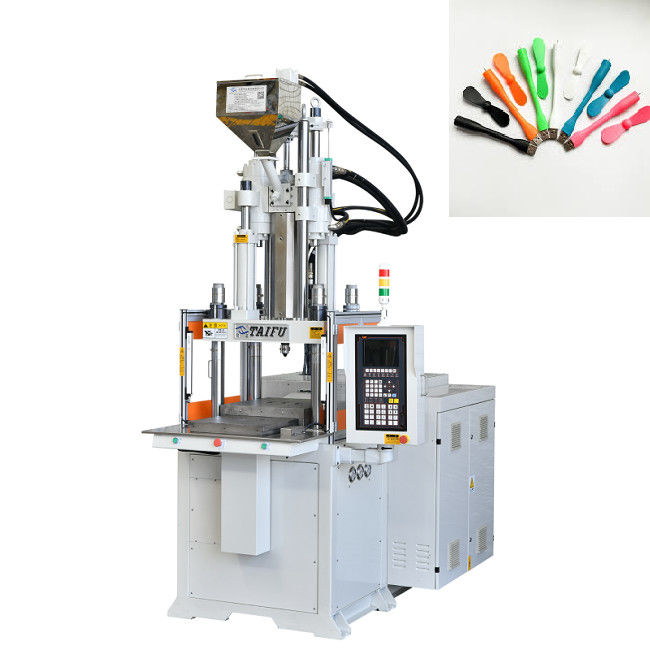

55 Ton Vertical Single Slide Injection Molding Machine For Mini Fan

55 Ton Vertical Single Slide Injection Molding Machine For Mini Fan
55 Ton Vertical Single Slide Injection Molding Machine For Mini Fan 55 Ton Vertical Single Slide Injection Molding Machine For Mini Fan 55 Ton Vertical Single Slide Injection Molding Machine For Mini Fan 55 Ton Vertical Single Slide Injection Molding Machine For Mini Fan 55 Ton Vertical Single Slide Injection Molding Machine For Mini Fan 55 Ton Vertical Single Slide Injection Molding Machine For Mini Fan

Large Image :  55 Ton Vertical Single Slide Injection Molding Machine For Mini Fan

Product Details:
Place of Origin: Guangdong，China
Brand Name: TAIFU
Certification: ISO9001,CE
Model Number: TFV4-55S
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: All the machines are fixed and well packaged in the plywood cases.
Delivery Time: Negotiable
Payment Terms: L/C, T/T,
Supply Ability: 210 sets/month
Contact Now

55 Ton Vertical Single Slide Injection Molding Machine For Mini Fan

Description
Product Name: 55 Ton Vertical Single Slide Injection Molding Machine For Mini Fan Model: TFV4-55S
Key Selling Points: High Efficiency Applicable Industries: Manufacturing Plant
Usage: Mini Fan After-sales Service Provided: Provided
Warranty: 1 Year Style: New

55 Ton Vertical Single Slide Injection Molding Machine For Mini Fan



We are a professional manufacturer of vertical injection molding machines with 17 years of manufacturing experience. The single slide vertical injection molding machine is one of our main products.



The product models include25-1800 tons, and the injection volume can be from 53 grams to 2552 grams. Vertical mold clamping, vertical injection, single sliding mold structure. After the injection molding is completed, the product slides out of the upper template space, making it easier for workers to operate. At the same time, robots and automation can be optionally installed for fully automated production.



We can customize and develop according to the actual needs of customers and provide the most precise, efficient and economical personalized combination solutions.



1. Sepcifications:



  UNIT TFV4-35S TFV4-55S TFV4-85S
INJECTION UNIT Screw stroke  mm 140 140 140
 Screw Diameter   mm 22 26 28 28 30 32 32 36 40
Theoretical Injection Volume cm3 53 74 86 86 99 113 113 143 176
Injection Weight(PS) g 49 69 80 80 92 105 105 133 164
oz 1.75 2.44 2.83 2.83 3.25 3.69 3.69 4.67 5.77
Max.Injection Pressure Mpa 248 178 153 213 185 163 228 180 146
kgf/cm2 2531 1812 1563  2170   1890   1661  2331 1842 1492
Injection Rate cm3/s 44 62 72 65 74 84 100 126 156
Max Injection Speed mm/s 117 105 124
Screw Speed Rotation r.p.m 10~300 10~300 10~280
Positioning ring diameter mm 100 110 120
CLAMPING UNIT Clamping Force KN(ton) 343(35)/441(45) 539(55) 833(85)/980(100)
Clamping Stroke mm 200 200 250
Min.Mold Thickness mm 150(210) 180(240) 230(310)
Max.Opening mm 350(410) 380(440) 480(560)
(L*W)Distance Between Tie Bars mm 410*220 445*255 520*350
(L*W)Max.Mould  Size mm 330*360 400*375 500*470
Top bar spacing mm 80 80 80
Ejector Distance mm 100 100 100
Ejector Force KN(ton) 26.5(2.7) 26.5(2.7) 26.5(2.7)
OTHERS System Pressure  Mpa(kgf/cm2)   13.7(140)/17.2(175)  13.7(140)  13.7(140)/17.2(175)
Oil Tank Capacity L 130 140 280
Electric Power KW 5.5/7.5 7.5 15/18.7
Heater Power KW 3.6 5.5 7.0
Machine Size L*W*H m 1.8*1.2*2.2 2.05*1.3*2.32 2.2*1.5*2.7
Machine Weight ton 1.5 1.9 3.9



2. Features:



  • After the mold is opened, the lower mold automatically moves in front of the operator, making it easier to operate and safer.
  • Multi-stage temperature control, multi-stage injection pressure and injection speed, and stepless adjustment of injection back pressure are more suitable for the molding of various precision plastic parts.
  • Easier to embed automation equipment to achieve fully automated production lines.

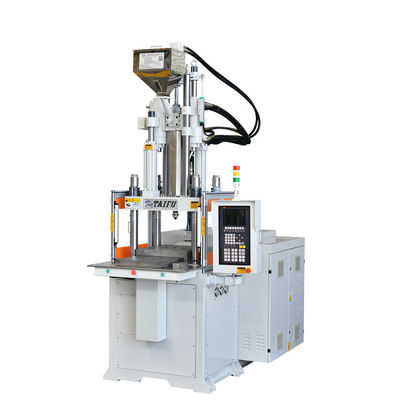

3. Machine Pictures:

55 Ton Vertical Single Slide Injection Molding Machine For Mini Fan 0

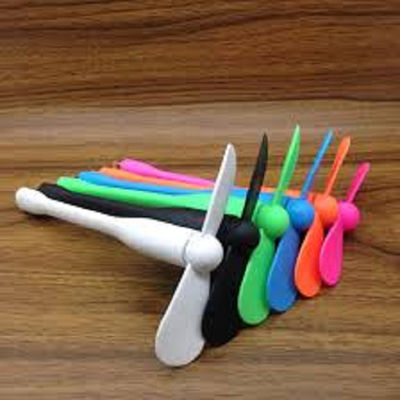

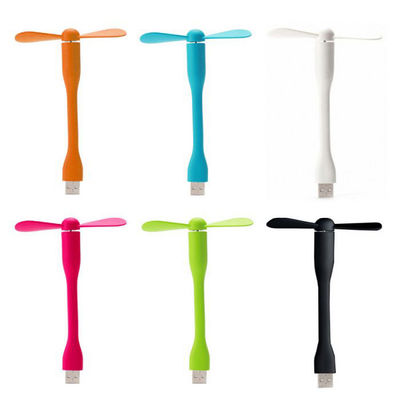

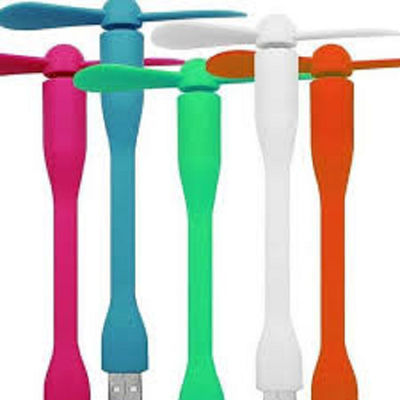

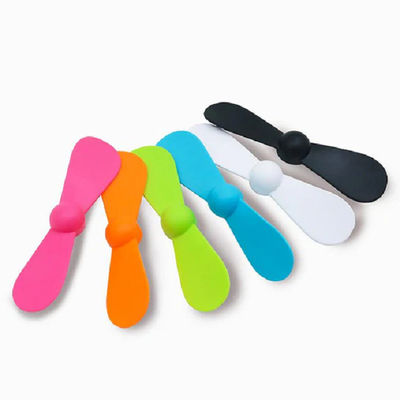

4. Applications:

55 Ton Vertical Single Slide Injection Molding Machine For Mini Fan 155 Ton Vertical Single Slide Injection Molding Machine For Mini Fan 255 Ton Vertical Single Slide Injection Molding Machine For Mini Fan 3





5. FAQ:



Q: Are you a trading company or manufacturer?

A: We are a factory located in Dongguan city-the largest industrial manufacturing area in China. All the machines are manufactured by our own employees in our own factory.



Q: How long is your delivery time?

A: Small machines are in stock. Generally, the delivery time of standard machines is 35 working days. For customized machines, it will be 35-45 working days.



Q: How long is the warranty time?

A: 1 year warranty for all the machines. We provide free parts for any not man-made damages and quality problems. Our technical support will accompany with you during the machines' lifetime. If machines are operated properly, it can service more than 20 years.



Q: What are your terms of payment?

A: 50% in advance, 50% balance before shipment by T/T.



If you are interested in our machines, please do not hesitate to CONTACT US!
