High Quality 35 Ton Plastic Small Injection Molding Machine For Egg Beater
It is available to customize machines to meet your...
TAIFU-Product Catalog -.pdf
TAIFU 35 Ton Standard Vertical Injection Molding Machine is a specialized machine used for turning holder. It is designed to provide accurate and safe operation, making it suitable for insert molding. The machine features a vertical direct hydraulic clamping system, which ensures precise molding and reduces production costs.
We can customize and develop according to the actual needs of customers and provide the most precise, efficient and economical personalized combination solutions.
1. Sepcifications:
| ITEMS |
UNIT |
TFV4-35 |
| INJECTION UNIT |
| Screw Diameter |
mm |
22 |
28 |
32 |
| Theoretical Injection Volume |
cm3 |
53 |
86 |
112 |
| Injection Weight(PS) |
g |
49 |
80 |
104 |
| |
oz |
1.7 |
2.8 |
3.6 |
| Max.Injection Pressure |
Mpa |
248 |
153 |
117 |
| |
kgf/cm2 |
2530 |
1562 |
1196 |
| Injection Rate |
cm3/s |
44 |
71 |
93 |
| Injection Speed |
mm/s |
116 |
| Screw Speed Rotation |
r.p.m |
0~240 |
| Nozzle Out From Platens |
mm |
≥45 |
| CLAMPING UNIT |
| Clamping Force |
KN(tf) |
343(35)/441(45) |
| Clamping Stroke |
mm |
200 |
| Min.Mold Thickness |
mm |
150(210) |
| Max.Opening |
mm |
350(410) |
| (L*W)Distance Between Tie Bars |
mm |
410*220 |
| (L*W)Max.Mould Size |
mm |
400*350 |
| Table Size |
mm |
560*370 |
| Ejector Distance |
mm |
40 |
| Ejector Force |
KN(tf) |
17.2(1.75) |
| OTHERS |
| System Pressure |
Mpa(kgf/cm2) |
13.7(140) |
| Oil Tank Capacity |
L |
130 |
| Electric Power |
KW(HP) |
5.5(7.5)/7.5(10) |
| Heater Power |
KW |
3.6 |
| Machine Dimensions |
m(L*W*H) |
1.6*1.2*2.7 |
| Machine Weight |
tf |
1.3 |
|
2. Features:
- Vertical mold-locking, vertical injection
- Occupy less space.
- Clamping is designed with a direct-pressing sub-mother type locking cylinder, which can quickly clamping and slow low-pressure clamping, and improve the service life of the mold.
- With high performance, high response and high precision multi-function industrial control computer, forming is more convenient.

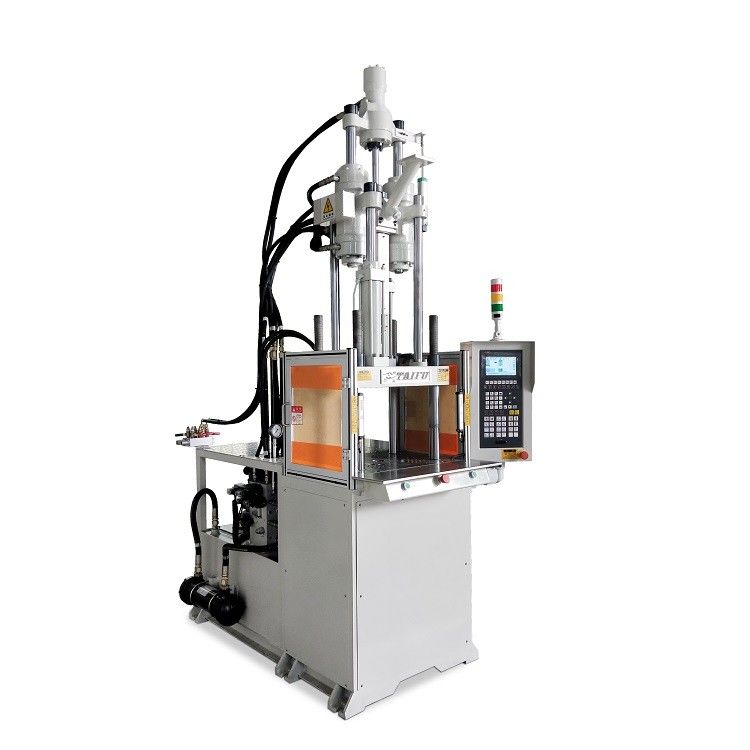

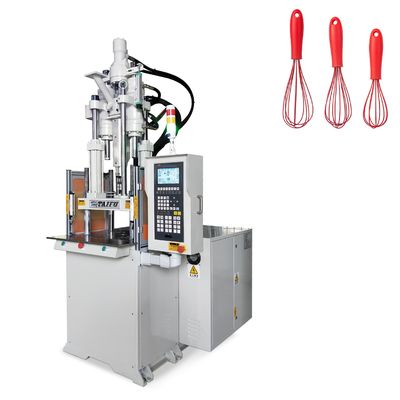

3. Machine Pictures:

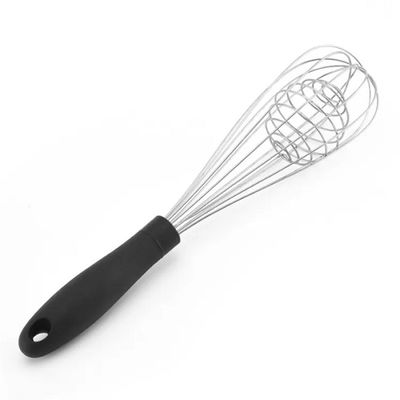

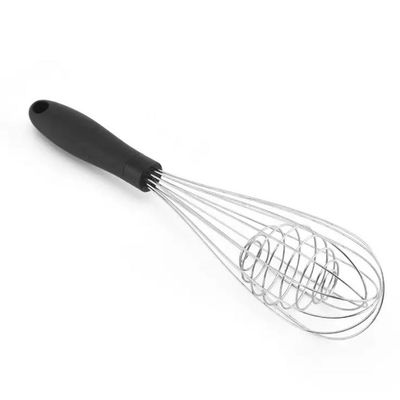

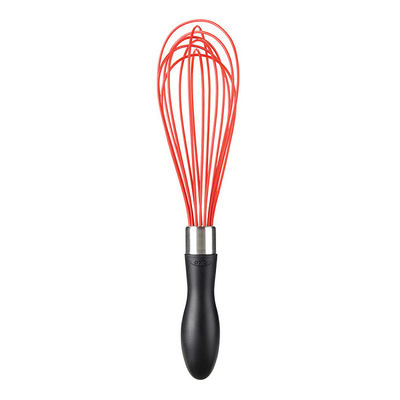

4. Applications:
5. FAQ:
Q: What are the advantages of the machine ?
A: The machine has strong applicability, such as electronic parts,electrical parts,medical supplies,stationery supplies,sports goods,hardware and plastics,auto parts,ect.
Q: Are you a trading company or manufacturer?
A: We are a factory located in Dongguan city-the largest industrial manufacturing area in China. All the machines are manufactured by our own employees in our own factory.
Q: How long is the warranty time?
A: 365 days warranty for all the machines. We provide free parts for any not man-made damages and quality problems. Our technical support will accompany with you during the machines' lifetime. If machines are operated properly, it can service more than 20 years.
Q: What are your terms of payment?
A: 30%TT in advance, 70% balance before shipment. or L/C at sight.
Q: How long is your delivery time?
A: Small machines are in stock. Generally, the delivery time of standard machines is 7~35 working days. For customized machines will be 40~60 working days.
