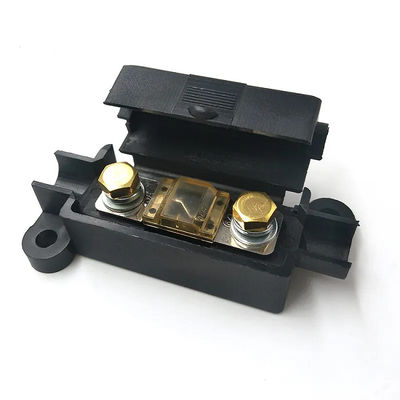

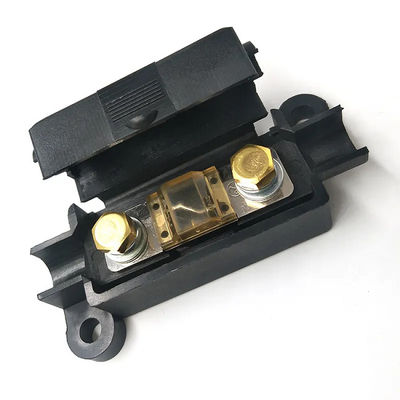

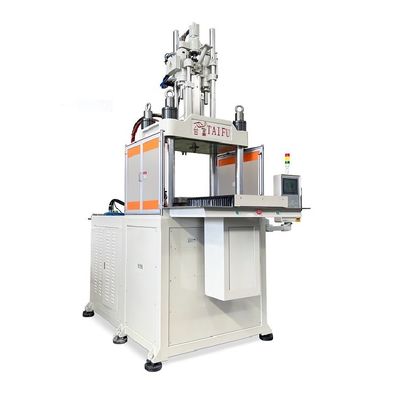

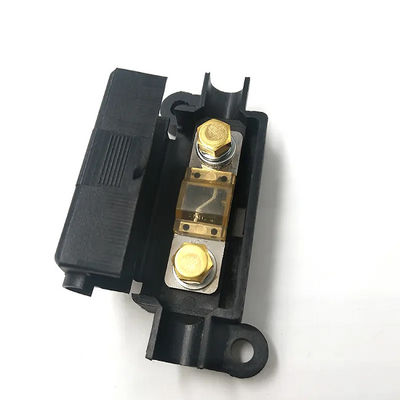

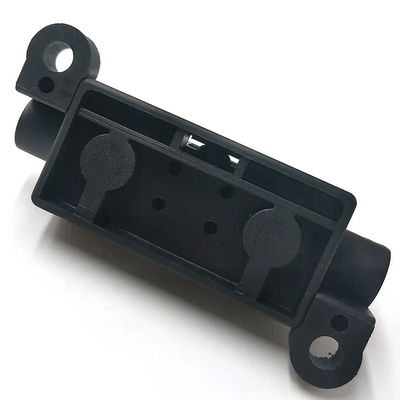

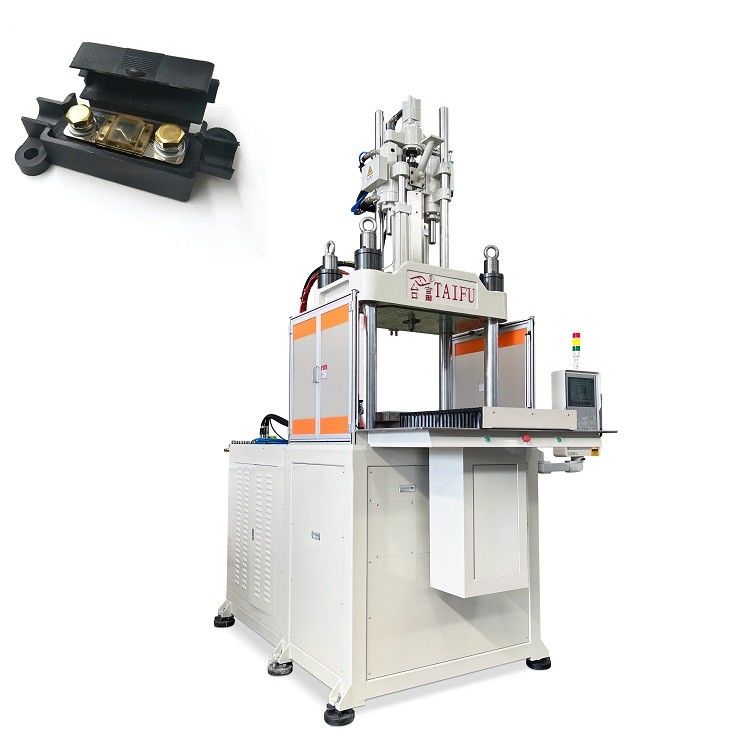

160 Ton Single Slide Vertical Injection Molding Machine Making Fuse Holders

Fuse Holders Making Machine 160 Ton Single Slide Vertical Injection Molding Machine



TAIFU-Product Catalog -.pdf

Company Production -TAIFU-.pdf

It is available to customize machines to meet your...





We are a professional manufacturer of vertical injection molding machines with 17 years of manufacturing experience. The single slide vertical injection molding machine is one of our main products. The product models include 25-1800 tons, and the injection volume can be from 3 grams to 3000 grams.



Vertical mold clamping, vertical injection. After the injection molding is completed, the product push out of the upper template space, making it easier for workers to operate. At the same time, robots and automation can be optionally installed for fully automated production.



We can customize and develop according to the actual needs of customers and provide the most precise, efficient and economical personalized combination solution.







ITEMS		UNIT	TFV4-160S
INJECTION UNIT
Screw stroke		mm	160
Screw Diameter		mm	45	50	55
Theoretical Injection Volume		cm3	318	393	475
Injection Weight(PS)		g	296	365	442
		oz	10.43	12.88	15.59
Max.Injection Pressure		Mpa	218	177	146
		kgf/cm2	2226	1803	1490
Screw Speed Rotation		r.p.m	10~280
Positioning ring diameter		mm	120
CLAMPING UNIT
Clamping Force		KN(ton)	1568(160)
QTY of Ejector		pcs	3
Top bar spacing		mm	100
Ejector Distance		mm	110
Ejector Force		KN(ton)	45(4.6)
OTHERS
System Pressure		Mpa(kgf/cm2)	13.7(140)
Oil Tank Capacity		L	450
Electric Power		KW	22
Heater Power		KW	13.7
Machine Dimensions	L*W	m	2.8*1.8
	H(Excluding shock-absorbing feet)	m	Min:3.4(Max:4.2)
Cooling water capacity		L/min	50
Machine Weight		ton	8.5
