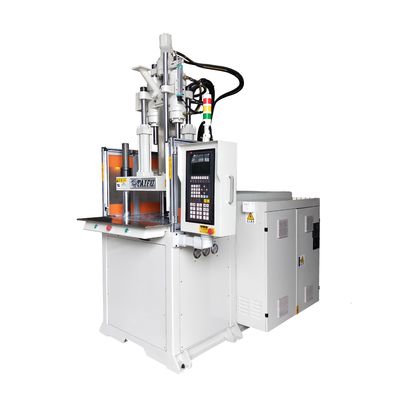

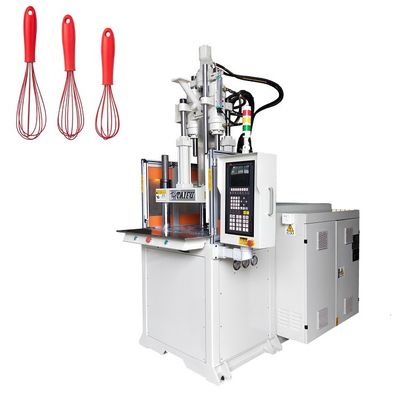

Suitable For PP,PA,TPE,ABS Plastic Material Vertical Injection Molding Machine
It is available to customize machines to meet your...
Company Production -TAIFU-.pdf
TAIFU-Product Catalog -.pdf
We are a professional manufacturer of vertical injection molding machines with 17 years of manufacturing experience. The standard vertical injection molding machine is one of our main products. The product models include 15-1800 tons, and the injection volume can be from 3 grams to 3000 grams.
Vertical mold clamping, vertical injection. After the injection molding is completed, the product push out of the upper template space, making it easier for workers to operate. At the same time, robots and automation can be optionally installed for fully automated production.
We can customize and develop according to the actual needs of customers and provide the most precise, efficient and economical personalized combination solution.
Please don't hesitate to contact us if you are interested.
| TFV4-85 Technical Parameters |
| ITEMS |
UNIT |
Parameters |
| INJECTION UNIT |
| Screw stroke |
mm |
140 |
| Screw Diameter |
mm |
32 |
36 |
40 |
| Theoretical Injection Volume |
cm3 |
113 |
143 |
176 |
| Injection Weight(PS) |
g |
105 |
133 |
164 |
| oz |
3.69 |
4.67 |
5.77 |
| Max.Injection Pressure |
Mpa |
228 |
180 |
146 |
| kgf/cm2 |
2331 |
1842 |
1492 |
| Screw Speed Rotation |
r.p.m |
10~280 |
| Positioning ring diameter |
mm |
120 |
| CLAMPING UNIT |
| Clamping Force |
kN(tf) |
833(85)/980(100) |
| QTY of Ejector |
pcs |
1 |
| Ejector Force |
kN(tf) |
26.5(2.7) |
| OTHERS |
| System Pressure |
Mpa(kgf/cm2) |
13.7(140)/17.2(175) |
| Oil Tank Capacity |
L |
280 |
| Electric Power |
KW |
15/18.7 |
| Heater Power |
KW |
7.0 |
| Machine Dimensions |
L*W |
m |
2.0*1.5 |
| H |
m |
Min:2.6(Max:3.3) |
| Machine Weight |
ton |
3.5 |
It is available to customize machines to meet your needs.
Contact us to get more information!
Tell us your products, we are ready to provide custom solution. Contact Us Now!
TAIFU Machinery is a professional manufacturer of vertical injection molding machines integrated with strong capabilities of R&D, manufacturing and services, with more than 15 years manufacturing experience; 100 employees; 15,000 square feet of manufacturing floor spaces and with facility in the Dongguan city, Guangdong province, China. We are certified by ISO9001, CE and patents 20 inventions.
We aims to supply quality products and excellent services to create value for customers on the basis of integrity, innovation, and win-win cooperation. TAIFU Machinery will be your most valuable and reliable partner in business.
We have 15,000 square feet of manufacturing floor space and with facilities in China. All the machines are manufactured by our own employees in our own factory.
- Machine assembly workshop
- Finished product machine shop
- PHOTOS OF DIFFERENT EXHIBITIONS
We products and delivers more than 2,000 sets of vertical injection molding machines annually. All the machines will be packed well before shipment.
For more than 15 years, we have recognized our customers as long-term partners, growing together. Take advantage of this global strength, and grow with us as we grow with you.
There are wide range of vertical plastic injection molding machines (thermoplastic, rubber) we provide, including Rotary table vertical injection molding machine, Bakelite machine, BMC Machine, LSR silicone injection molding machine, C-type vertical injection molding machine, etc. Not only can we provide standard machines, but we are able to also customize machines to meet your unique needs.
Your Professional Vertical Injection Molding Machine Manufacturer-TAIFU
We are ready to provide a well-built, high-performance products. Contact Us Now!
Q1:What are the advantages of your machine?
A:Clamping is designed with a direct-pressing sub-mother type locking cylinder,which can quickly clamping and slow low-pressure clamping, and improve the service life of the die.With high performance,high response and high precision multi-function industrial control computer,forming is more convenient.
Q2: How long is your delivery time?
A: Small machines are in stock. Generally, the delivery time of standard machines is 7~35 working days. For customized machines, it will be 40~60 working days.
Q3: How long is the warranty time?
A: 1 year warranty for all the machines. We provide free parts for any not man-made damages and quality problems. Our technical support will accompany with you during the machines' lifetime. If machines are operated properly, it can service more than 20 years.
Q4: Payment terms?
A: 50% in advance, 50% balance before shipment by T/T. or L/C at sight.
