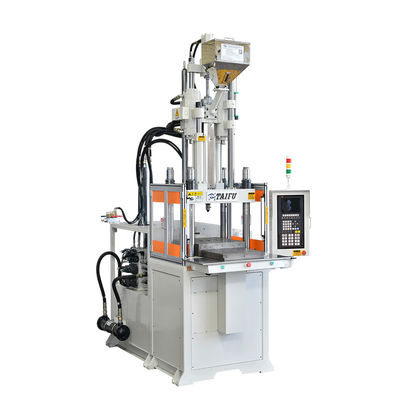

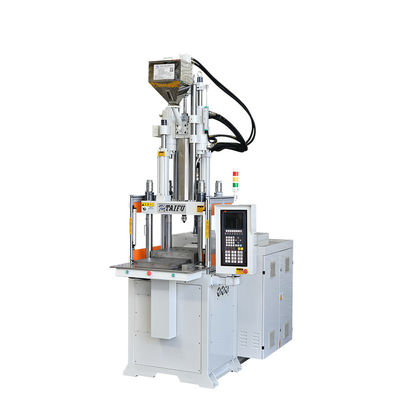

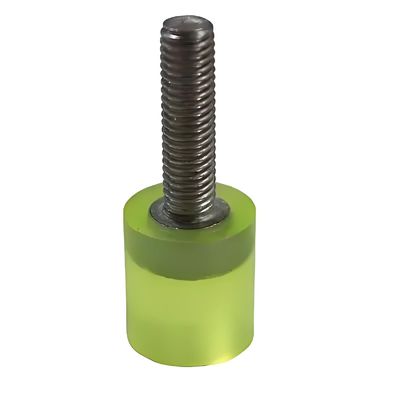

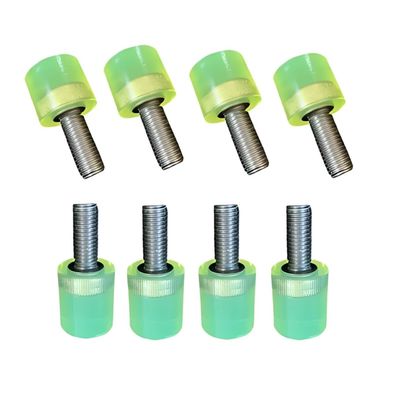

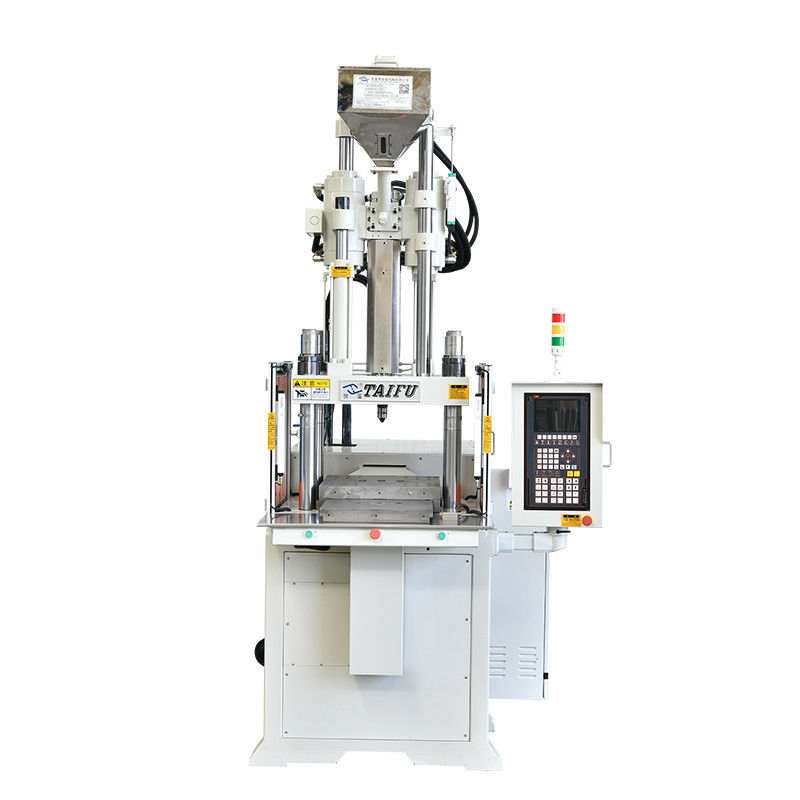

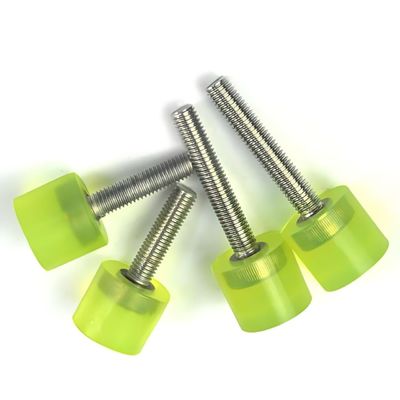

55 Ton Single Slide Vertical Injection Molding Machine For Making Screw
It is available to customize machines to meet your...
TAIFU-Product Catalog -.pdf
We are a professional manufacturer of vertical injection molding machines with 17 years of manufacturing experience. The Single Slide Vertical Injection Molding is one of our main products. The product models include 35-400 tons.
Vertical mold clamping, vertical injection. After the injection molding is completed, the product push out of the upper template space, making it easier for workers to operate. At the same time, robots and automation can be optionally installed for fully automated production.
We can customize and develop according to the actual needs of customers and provide the most precise, efficient and economical personalized combination solution.
| ITEM |
UNIT |
TFV4-55S |
| INJECTION UNIT |
| Screw stroke |
mm |
140 |
| Screw Diameter |
mm |
28 |
30 |
32 |
| Theoretical Injection Volume |
cm3 |
86 |
99 |
113 |
| Injection Weight(PS) |
g |
80 |
92 |
105 |
| oz |
2.83 |
3.25 |
3.69 |
| Max.Injection Pressure |
Mpa |
213 |
185 |
163 |
| kgf/cm2 |
2170 |
1890 |
1661 |
| Screw Speed Rotation |
r.p.m |
10~300 |
| Positioning ring diameter |
mm |
110 |
| CLAMPING UNIT |
| Clamping Force |
KN(ton) |
539(55) |
| Clamping Stroke |
mm |
200 |
| QTY of Ejector |
pcs |
3 |
| Top bar spacing |
mm |
80 |
| Ejector Distance |
mm |
100 |
| Ejector Force |
KN(ton) |
26.5(2.7) |
| OTHERS |
| System Pressure |
Mpa(kgf/cm2) |
13.7(140) |
| Oil Tank Capacity |
L |
140 |
| Electric Power |
KW |
7.5 |
| Heater Power |
KW |
5.5 |
| Machine Dimensions |
L*W |
m |
2.05*1.3 |
| H(Excluding shock-absorbing feet) |
m |
Min:2.32(Max:2.9) |
| Cooling water capacity |
L/min |
35 |
| Machine Weight |
ton |
1.9 |
· WHO WE ARE
TAIFU Machinery is a professional manufacturer of vertical injection molding machines integrated with strong capabilities of R&D, manufacturing and services, with more than 15 years manufacturing experience; 100 employees; 15,000 square feet of manufacturing floor spaces and with facility in the Dongguan city, Guangdong province, China. We are certified by ISO9001, CE and patents 20 inventions.
We aims to supply quality products and excellent services to create value for customers on the basis of integrity, innovation, and win-win cooperation. TAIFU Machinery will be your most valuable and reliable partner in business.
· OFFICE AREA
We have 15,000 square feet of manufacturing floor space and with facilities in China. All the machines are manufactured by our own employees in our own factory.
· Parts processing center
- Machine assembly workshop
- Finished product machine shop
- PHOTOS OF DIFFERENT EXHIBITIONS
We products and delivers more than 2,000 sets of vertical injection molding machines annually. All the machines will be packed well before shipment.
We provide one-stop solutions of plastic injection molding from raw material to automation, trying to create more values for our customers.
For more than 15 years, we have recognized our customers as long-term partners, growing together. Take advantage of this global strength, and grow with us as we grow with you.
There are wide range of vertical plastic injection molding machines (thermoplastic, rubber) we provide, including Rotary table vertical injection molding machine, Bakelite machine, BMC Machine, LSR silicone injection molding machine, C-type vertical injection molding machine, etc. Not only can we provide standard machines, but we are able to also customize machines to meet your unique needs.
- WHAT WE DO
- GROUP PHOTO OF EMPLOYEES
Your Professional Vertical Injection Molding Machine Manufacturer-TAIFU
We are ready to provide a well-built, high-performance products. Contact Us Now!
Q1: Are you a manufacturer or trader?
A: We are a manufacturer based in Dongguan, China's largest industrial hub. All our machines are produced in our factory by our skilled team. And we provide high quality injection molding machines with low minimum order, reasonable prices, and fast delivery.
Q2:What are the advantages of slide injection molding machines?
A:It has the functions of fast mold clampng,low pressure and slow mold closing, and low pressure mold protection, the single-slide reciprocating design effectively improves the flexibility and safety of production.
Q3: What are your payment terms?
A:T/T 50% in deposite,50% before departure.
Q4: How about your delivery time?
A:Generally speaking, it will take 20 to 45 days after receiving the advance payment. The specific delivery time depends on regarding your order and quantity.
