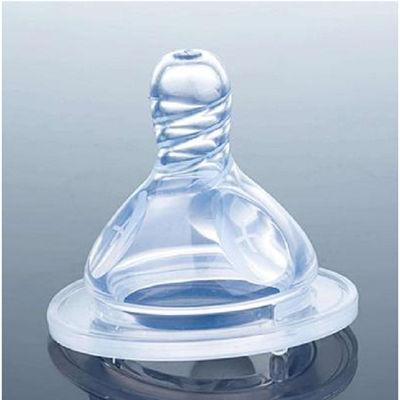

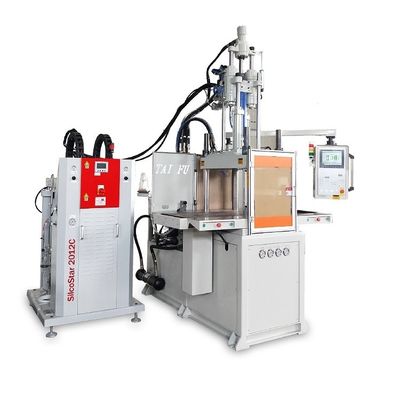

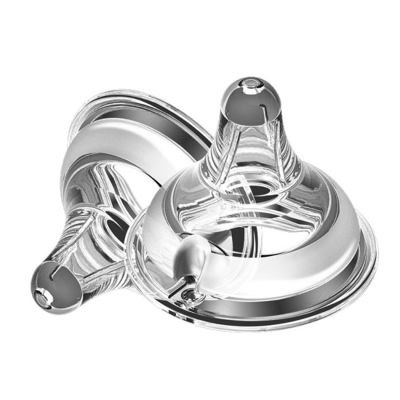

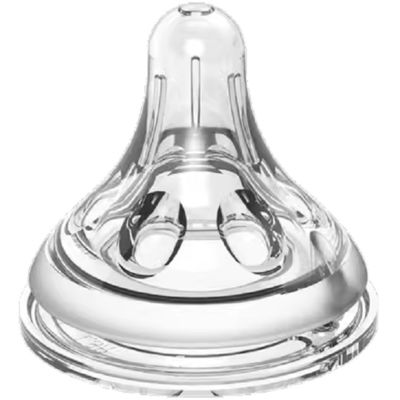

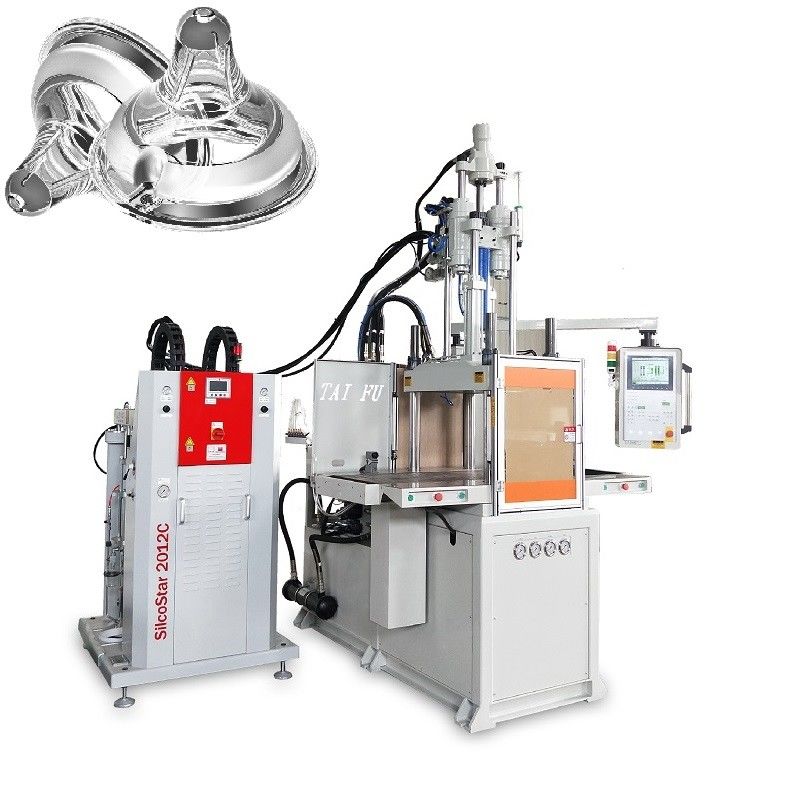

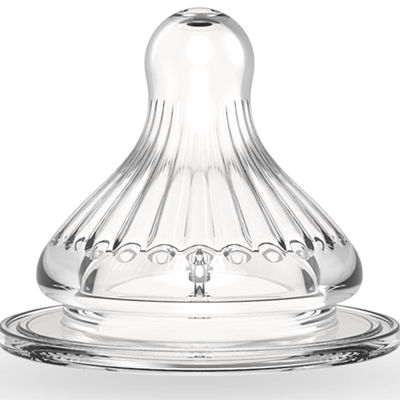

Double Slide Liquid Silicone Injection Molding Machine For Children'S Pacifier

Double Slide Liquid Silicone Injection Molding Machine For Children'S Pacifier



It is available to customize machines to meet your...

TAIFU-Product Catalog -.pdf

Company Production -TAIFU-.pdf



We are a professional manufacturer of vertical injection molding machines with 17 years of manufacturing experience. The liquid silicone injection molding machine is one of our main products. The product models include 15-1800 tons, and the injection volume can be from 3 grams to 3000 grams.



Vertical mold clamping, vertical injection. After the injection molding is completed, the product push out of the upper template space, making it easier for workers to operate. At the same time, robots and automation can be optionally installed for fully automated production.



We can customize and develop according to the actual needs of customers and provide the most precise, efficient and economical personalized combination solution.





				TFV4-85SD-LSR
INJECTION UNIT				Z8
		Screw stroke		140
		Screw Diameter		30	30
		Theoretical Injection Volume		99	99
		Injection Weight(LSR)		109	133
				3.84	4.67
		Max.Injection Pressure		133	117
				1361	1196
		Injection Rate		137	156
		Max Injection Speed		194
		Screw Speed Rotation		10~280
		Positioning ring diameter		120
		Nozzle Out From Platens		≥45
CLAMPING UNIT		合模力Clamping Force		833(85)
		合模行程Clamping Stroke		250
		Skate size		1120*500
		QTY of Ejector		3
		Top bar spacing		80
		Ejector Distance		100
		Ejector Force		26.5(2.7)
OTHERS		System Pressure		13.7(140)
		Oil Tank Capacity		280
		Electric Power		11+2.2
		Heating Power		7.0
		Machine Dimensions	L*W	2.1*1.9
			H	Min:2.8(Max:3.5)
		Cooling water capacity		40
		Machine Weight		4.3





























· WHO WE ARE



TAIFU Machinery is a professional manufacturer of vertical injection molding machines integrated with strong capabilities of R&D, manufacturing and services, with more than 15 years manufacturing experience; 100 employees; 15,000 square feet of manufacturing floor spaces and with facility in the Dongguan city, Guangdong province, China. We are certified by ISO9001, CE and patents 20 inventions.

We aims to supply quality products and excellent services to create value for customers on the basis of integrity, innovation, and win-win cooperation. TAIFU Machinery will be your most valuable and reliable partner in business.













We have 15,000 square feet of manufacturing floor space and with facilities in China. All the machines are manufactured by our own employees in our own factory.



• FACTORY AREA







• Machine assembly workshop







• Warehouse





• Finished product machine shop









• PHOTOS OF DIFFERENT EXHIBITIONS







• DELIVERY

We products and delivers more than 2,000 sets of vertical injection molding machines annually. All the machines will be packed well before shipment.











• CUSTOMER SITES

We provide one-stop solutions of plastic injection molding from raw material to automation, trying to create more values for our customers.









For more than 15 years, we have recognized our customers as long-term partners, growing together. Take advantage of this global strength, and grow with us as we grow with you.





• COOPERATIVE CLIENTS





There are wide range of vertical plastic injection molding machines (thermoplastic, rubber) we provide, including Rotary table vertical injection molding machine, Bakelite machine, BMC Machine, LSR silicone injection molding machine, C-type vertical injection molding machine, etc. Not only can we provide standard machines, but we are able to also customize machines to meet your unique needs.





• WHAT WE DO



There are wide range of vertical plastic injection molding machines (thermoplastic, rubber) we provide, including Rotary table vertical injection molding machine, Bakelite machine, BMC Machine, LSR silicone injection molding machine, C-type vertical injection molding machine, etc. Not only can we provide standard machines, but we are able to also customize machines to meet your unique needs.



• GROUP PHOTO OF EMPLOYEES







Your Professional Vertical Injection Molding Machine Manufacturer-TAIFU



We are ready to provide a well-built, high-performance products. Contact Us Now!





Q1: Are you a trading company or manufacturer?

A: We are a factory located in Dongguan city-the largest industrial manufacturing area in China. All the machines are manufactured by our own employees in our own factory.



Q2: Packaging and shipping?
The spool is plastic-covered inside and cartoned outside. Or according to your request.



Q3: What are your payment terms?
A:50% in deposite,50% balance before shipment. Or L/C at sight.



Q4: Do you test all goods before delivery?
Yes, we have 100% testing before delivery

Q5: How about your delivery time?
A:Generally speaking, it will take 20 to 45 days after receiving the advance payment. The specific delivery time depends on regarding your order and quantity.





If you are interested in it, please contact me without hesitation!

---
