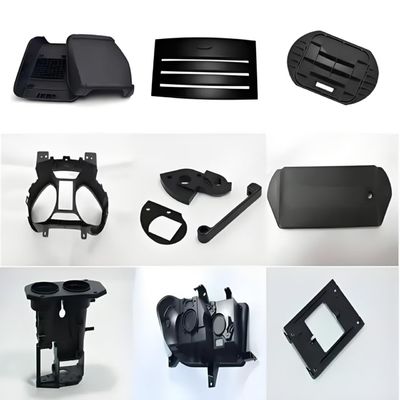

High Efficiency Rotary Vertical Plastic Injection Molding Machine For Making Auto Parts
It is available to customize machines to meet your...
Company Production -TAIFU-.pdf
We can customize and develop according to the actual needs of customers and provide the most precise, efficient and economical personalized combination solution.
We are a professional manufacturer of vertical injection molding machines with 17 years of manufacturing experience. Quality for the international market, introducing advanced technologies from Germany and Japan.

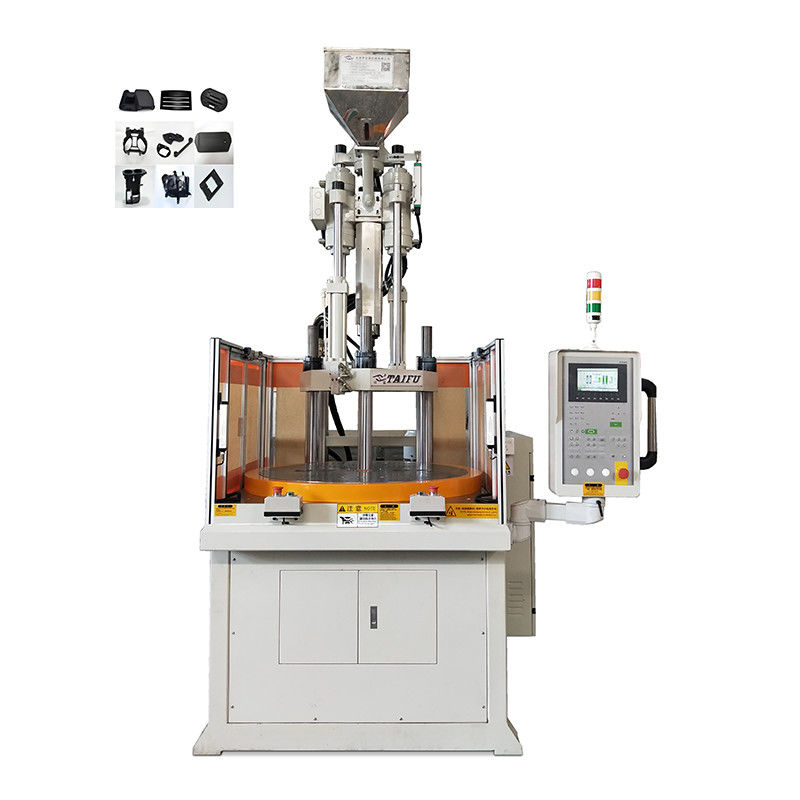

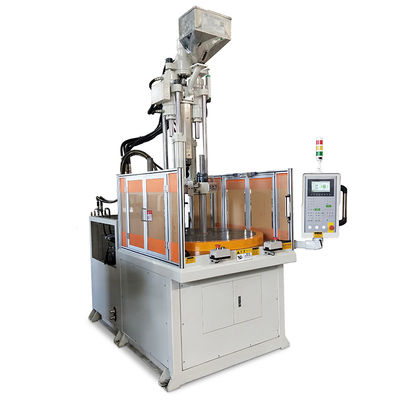

The rotary vertical injection molding machine is one of our main products. The product models include 35-1800 tons, and the injection volume can be from 3 grams to 3000 grams.
Vertical mold clamping, vertical injection.
After the injection molding is completed, the product push out of the upper template space, making it easier for workers to operate. At the same time, robots and automation can be optionally installed for fully automated production.
| Items |
Unit |
TFV3-55R2 |
| Injection Unit |
| Screw Diameter |
mm |
28 |
32 |
36 |
| Theoretical Injection Volume |
cm³ |
86 |
113 |
143 |
| Injection Weight |
g |
80 |
105 |
133 |
| Max. Injection Pressure |
Mpa |
213 |
163 |
129 |
| Injection Speed |
mm/s |
105 |
| Screw Speed Rotation |
r.p.m |
10~300 |
| Clamping Unit |
| Clamping Force |
KN |
539(55) |
| Clamping Stroke |
mm |
200 |
| Ejector Force |
KN |
26.5(2.7) |
| Others |
| System Pressure |
Mpa |
13.7(140) |
| Heater Power |
KW |
5.5 |
· WHO WE ARE
TAIFU Machinery is a professional manufacturer of vertical injection molding machines integrated with strong capabilities of R&D, manufacturing and services, with more than 15 years manufacturing experience; 100 employees; 15,000 square feet of manufacturing floor spaces and with facility in the Dongguan city, Guangdong province, China. We are certified by ISO9001, CE and patents 20 inventions.
We aims to supply quality products and excellent services to create value for customers on the basis of integrity, innovation, and win-win cooperation. TAIFU Machinery will be your most valuable and reliable partner in business.
· OFFICE AREA
We have 15,000 square feet of manufacturing floor space and with facilities in China. All the machines are manufactured by our own employees in our own factory.
· Parts processing center
- Machine assembly workshop
- Finished product machine shop
- PHOTOS OF DIFFERENT EXHIBITIONS
We products and delivers more than 2,000 sets of vertical injection molding machines annually. All the machines will be packed well before shipment.
We provide one-stop solutions of plastic injection molding from raw material to automation, trying to create more values for our customers.
For more than 15 years, we have recognized our customers as long-term partners, growing together. Take advantage of this global strength, and grow with us as we grow with you.
There are wide range of vertical plastic injection molding machines (thermoplastic, rubber) we provide, including Rotary table vertical injection molding machine, Bakelite machine, BMC Machine, LSR silicone injection molding machine, C-type vertical injection molding machine, etc. Not only can we provide standard machines, but we are able to also customize machines to meet your unique needs.
There are wide range of vertical plastic injection molding machines (thermoplastic, rubber) we provide, including Rotary table vertical injection molding machine, Bakelite machine, BMC Machine, LSR silicone injection molding machine, C-type vertical injection molding machine, etc. Not only can we provide standard machines, but we are able to also customize machines to meet your unique needs.
Your Professional Vertical Injection Molding Machine Manufacturer-TAIFU
We are ready to provide a well-built, high-performance products. Contact Us Now!
Q1:What are the advantages of Rotary Vertical injection molding machines?
A:During the inner side injection molding process, the outer side is synchronously ejected for product retrieval and placement, improving production efficiency by 30%-50%.
Q2:Do you provide installation services?
A:Yes, we will arrange employees to help install machines locally according to customer needs.
Q3: What are your payment terms?
A:T/T 50% in deposite,50% before departure.
Q4:How do you handle packaging and shipping?
A: Our spool are plastic-lined inside and packaged in cartons for safe transportation. However,we can also customize the packaging according to your specific requirements.
