High Performance Vertical Injection Molding Machine Making Chip Integrated Circuit



High Performance Vertical Injection Molding Machine Making Chip Integrated Circuit



It is available to customize machines to meet your...

TAIFU-Product Catalog -.pdf

Company Production -TAIFU-.pdf





TAIFU 35 Ton Standard Vertical Injection Molding Machine is a specialized machine used for turning holder. It is designed to provide accurate and safe operation, making it suitable for insert molding. The machine features a vertical direct hydraulic clamping system, which ensures precise molding and reduces production costs.





We can customize and develop according to the actual needs of customers and provide the most precise, efficient and economical personalized combination solutions.



1. Sepcifications:



ITEMS UNIT TFV4-35 INJECTION UNIT Screw Diameter mm 22 28 32 Theoretical Injection Volume cm3 53 86 112 Injection Weight(PS) g 49 80 104 　 oz 1.7 2.8 3.6 Max.Injection Pressure Mpa 248 153 117 　 kgf/cm2 2530 1562 1196 Injection Rate cm3/s 44 71 93 Injection Speed mm/s 116 Screw Speed Rotation r.p.m 0~240 Nozzle Out From Platens mm ≥45 CLAMPING UNIT Clamping Force KN(tf) 343(35)/441(45) Clamping Stroke mm 200 Min.Mold Thickness mm 150(210) Max.Opening mm 350(410) (L*W)Distance Between Tie Bars mm 410*220 (L*W)Max.Mould Size mm 400*350 Table Size mm 560*370 Ejector Distance mm 40 Ejector Force KN(tf) 17.2(1.75) OTHERS System Pressure Mpa(kgf/cm2) 13.7(140) Oil Tank Capacity L 130 Electric Power KW(HP) 5.5(7.5)/7.5(10) Heater Power KW 3.6 Machine Dimensions m(L*W*H) 1.6*1.2*2.7 Machine Weight tf 1.3

2. Features:

• Vertical mold-locking, vertical injection
• Occupy less space.
• Clamping is designed with a direct-pressing sub-mother type locking cylinder, which can quickly clamping and slow low-pressure clamping, and improve the service life of the mold.
• With high performance, high response and high precision multi-function industrial control computer, forming is more convenient.

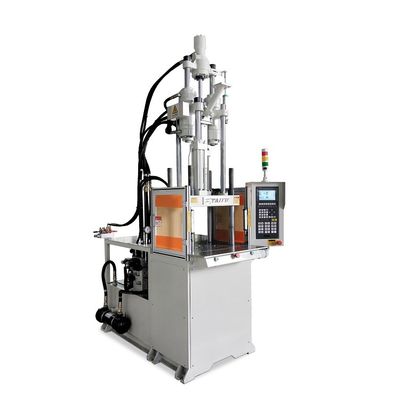

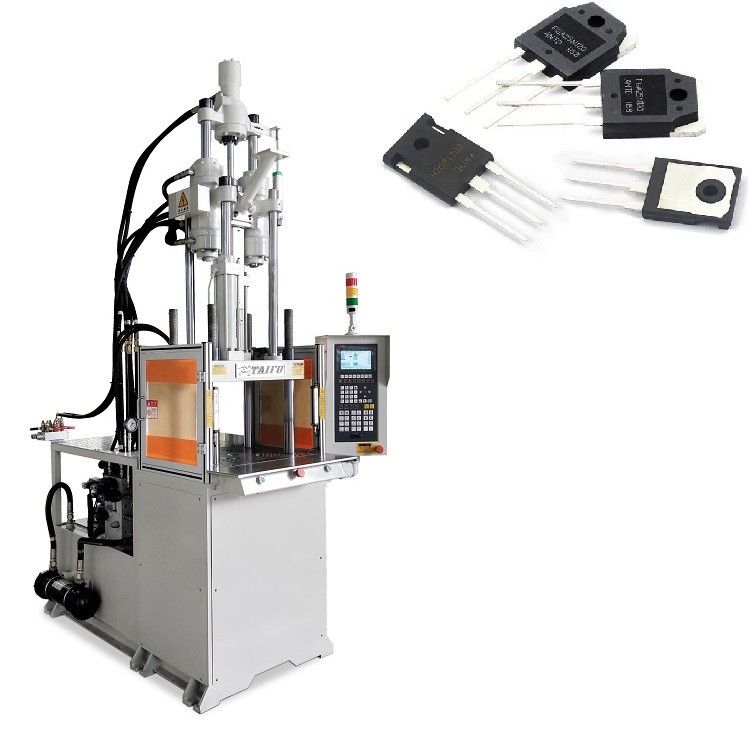

3. Machine Pictures:

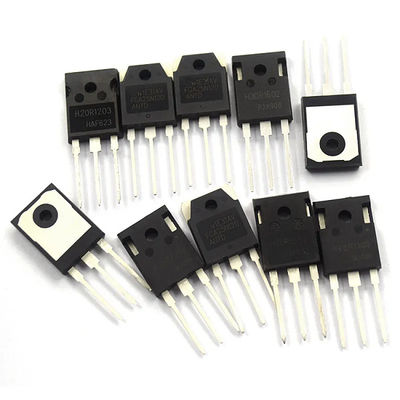

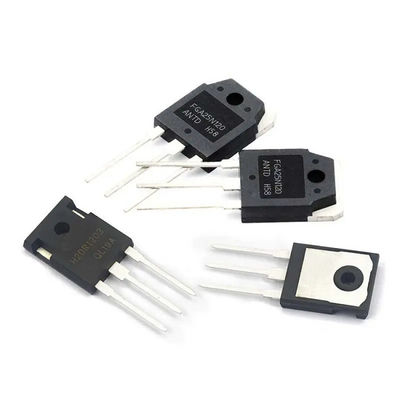

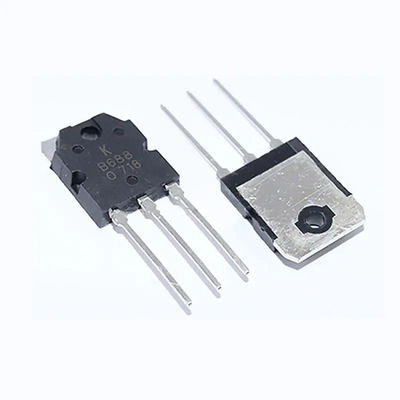

4. Applications:



















· WHO WE ARE





TAIFU Machinery is a professional manufacturer of vertical injection molding machines integrated with strong capabilities of R&D, manufacturing and services, with more than 15 years manufacturing experience; more than 100 employees; 15,000 square feet of manufacturing floor spaces and with facility in the Dongguan city, Guangdong province, China. We are certified by ISO9001, CE and patents 20 inventions.

We aims to supply quality products and excellent services to create value for customers on the basis of integrity, innovation, and win-win cooperation. TAIFU Machinery will be your most valuable and reliable partner in business.



























We have 15,000 square feet of manufacturing floor space and with facilities in China. All the machines are manufactured by our own employees in our own factory.





• FACTORY AREA



· Parts processing center







• Machine assembly workshop







• Warehouse







• Finished product machine shop









• PHOTOS OF DIFFERENT EXHIBITIONS











• DELIVERY

We products and delivers more than 2,000 sets of vertical injection molding machines annually. All the machines will be packed well before shipment.









• CUSTOMER SITES

We provide one-stop solutions of plastic injection molding from raw material to automation, trying to create more values for our customers.







For more than 15 years, we have recognized our customers as long-term partners, growing together. Take advantage of this global strength, and grow with us as we grow with you.





• COOPERATIVE CLIENTS





There are wide range of vertical plastic injection molding machines (thermoplastic, rubber) we provide, including Rotary table vertical injection molding machine, Bakelite machine, BMC Machine, LSR silicone injection molding machine, C-type vertical injection molding machine, etc. Not only can we provide standard machines, but we are able to also customize machines to meet your unique needs.



• WHAT WE DO



There are wide range of vertical plastic injection molding machines (thermoplastic, rubber) we provide, including Rotary table vertical injection molding machine, Bakelite machine, BMC Machine, LSR silicone injection molding machine, C-type vertical injection molding machine, etc. Not only can we provide standard machines, but we are able to also customize machines to meet your unique needs.



• GROUP PHOTO OF EMPLOYEES







Your Professional Vertical Injection Molding Machine Manufacturer-TAIFU



We are ready to provide a well-built, high-performance products. Contact Us Now!





5. FAQ:



Q: What  are the advantages of the machine ?

A:   The machine has strong applicability, such as electronic parts,electrical parts,medical supplies,stationery supplies,sports goods,hardware and plastics,auto parts,ect.



Q: Are you a trading company or manufacturer?

A: We are a factory located in Dongguan city-the largest industrial manufacturing area in China. All the machines are manufactured by our own employees in our own factory.



Q: How long is the warranty time?

A: 365 days warranty for all the machines. We provide free parts for any not man-made damages and quality problems. Our technical support will accompany with you during the machines' lifetime. If machines are operated properly, it can service more than 20 years.
