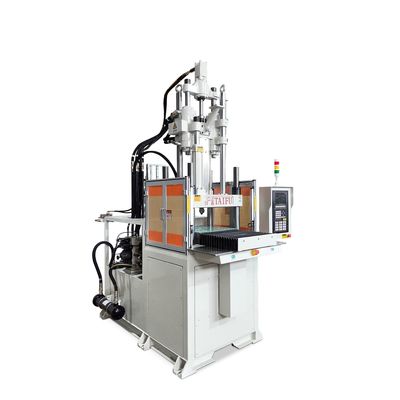

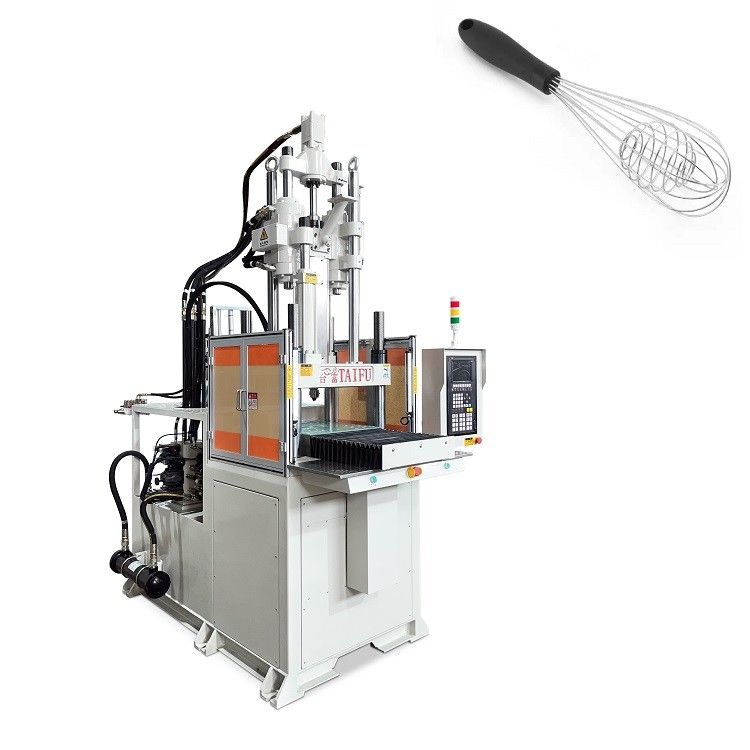

Single Slide Egg Beater Making Machine Vertical Injection Moulding Machine

Single Slide Egg Beater Making Machine Vertical Injection Molding Machine





Company Production -TAIFU-.pdf

It is available to customize machines to meet your...

TAIFU-Product Catalog -.pdf



The clamping force specifications of TAIFU single slide vertical injection molding machines range from 25 tons to 1800 tons.







ITEMS		UNIT	TFV4-85S
Injection Unit
Screw Diameter		mm	32	36	40
Injection Weight(PS)		g	105	133	164
		oz	3.69	4.67	5.77
Injection Pressure		kgf/cm3	2331	1842	1492
Injection Rate		cm3/s	100	126	156
Injection Speed		mm/s	124
Screw Speed Rotation		r.p.m	10-280
Nozzle Out From Platens		mm	≥45
Claping Unit
Clamping Force		tf	85/100
Clamping Stroke		mm	250
Ejector Distance		mm	100
Ejector Force		tf	2.7
Others
System Pressure		Mpa(kgf/cm3)	13.7(140)/17.2(145)
Oil Tank Capacity		L	280
Machine Weight		ton	3.9
Machine Dimensions		m(L*W*H)	2.2*1.5







































· WHO WE ARE





TAIFU Machinery is a professional manufacturer of vertical injection molding machines integrated with strong capabilities of R&D, manufacturing and services, with more than 15 years manufacturing experience; 100 employees; 15,000 square feet of manufacturing floor spaces and with facility in the Dongguan city, Guangdong province, China. We are certified by ISO9001, CE and patents 20 inventions.

We aims to supply quality products and excellent services to create value for customers on the basis of integrity, innovation, and win-win cooperation. TAIFU Machinery will be your most valuable and reliable partner in business.



























We have 15,000 square feet of manufacturing floor space and with facilities in China. All the machines are manufactured by our own employees in our own factory.





• FACTORY AREA



· Parts processing center







• Machine assembly workshop







• Warehouse







• Finished product machine shop









• PHOTOS OF DIFFERENT EXHIBITIONS











• DELIVERY

We products and delivers more than 2,000 sets of vertical injection molding machines annually. All the machines will be packed well before shipment.









• CUSTOMER SITES

We provide one-stop solutions of plastic injection molding from raw material to automation, trying to create more values for our customers.







For more than 15 years, we have recognized our customers as long-term partners, growing together. Take advantage of this global strength, and grow with us as we grow with you.





• COOPERATIVE CLIENTS





There are wide range of vertical plastic injection molding machines (thermoplastic, rubber) we provide, including Rotary table vertical injection molding machine, Bakelite machine, BMC Machine, LSR silicone injection molding machine, C-type vertical injection molding machine, etc. Not only can we provide standard machines, but we are able to also customize machines to meet your unique needs.





• WHAT WE DO



There are wide range of vertical plastic injection molding machines (thermoplastic, rubber) we provide, including Rotary table vertical injection molding machine, Bakelite machine, BMC Machine, LSR silicone injection molding machine, C-type vertical injection molding machine, etc. Not only can we provide standard machines, but we are able to also customize machines to meet your unique needs.



• GROUP PHOTO OF EMPLOYEES





Your Professional Vertical Injection Molding Machine Manufacturer-TAIFU



We are ready to provide a well-built, high-performance products. Contact Us Now!

Q1: Do you test all goods before delivery?
A: Yes, we have 100% testing before delivery



Q2:How do you handle packaging and shipping?

A: Our spool are plastic-lined inside and packaged in cartons for safe transportation.However,we can also customize the packaging according to your specific requirements.



Q3: What are your terms of payment?

A: 50%T/T in advance, 50% balance before shipment.



Q4:What advantages of the single slide vertical injection molding machine?

A:It has the functions of fast mold clampng, low pressure and slow mold closing, and low pressure mold protection, and the product is taken out outside the mold clamping area, which is convenient and safe to operate.



Q5: What types of products can be produced using a vertical injection molding machine?
Vertical injection molding machines are commonly used for producing products such as insert-molded components, overmolded products, vertical overmolded cables and connectors, and small precision parts.



If you are interested in it, please contact me without hesitation!



Email:sales003@dg-taifu.com

Whatsapp:86 18028207716

Contact Person: Martina
