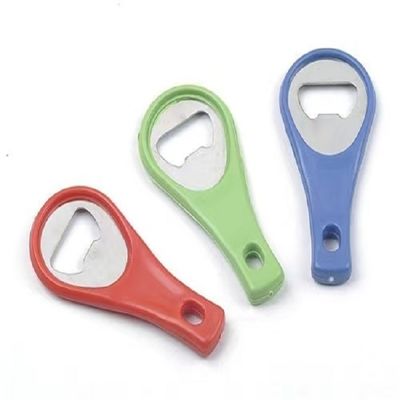

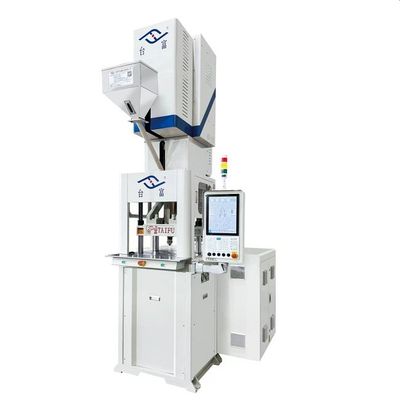

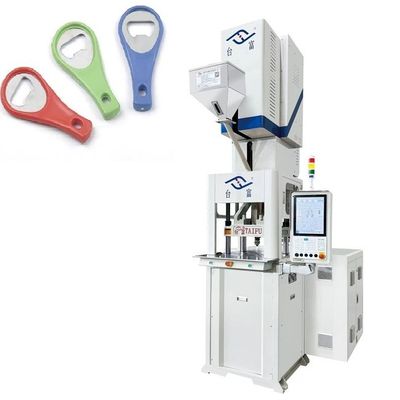

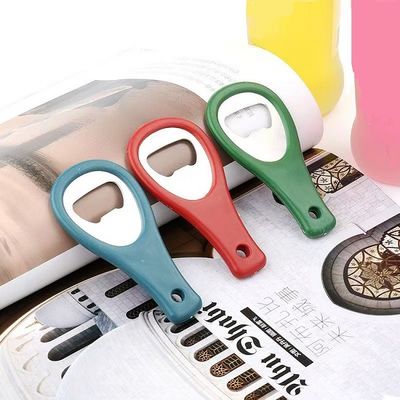

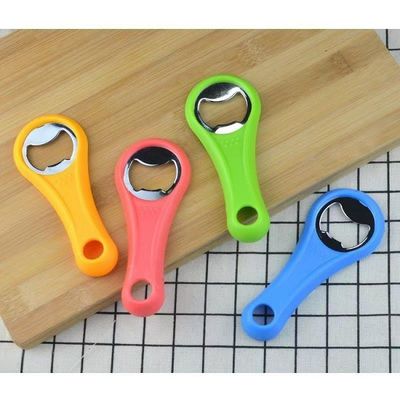

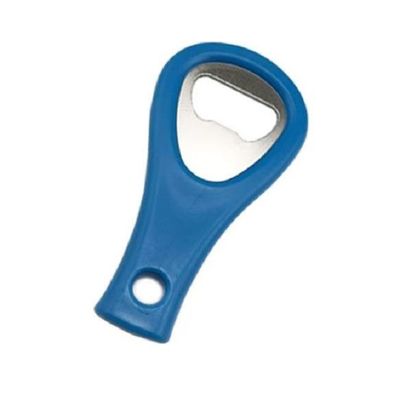

Oil Electric Hybrid Vertical Injection Molding Machine Making Bottle Opener
It is available to customize machines to meet your...
We are a professional manufacturer of vertical injection molding machines with 17 years of manufacturing experience. The electric vertical injection molding machine is one of our new version products. The product models include 15-550 tons, and the injection volume can be from 3 grams to 3000 grams. The clamping force specifications of oil electric hybrid vertical injection moulding machines range from 35 tons to 1800 tons. Vertical mold clamping, vertical injection, electrical injection.
We can customize and develop according to the actual needs of customers and provide the most precise, efficient and economical personalized combination solutions.
| Part |
UNIT |
EV5 |
EV8 |
| INJECTION UNIT |
Screw stroke |
mm |
140 |
140 |
| Screw Diameter |
mm |
26 |
28 |
30 |
32 |
36 |
40 |
| Theoretical Injection Volume |
cm3 |
74 |
86 |
99 |
113 |
143 |
176 |
| Injection Weight(PS)比重0.93 |
g |
69 |
80 |
92 |
105 |
133 |
164 |
| oz |
2.44 |
2.83 |
3.25 |
3.69 |
4.67 |
5.77 |
| Max.Injection Pressure |
Mpa |
275 |
245 |
210 |
245 |
210 |
190 |
| kgf/cm2 |
2806 |
2500 |
2143 |
2500 |
2143 |
1939 |
| Maximum holding pressure |
Mpa |
220 |
196 |
168 |
196 |
168 |
152 |
| kgf/cm2 |
2245 |
2000 |
1714 |
2000 |
1714 |
1551 |
| Screw Speed Rotation |
r.p.m |
10~400 |
10~400 |
| |
|
|
|
|
|
|
|
|
|
| |
UNIT |
TFYDV4-55 |
TFYDV4-55S |
TFYDV3-55R2 |
| CLAMPING UNIT |
Clamping Force |
kN(tf) |
539(55) |
| Clamping Stroke |
mm |
200/(可选250) |
| Min.Mold Thickness |
mm |
180(240) |
| (L*W)Max.Mould Size |
mm |
425*380 |
400*375 |
310*310 |
| QTY of Ejector |
pcs |
1 |
3 |
| Top bar spacing |
mm |
无 |
80 |
| Ejector Distance |
mm |
40 |
100 |
| Ejector Force |
kN(tf) |
17.2(1.75) |
26.5(2.7) |
| |
System Pressure |
Mpa(kgf/cm2) |
13.7(140) |
| Oil Tank Capacity |
L |
160 |
| Electric Power |
KW |
11 |
11 |
11+2.2 |
| Machine Dimensions |
L*W |
m |
1.9*1.3 |
2.05*1.3 |
2.0*1.6 |
| H |
m |
Min:2.2(Max:2.8) |
Min:2.32(Max:2.9) |
Min:2.4(Max:3.0) |
| Cooling water capacity |
L/min |
35 |
| Machine Weight |
ton |
1.8 |
2.0 |
2.9 |
Tell us your products, we are ready to provide custom solution. Contact Us Now!
TAIFU MACHINERY is a professional manufacturer of vertical injection molding machines integrated with strong capabilities of R&D, manufacturing and services, with more than 15 years manufacturing experience; 100 employees; 15,000 square feet of manufacturing floor spaces and with facility in the Dongguan city, Guangdong province, China. We are certified by ISO9001, CE and patents 20 inventions.
We aims to supply quality products and excellent services to create value for customers on the basis of integrity, innovation, and win-win cooperation. TAIFU Machinery will be your most valuable and reliable partner in business.
We have 15,000 square feet of manufacturing floor space and with facilities in China. All the machines are manufactured by our own employees in our own factory.
- Machine assembly workshop
- Finished product machine shop
- PHOTOS OF DIFFERENT EXHIBITIONS
We products and delivers more than 2,000 sets of vertical injection molding machines annually. All the machines will be packed well before shipment.
We provide one-stop solutions of plastic injection molding from raw material to automation, trying to create more values for our customers.
For more than 15 years, we have recognized our customers as long-term partners, growing together. Take advantage of this global strength, and grow with us as we grow with you.
There are wide range of vertical plastic injection molding machines (thermoplastic, rubber) we provide, including Rotary table vertical injection molding machine, Bakelite machine, BMC Machine, LSR silicone injection molding machine, C-type vertical injection molding machine, etc. Not only can we provide standard machines, but we are able to also customize machines to meet your unique needs.
Your Professional Vertical Injection Molding Machine Manufacturer-TAIFU
We are ready to provide a well-built, high-performance products. Contact Us Now!
Q:Are you a trading company or manufacturer?
A: We are a factory located in Dongguan city-the largest industrial manufacturing area in China. All the machines are manufactured by our own employees in our own factory.
Q: Do you conduct a quality check on all goods before delivery?
A: Absolutely, we ensure 100% testing of all products before delivery to guarantee their quality and reliability.
Q: How long is the warranty time?
A: 1 year warranty for all the machines. We provide free parts for any not man-made damages and quality problems. Our technical support will accompany with you during the machines' lifetime. If machines are operated properly, it can service more than 20 years.
Q: What are your terms of payment?
A: 50%TT in advance, 50% balance before shipment. or L/C at sight.
If you are interested in our machines, please do not hesitate to CONTACT US!
