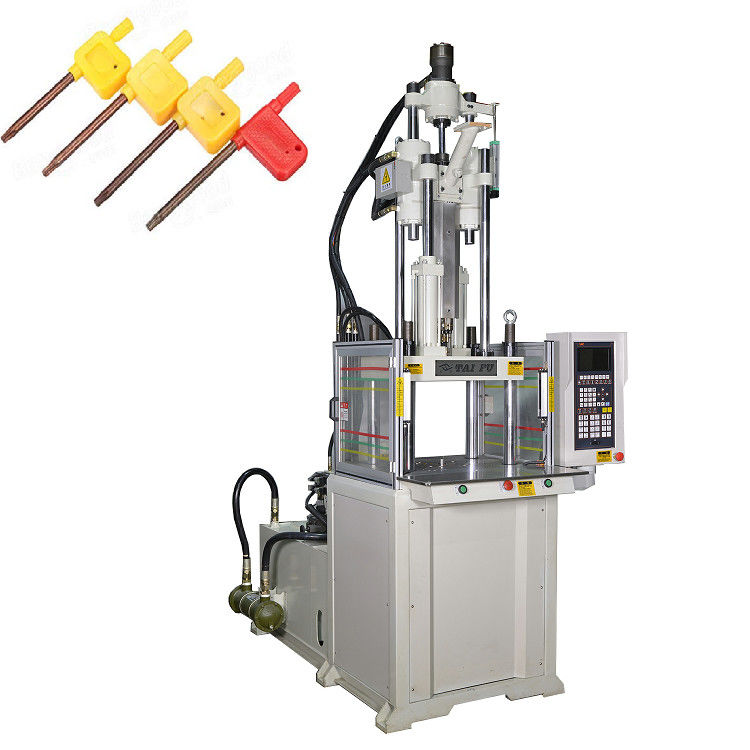

Turning Holder Making Machine Vertical Plastic Injection Moulding Machine

Turning Holder Making Machine Vertical Plastic Injection Moulding Machine
Turning Holder Making Machine Vertical Plastic Injection Moulding Machine
Turning Holder Making Machine Vertical Plastic Injection Moulding Machine Turning Holder Making Machine Vertical Plastic Injection Moulding Machine Turning Holder Making Machine Vertical Plastic Injection Moulding Machine Turning Holder Making Machine Vertical Plastic Injection Moulding Machine Turning Holder Making Machine Vertical Plastic Injection Moulding Machine Turning Holder Making Machine Vertical Plastic Injection Moulding Machine Turning Holder Making Machine Vertical Plastic Injection Moulding Machine

Large Image :  Turning Holder Making Machine Vertical Plastic Injection Moulding Machine

Product Details:
Place of Origin: China
Brand Name: TAIFU
Certification: CE,ISO9001
Model Number: TFV4-55
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: All the machines are fixed and well packaged in the plywood cases.
Delivery Time: Negotiable
Payment Terms: T/T, L/C, D/A, D/P, Western Union
Supply Ability: 220 set/month
Contact Now

Turning Holder Making Machine Vertical Plastic Injection Moulding Machine

Description
Name: Standard Vertical Injection Molding Machine Application: Plastic Turning Holder
Model: TFV4-55 Key Selling Points: Factory Price
Color: White & Blue & Yellow & Customize Warranty: 12 Months Provided
Function: Making Plastic Product Advantage: Easy To Operate
Highlight:

Plastic Injection Moulding Machine

,

Turning holder making machine

Turning holder making machine vertical plastic injection moulding machine



TAIFU-Product Catalog -.pdf

Company Production -TAIFU-.pdf





We are a professional manufacturer of vertical injection molding machine with 17 years of manufacturing experience. The vertical standard injection molding machine is one of our main products. The clamping force specifications of TAIFU rotary vertical injection molding machines range from 35 tons to 350 tons.

Vertical mold clamping, vertical injection. After the injection molding is completed, the product slides out of the upper template space, making it easier for workers to operate. At the same time, robots and automation can be optionally installed for fully automated production. It is now widely used in auto parts and new energy industry.

We can customize according to customer needs!
Please don't hesitate to contact us if you are interested.





1. Sepcifications:



ITEMS UNIT TFV4-35(45) TFV4-55
INJECTION UNIT
Screw stroke mm 140 140
Screw Diameter mm 22 28 32 26 30 36
Theoretical Injection Volume cm3 53 86 113 74 99 143
Injection Weight(PS) g 49 80 105 69 92 133
oz 1.75 2.83 3.69 2.44 3.25 4.67
Max.Injection Pressure Mpa 248 153 117 247 185 129
kgf/cm2 2531 1563 1196 2516 1890 1313
Injection Rate cm3/s 44 72 94 56 74 107
Max Injection Speed mm/s 117 105
Screw Speed Rotation r.p.m 10~300 10~300
Positioning ring diameter mm 100 110
Nozzle Out From Platens mm ≥45 ≥45
CLAMPING UNIT
Clamping Force KN(ton) 343(35)/441(45) 539(55)
Clamping Stroke mm 200 200
Min.Mold Thickness mm 150(210) 180(240)
Max.Opening mm 350(410) 380(440)
(L*W)Distance Between Tie Bars mm 410*220 445*255
(L*W)Max.Mould Size mm 400*350 425*380
(L*W)尺寸Platen Size mm 560*370 580*400
QTY of Ejector pcs 1 1
Ejector Distance mm 40 40
Ejector Force KN(ton) 17.2(1.75) 17.2(1.75)
Other
System Pressure Mpa(kgf/cm2) 13.7(140)/17.2(175) 13.7(140)
Oil Tank Capacity L 130 140
Electric Power KW 5.5/7.5 7.5
Heater Power KW 3.6 5.5
Machine Dimensions L*W m 1.6*1.2 1.9*1.3
H(Excluding shock-absorbing feet) m Min:2.15(Max:2.7) Min:2.25(Max:2.8)
Cooling water capacity L/min 25 35
Height of Workbench+(Excluding shock-absorbing feet) mm 940+(60) 1020+(60)
Machine Weight ton 1.3 1.6





2. Features:

  • Vertical mold-locking, vertical injection
  • Occupy less space.
  • Clamping is designed with a direct-pressing sub-mother type locking cylinder, which can quickly clamping and slow low-pressure clamping, and improve the service life of the mold.
  • With high performance, high response and high precision multi-function industrial control computer, forming is more convenient.

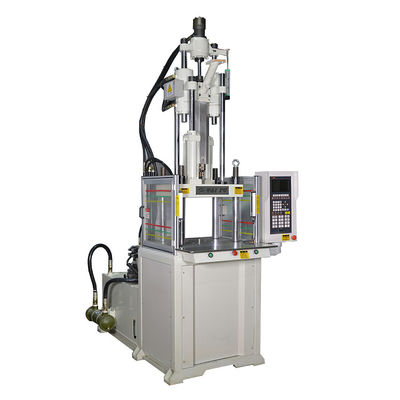

3. Machine Pictures:



Turning Holder Making Machine Vertical Plastic Injection Moulding Machine 0

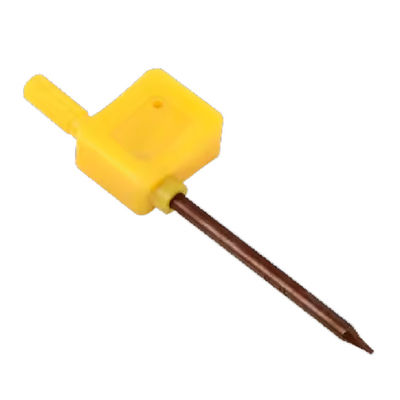

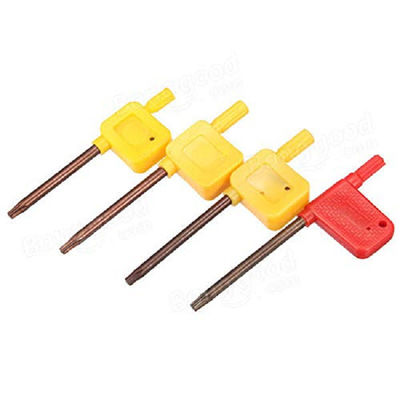

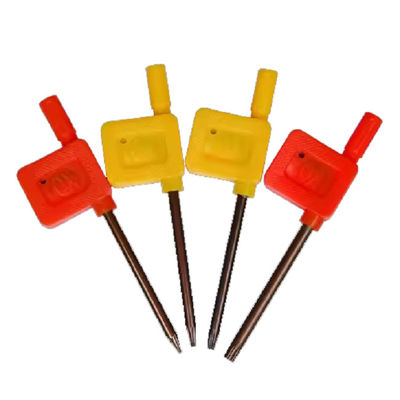

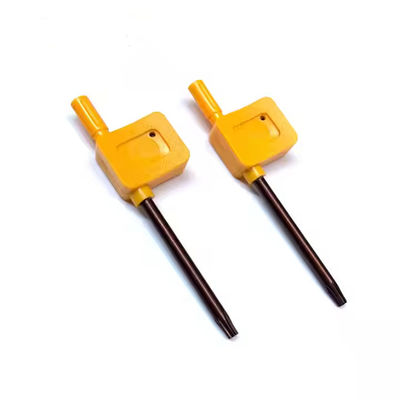

4. Applications:



Turning Holder Making Machine Vertical Plastic Injection Moulding Machine 1Turning Holder Making Machine Vertical Plastic Injection Moulding Machine 2Turning Holder Making Machine Vertical Plastic Injection Moulding Machine 3Turning Holder Making Machine Vertical Plastic Injection Moulding Machine 4



5. FAQ:



Q: How much electricity does 55 Ton Vertical Injection Molding Machine use?

A: 7.5 KW



Q: Are you a trading company or manufacturer?

A: We are a professional manufacturer of vertical plastic injection moulding machine with 17 years manufacturing experience. All the machines are manufactured by our own employees in our own factory.



Q: How long is your delivery time?

A: Small machines are in stock. Generally, the delivery time of standard machines is 7~35 working days. For customized machines, it will be 40~60 working days.



Q: How long is the warranty time?

A: One year warranty for all the machines. We provide free parts for any not man-made damages and quality problems. Our technical support will accompany with you during the machines' lifetime. If machines are operated properly, it can service more than 20 years.



Q: What are your payment terms?

A: 50%TT in advance, 50% balance before shipment. or L/C at sight.



If you are interested in our machines, please do not hesitate to CONTACT US!

Saleperson: Martina

E-mail: waimao004@dg-taifu.com

WhatsApp/WeChat: +86 13650274786
