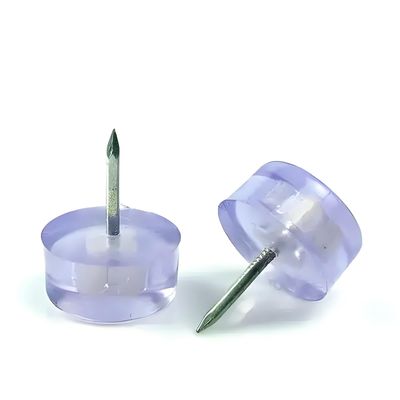

High Efficiency Rotary Vertical Plastic Injection Molding Machine For Making Tack
It is available to customize machines to meet your...
TAIFU-Product Catalog -.pdf
Dongguan Taifu Machinery Co., Ltd. was established in 2009 and is located in Dongguan, Guangdong Province. With a global perspective, we specialize in the manufacturing of injection molding equipment and are a vertical injection molding machine supplier that integrates design, research and development, production, sales, and service.
We provide high quality injection molding machines with low minimum order, reasonable prices, and fast delivery.

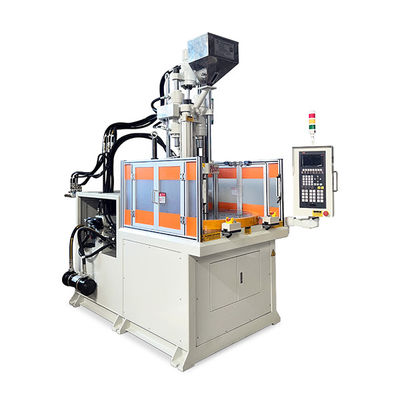

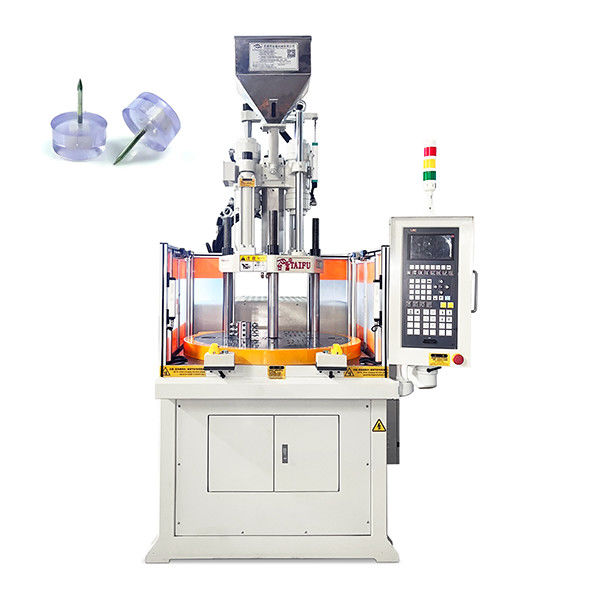

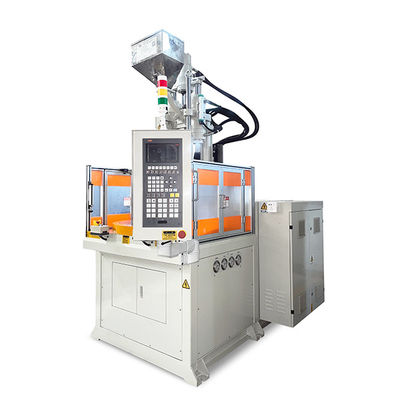

Rotary vertical injection molding machine is one of our company's main products. During the injection molding process on the inner side, the outer side synchronously pushes out for product placement, improving production efficiency by 30% ~50%. It can be equipped with automatic embedding and extraction automation equipment to achieve fully automated production.
We can customize and develop according to the actual needs of customers and provide the most precise, efficient and economical personalized combination solution.
| ITEMS |
UNIT |
TFV3-85R2 |
| Injection Unit |
Shooter configuration code |
name |
Z8 |
| Screw stroke |
mm |
140 |
| Screw Diameter |
mm |
32 |
36 |
40 |
| Theoretical Injection Volume |
cm3 |
113 |
143 |
176 |
| Injection Weight(PS) |
g |
105 |
133 |
164 |
| oz |
3.69 |
4.67 |
5.77 |
| Screw Speed Rotation |
r.p.m |
10~280 |
| Positioning ring diameter |
mm |
120 |
| Claping Unit |
Clamping Force |
KN(ton) |
833(85)/980(100) |
| Clamping Stroke |
mm |
250 |
| Top bar spacing |
mm |
80 |
| Ejector Distance |
mm |
100 |
| Ejector Force |
KN(ton) |
45(4.6) |
| Others |
System Pressure |
Mpa(kgf/cm2) |
13.7(140)/17.2(175) |
| Electric Power |
KW |
15+2.2/18+2.2 |
| Heater Power |
KW |
7 |
| Machine Dimensions |
L*W*H |
m |
2.3*1.8*2.7 |
| Machine Weight |
ton |
4.6 |
· WHO WE ARE
TAIFU Machinery is a professional manufacturer of vertical injection molding machines integrated with strong capabilities of R&D, manufacturing and services, with more than 15 years manufacturing experience; 100 employees; 15,000 square feet of manufacturing floor spaces and with facility in the Dongguan city, Guangdong province, China. We are certified by ISO9001, CE and patents 20 inventions.
We aims to supply quality products and excellent services to create value for customers on the basis of integrity, innovation, and win-win cooperation. TAIFU Machinery will be your most valuable and reliable partner in business.
· OFFICE AREA
We have 15,000 square feet of manufacturing floor space and with facilities in China. All the machines are manufactured by our own employees in our own factory.
· Parts processing center
- Machine assembly workshop
- Finished product machine shop
- PHOTOS OF DIFFERENT EXHIBITIONS
We products and delivers more than 2,000 sets of vertical injection molding machines annually. All the machines will be packed well before shipment.
We provide one-stop solutions of plastic injection molding from raw material to automation, trying to create more values for our customers.
For more than 15 years, we have recognized our customers as long-term partners, growing together. Take advantage of this global strength, and grow with us as we grow with you.
There are wide range of vertical plastic injection molding machines (thermoplastic, rubber) we provide, including Rotary table vertical injection molding machine, Bakelite machine, BMC Machine, LSR silicone injection molding machine, C-type vertical injection molding machine, etc. Not only can we provide standard machines, but we are able to also customize machines to meet your unique needs.
There are wide range of vertical plastic injection molding machines (thermoplastic, rubber) we provide, including Rotary table vertical injection molding machine, Bakelite machine, BMC Machine, LSR silicone injection molding machine, C-type vertical injection molding machine, etc. Not only can we provide standard machines, but we are able to also customize machines to meet your unique needs.
Your Professional Vertical Injection Molding Machine Manufacturer-TAIFU
We are ready to provide a well-built, high-performance products. Contact Us Now!
Q1: Are you a trading company or manufacturer?
A: We are a factory located in Dongguan city-the largest industrial manufacturing area in China. All the machines are manufactured by our own employees in our own factory.
Q2: How do you handle packaging and shipping?
A: Our spool are plastic-lined inside and packaged in cartons for safe transportation.However,we can also customize the packaging according to your specific requirements.
Q3:Do you test all goods before delivery?
A: Yes, we have 100% testing before delivery
Q4: How do you calculate tonnage for injection molding?
A: Tonnage = Volume * Maximum Safety Pressure
Therefore, it is always best to consult with an experienced injection molders to determine the exact tonnage in injection required for a specific application. Normally, 5 tons per square inch is used for calculating the clamping tonnage for any given mould.
Q5: How about your delivery time?
A:Generally speaking, it will take 20 to 45 days after receiving the advance payment. The specific delivery time depends on
Regarding your order and quantity.
