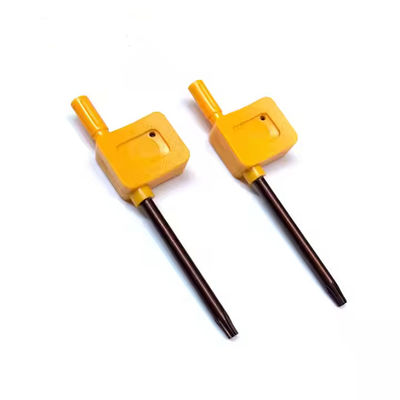

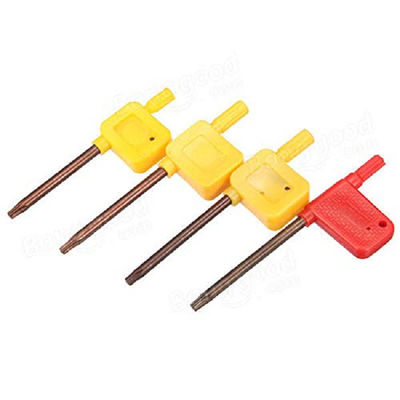

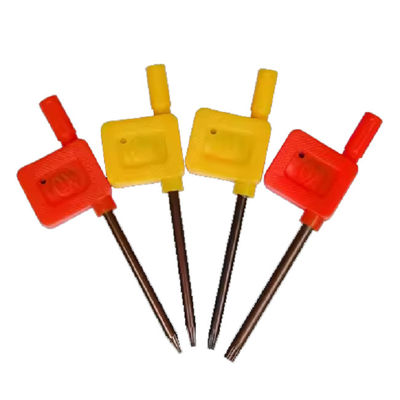

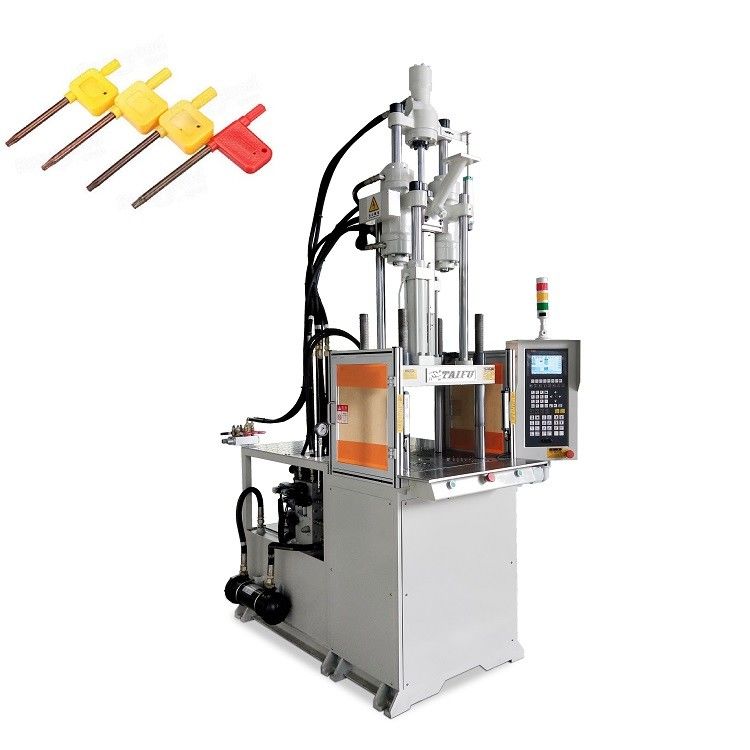

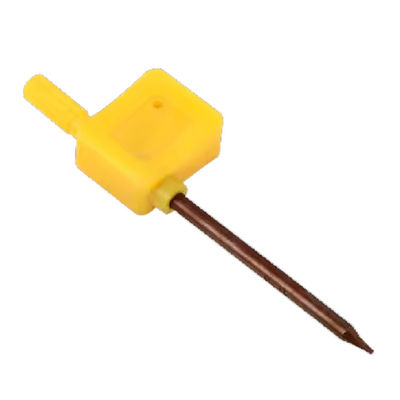

35 Ton Standard Plastic Injection Molding Machine For Making Turning Holder

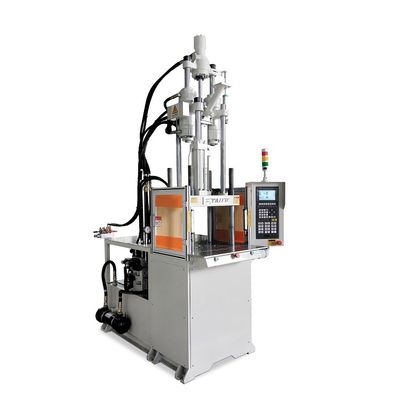

 35 Ton Standard Plastic Injection Molding Machine



It is available to customize machines to meet your...

TAIFU-Product Catalog -.pdf



We are a professional manufacturer of vertical injection molding machines with 17 years of manufacturing experience. The standard vertical injection molding machine is one of our main products. The product models include 15-550 tons, and the injection volume can be from 3 grams to 3000 grams.



Vertical mold clamping, vertical injection. After the injection molding is completed, the product push out of the upper template space, making it easier for workers to operate. At the same time, robots and automation can be optionally installed for fully automated production.



We can customize and develop according to the actual needs of customers and provide the most precise, efficient and economical personalized combination solution.



Please do not hesitate to contact us if you interest in our machines!









ITEMS+A30:E47	UNIT	TFV4-35
INJECTION UNIT
Screw Diameter	mm	22	28	32
Theoretical Injection Volume	cm3	53	86	112
Injection Weight(PS)	g	49	80	104
	oz	1.7	2.8	3.6
Max.Injection Pressure	Mpa	248	153	117
	kgf/cm2	2530	1562	1196
Injection Rate	cm3/s	44	71	93
Injection Speed	mm/s	116
Screw Speed Rotation	r.p.m	0~240
Nozzle Out From Platens	mm	≥45
CLAMPING UNIT
Clamping Force	KN(tf)	343(35)/441(45)
Clamping Stroke	mm	200
Platen Size	mm	560*370
Ejector Distance	mm	40
Ejector Force	KN(tf)	17.2(1.75)
OTHERS
System Pressure	Mpa(kgf/cm2)	13.7(140)
Oil Tank Capacity	L	130
Electric Power	KW(HP)	5.5(7.5)/7.5(10)
Heater Power	KW	3.6
Machine Dimensions	m(L*W*H)	1.6*1.2*2.7
Machine Weight	tf	1.3





























 · WHO WE ARE





TAIFU Machinery is a professional manufacturer of vertical injection molding machines integrated with strong capabilities of R&D, manufacturing and services, with more than 15 years manufacturing experience; 100 employees; 15,000 square feet of manufacturing floor spaces and with facility in the Dongguan city, Guangdong province, China. We are certified by ISO9001, CE and patents 20 inventions.

We aims to supply quality products and excellent services to create value for customers on the basis of integrity, innovation, and win-win cooperation. TAIFU Machinery will be your most valuable and reliable partner in business.



























We have 15,000 square feet of manufacturing floor space and with facilities in China. All the machines are manufactured by our own employees in our own factory.





• FACTORY AREA



· Parts processing center







• Machine assembly workshop







• Warehouse







• Finished product machine shop









• PHOTOS OF DIFFERENT EXHIBITIONS











• DELIVERY

 We products and delivers more than 2,000 sets of vertical injection molding machines annually. All the machines will be packed well before shipment.









• CUSTOMER SITES

We provide one-stop solutions of plastic injection molding from raw material to automation, trying to create more values for our customers.







For more than 15 years, we have recognized our customers as long-term partners, growing together. Take advantage of this global strength, and grow with us as we grow with you.





• COOPERATIVE CLIENTS





There are wide range of vertical plastic injection molding machines (thermoplastic, rubber) we provide, including Rotary table vertical injection molding machine, Bakelite machine, BMC Machine, LSR silicone injection molding machine, C-type vertical injection molding machine, etc. Not only can we provide standard machines, but we are able to also customize machines to meet your unique needs.





• WHAT WE DO



There are wide range of vertical plastic injection molding machines (thermoplastic, rubber) we provide, including Rotary table vertical injection molding machine, Bakelite machine, BMC Machine, LSR silicone injection molding machine, C-type vertical injection molding machine, etc. Not only can we provide standard machines, but we are able to also customize machines to meet your unique needs.



• GROUP PHOTO OF EMPLOYEES





Your Professional Vertical Injection Molding Machine Manufacturer-TAIFU



We are ready to provide a well-built, high-performance products. Contact Us Now!





Q1: Are you a trading company or manufacturer?

A: We are a factory located in Dongguan city-the largest industrial manufacturing area in China. All the machines are manufactured by our own employees in our own factory.



Q2: What are the advantages of the machine ?

A: The machine has strong applicability, such as electronic parts,electrical parts,medical supplies,stationery supplies,sports goods,hardware and plastics,auto parts,ect.



Q3:How do you handle packaging and shipping?

A: Our spool are plastic-lined inside and packaged in cartons for safe transportation.However,we can also customize the packaging according to your specific requirements.



Q4: How long is your delivery time?

A: Small machines are in stock. Generally, the delivery time of standard machines is 7~35 working days. For customized machines, it will be 40~60 working days.



Q5: What are your terms of payment?

A: 50%TT in advance, 50% balance before shipment. or L/C at sight.



If you are interested in it, please contact me without hesitation!
