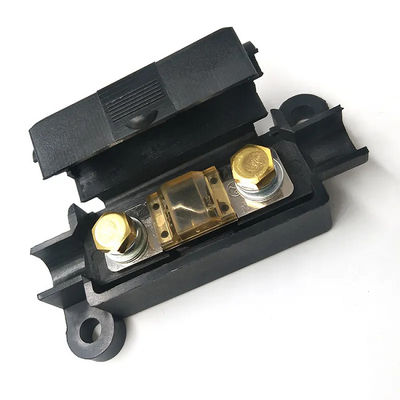

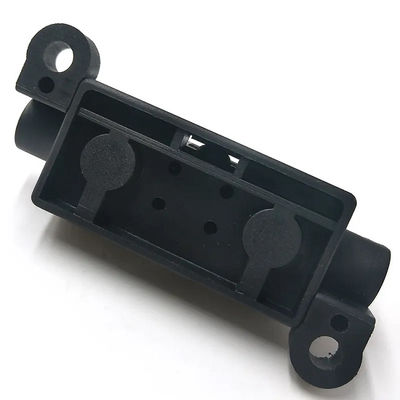

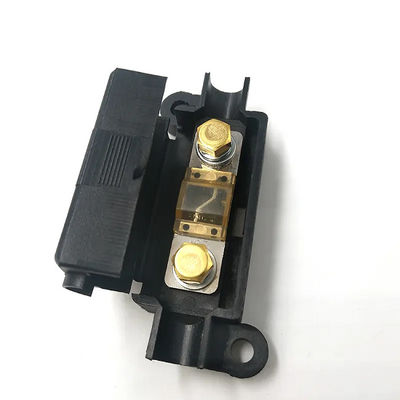

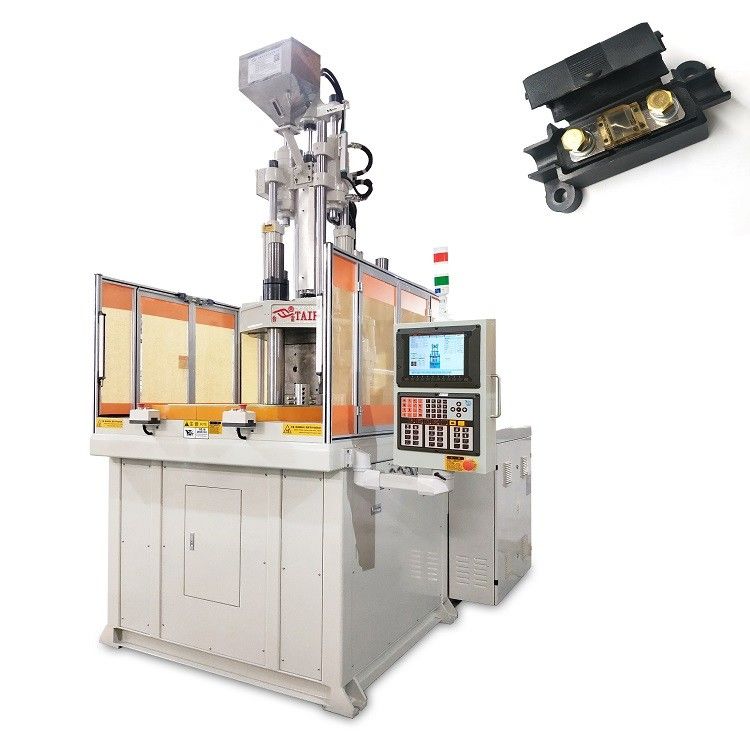

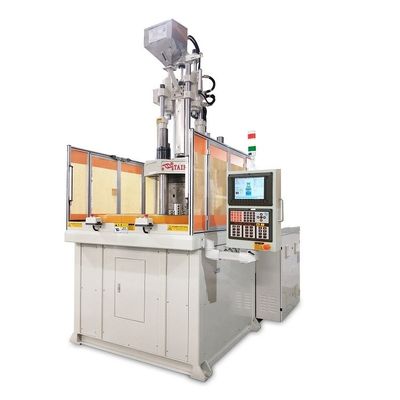

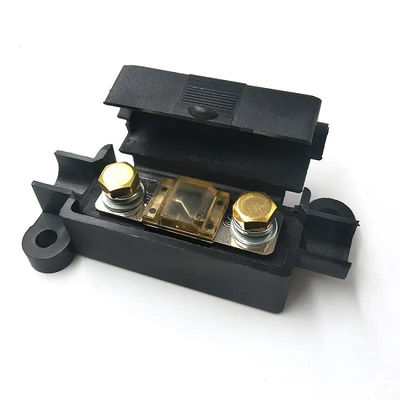

Rotary Vertical 120 Ton Plastic Injection Molding Machine For Making Fuse Holders

Rotary Vertical 120 Ton Plastic Injection Molding Machine For Making Fuse Holders





Company Production -TAIFU-.pdf



The clamping force specifications of TAIFU rotary vertical injection molding machines range from 35 tons to 1800 tons.







ITEMS		UNIT	TFV3-120R2
INJECTION UNIT
Screw stroke		mm	160
Screw Diameter		mm	36	40	45
Theoretical Injection Volume		cm3	163	201	254
Injection Weight(PS)		g	151	187	237
		oz	5.34	6.60	8.35
Max.Injection Pressure		Mpa	222	180	142
		kgf/cm2	2269	1838	1452
Screw Speed Rotation		r.p.m	10~280
Positioning ring diameter		mm	120
CLAMPING UNIT
Clamping Force		KN(ton)	1176(120)
QTY of Ejector		pcs	3
Top bar spacing		mm	80
Ejector Distance		mm	100
Ejector Force		KN(ton)	45(4.6)
OTHERS
System Pressure		Mpa(kgf/cm2)	13.7(140)
Oil Tank Capacity		L	380
Electric Power		KW	18+2.2
Heater Power		KW	10.7
Machine Dimensions	L*W	m	2.5*2.0
	H(Excluding shock-absorbing feet)	m	Min:3.3(Max:4.15)
Cooling water capacity		L/min	50
Machine Weight		ton	7.0





























· WHO WE ARE



TAIFU Machinery is a professional manufacturer of vertical injection molding machines integrated with strong capabilities of R&D, manufacturing and services, with more than 15 years manufacturing experience; 100 employees; 15,000 square feet of manufacturing floor spaces and with facility in the Dongguan city, Guangdong province, China. We are certified by ISO9001, CE and patents 20 inventions.

We aims to supply quality products and excellent services to create value for customers on the basis of integrity, innovation, and win-win cooperation. TAIFU Machinery will be your most valuable and reliable partner in business.















We have 15,000 square feet of manufacturing floor space and with facilities in China. All the machines are manufactured by our own employees in our own factory.



• FACTORY AREA





• Machine assembly workshop







• Warehouse









• Finished product machine shop









• PHOTOS OF DIFFERENT EXHIBITIONS







• DELIVERY



We products and delivers more than 2,000 sets of vertical injection molding machines annually. All the machines will be packed well before shipment.









• CUSTOMER SITES

We provide one-stop solutions of plastic injection molding from raw material to automation, trying to create more values for our customers.











For more than 15 years, we have recognized our customers as long-term partners, growing together. Take advantage of this global strength, and grow with us as we grow with you.





• COOPERATIVE CLIENTS







There are wide range of vertical plastic injection molding machines (thermoplastic, rubber) we provide, including Rotary table vertical injection molding machine, Bakelite machine, BMC Machine, LSR silicone injection molding machine, C-type vertical injection molding machine, etc. Not only can we provide standard machines, but we are able to also customize machines to meet your unique needs.





• WHAT WE DO



There are wide range of vertical plastic injection molding machines (thermoplastic, rubber) we provide, including Rotary table vertical injection molding machine, Bakelite machine, BMC Machine, LSR silicone injection molding machine, C-type vertical injection molding machine, etc. Not only can we provide standard machines, but we are able to also customize machines to meet your unique needs.



• GROUP PHOTO OF EMPLOYEES





Your Professional Vertical Injection Molding Machine Manufacturer-TAIFU



We are ready to provide a well-built, high-performance products. Contact Us Now!





Q1: Are you a trading company or manufacturer?

A: We are a factory located in Dongguan city-the largest industrial manufacturing area in China. All the machines are manufactured by our own employees in our own factory.



Q2: Do you test all goods before delivery?
Yes, we have 100% testing before delivery



Q3: What is the payment terms?
A:T/T 50% in deposite,50% before departure.



Q4:How do you handle packaging and shipping?

A: Our spool are plastic-lined inside and packaged in cartons for safe transportation.However,we can also customize the packaging according to your specific requirements.



Q5: How long is the warranty time?

A: 1 year warranty for all the machines. We provide free parts for any not man-made damages and quality problems. Our technical support will accompany with you during the machines' lifetime. If machines are operated properly, it can service more than 20 years
