35 Ton Vertical Injection Moulding Machine Making USB Charging Cable With Factory Price

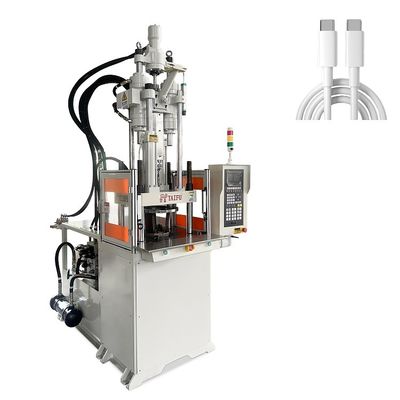

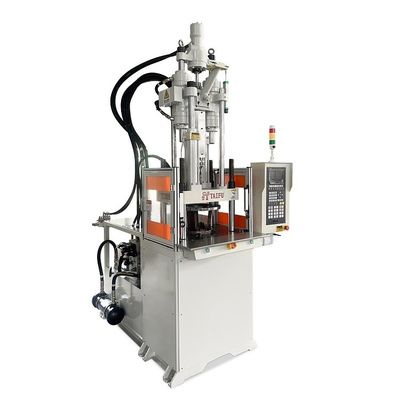

35 Ton Vertical Plastic Injection Molding Machine For USB Charging Cable



It is available to customize machines to meet your...



We are a professional manufacturer of vertical injection molding machines with 17 years of manufacturing experience. The standard vertical injection molding machine is one of our main products. The product models include 15-550 tons, and the injection volume can be from 3 grams to 3000 grams.



Vertical mold clamping, vertical injection. After the injection molding is completed, the product push out of the upper template space, making it easier for workers to operate. At the same time, robots and automation can be optionally installed for fully automated production.



We can customize and develop according to the actual needs of customers and provide the most precise, efficient and economical personalized combination solution.







ITEMS		UNIT	TFV4-35
Injection Unit
Screw Stroke		mm	140
Screw Diameter		mm	22	30	32
Theoretical injection volume		cm3	53	86	113
Injection Weight(PS)		g	49	80	105
		oz	1.75	2.83	3.69
Injection Pressure		kgf/cm3	2531	1563	1196
Injection Rate		cm3/s	44	72	94
Screw Speed Rotation		r.p.m	10~300
Positioning Ring Diameter		mm	100
Claping Unit
Clamping Force		tf	35/45
Clamping Stroke		mm	200
Platen Size		mm	560*370
Ejector Distance		mm	40
Ejector Force		tf	17.2(1.75)
Others
Oil Tank Capacity		L	130
Electric Power		KW	5.5/7.5
Heater Power		KW	3.6
Machine Weight		ton	1.3
Machine Dimensions		m(L*W*H)	1.6*1.2*2.15(Max:2.7)































 · WHO WE ARE





TAIFU Machinery is a professional manufacturer of vertical injection molding machines integrated with strong capabilities of R&D, manufacturing and services, with more than 15 years manufacturing experience; 100 employees; 15,000 square feet of manufacturing floor spaces and with facility in the Dongguan city, Guangdong province, China. We are certified by ISO9001, CE and patents 20 inventions.

We aims to supply quality products and excellent services to create value for customers on the basis of integrity, innovation, and win-win cooperation. TAIFU Machinery will be your most valuable and reliable partner in business.



























We have 15,000 square feet of manufacturing floor space and with facilities in China. All the machines are manufactured by our own employees in our own factory.





• FACTORY AREA



· Parts processing center







• Machine assembly workshop







• Warehouse







• Finished product machine shop









• PHOTOS OF DIFFERENT EXHIBITIONS









• DELIVERY

We products and delivers more than 2,000 sets of vertical injection molding machines annually. All the machines will be packed well before shipment.









• CUSTOMER SITES

We provide one-stop solutions of plastic injection molding from raw material to automation, trying to create more values for our customers.







For more than 15 years, we have recognized our customers as long-term partners, growing together. Take advantage of this global strength, and grow with us as we grow with you.





• COOPERATIVE CLIENTS





There are wide range of vertical plastic injection molding machines (thermoplastic, rubber) we provide, including Rotary table vertical injection molding machine, Bakelite machine, BMC Machine, LSR silicone injection molding machine, C-type vertical injection molding machine, etc. Not only can we provide standard machines, but we are able to also customize machines to meet your unique needs.



• WHAT WE DO



   There are wide range of vertical plastic injection molding machines (thermoplastic, rubber) we provide, including Rotary table vertical injection molding machine, Bakelite machine, BMC Machine, LSR silicone injection molding machine, C-type vertical injection molding machine, etc. Not only can we provide standard machines, but we are able to also customize machines to meet your unique needs.



• GROUP PHOTO OF EMPLOYEES







Your Professional Vertical Injection Molding Machine Manufacturer-TAIFU



We are ready to provide a well-built, high-performance products. Contact Us Now!







Q1: Are you a trading company or manufacturer?

A: We are a factory located in Dongguan city-the largest industrial manufacturing area in China. All the machines are manufactured by our own employees in our own factory.



Q2: What are the features of this machine?

A:

• Fast clamping/low pressure slow mold-closing,automatic emergency mold-opening when the clamping is abnormal, this special safety design can protect the mould.
• The lower die is fixed/the upper die movable,which has a good positioning for the formed inserts in the die.The finished product has hydraulic ejection device, which is very convenient and easy to take out.



Q3:How do you handle packaging and shipping?

A: Our spool are plastic-lined inside and packaged in cartons for safe transportation.However,we can also customize the packaging according to your specific requirements.



Q4: How long is your delivery time?

A: Small machines are in stock. Generally, the delivery time of standard machines is 7~35 working days. For customized machines, it will be 40~60 working days.



Q5: What are your terms of payment?

A: 50%TT in advance, 50% balance before shipment. or L/C at sight.



If you are interested in it, please contact me without hesitation!

---
