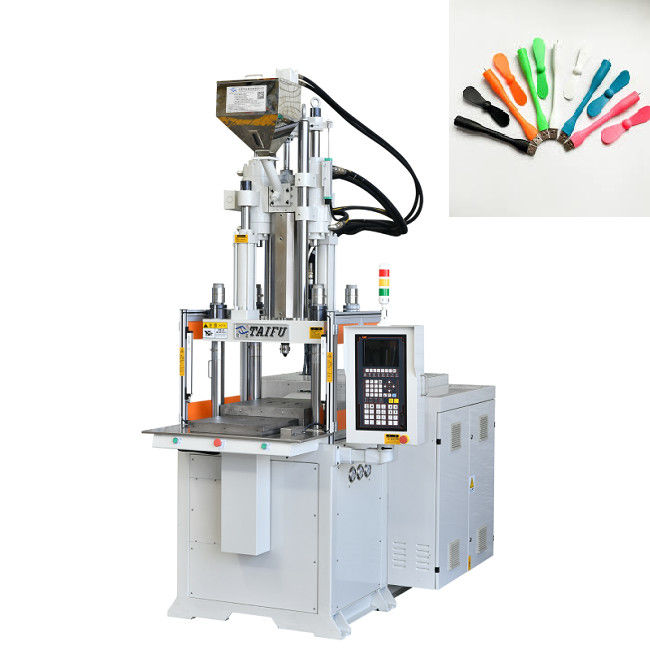

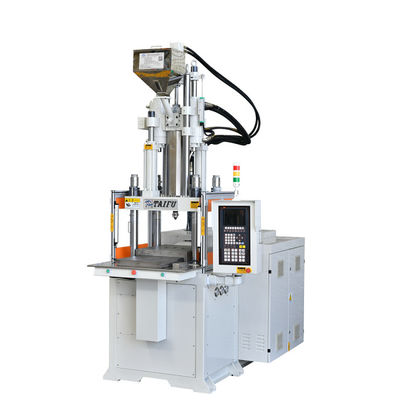

Vertical Single Slide Iniection Molding Machine For Vehicle Undertray Mount Clips
Company Production -TAIFU-.pdf
It is available to customize machines to meet your...
TAIFU-Product Catalog -.pdf
We are a professional manufacturer of vertical injection molding machines with 17 years of manufacturing experience.
Taifu vertical injection molding machine is known for the quality, reliability and prove performance, allowing for safe and easy handling and extremely high operating safety. Our machines are widely applied in the field of injection over moulding, multi-colors injection moulding , high-precision injection moulding, thermosetting injection moulding and liquid silicone injection moulding.
There are various machine model have v-35S/55S/85S/120S/160S/200S/250S/300S.
The main products produced by our factory include:Vertical plastic injection molding machine, Single slide machine,Double slide machine, Bakelite machine,High speed machine,C-type vertical molding machine,etc.
| ITEMS |
UNIT |
TFV4-55S |
| INJECTION UNIT |
| Screw stroke |
mm |
140 |
| Screw diameter |
mm |
28 |
30 |
32 |
| Theoretical injection volume |
cm3 |
86 |
99 |
113 |
| Injection weught(PS) |
g |
80 |
92 |
105 |
| oz |
2.83 |
3.25 |
3.69 |
| Injection pressure |
Mpa |
213 |
185 |
163 |
| kgf/cm2 |
2170 |
1890 |
1661 |
| Screw speed rotation |
r.p.m |
10~300 |
| CLAMPING UNIT |
| Clamping force |
kN(tf) |
539(55) |
| Clamping stroke |
mm |
200 |
| Distance between tie bars |
mm |
445*255 |
| QTY of ejector |
pcs |
3 |
| Distance between ejectors |
mm |
80 |
| Ejector distance |
mm |
100 |
| Ejector force |
kN(tf) |
26.5(2.7) |
| OTHERS |
| System pressure |
Mpa(kgf/cm2) |
13.7(140) |
| Oil tank capacity |
L |
140 |
| Electric power |
KW |
7.5 |
| Heater power |
KW |
5.5 |
| Machine dimensions |
L*W |
m |
2.05*1.3 |
| H(Exclude shok-absorbing feet) |
m |
Min:2.32(Max:2.9) |
| Cooling water capacity |
mm |
35 |
| Height of workbench(Include shock-absorbing feet) |
L/min |
1088+(60) |
| Machine weight |
ton |
1.9 |
TAIFU Machinery is a professional manufacturer of vertical injection molding machines integrated with strong capabilities of R&D, manufacturing and services, with more than 15 years manufacturing experience; 100 employees; 15,000 square feet of manufacturing floor spaces and with facility in the Dongguan city, Guangdong province, China. We are certified by ISO9001, CE and patents 20 inventions.
We aims to supply quality products and excellent services to create value for customers on the basis of integrity, innovation, and win-win cooperation. TAIFU Machinery will be your most valuable and reliable partner in business.
We have 15,000 square feet of manufacturing floor space and with facilities in China. All the machines are manufactured by our own employees in our own factory.
- Machine assembly wproshop
- Finished product machine shop
- PHOTOS OF DIFFERENT EXHIBITIONS
We products and delivers more than 2,000 sets of vertical injection molding machines annually. All the machines will be packed well before shipment.
We provide one-stop solutions of plastic injection molding from raw material to automation, trying to create more values for our customers.
For more than 15 years, we have recognized our customers as long-term partners, growing together. Take advantage of this global strength, and grow with us as we grow with you.
There are wide range of vertical plastic injection molding machines (thermoplastic, rubber) we provide, including Rotary table vertical injection molding machine, Bakelite machine, BMC Machine, LSR silicone injection molding machine, C-type vertical injection molding machine, etc. Not only can we provide standard machines, but we are able to also customize machines to meet your unique needs.
Your Professional Vertical Injection Molding Machine Manufacturer-TAIFU
We are ready to provide a well-built, high-performance products. Contact Us Now!
Q1:Are you a trading company or manufacturer?
A:We are a factorylocated in Dongguan city-thelargest industrial manufacturing area in China. Althe machines are manufactured by our ownemployees in our own factory.
Q2: How is the product quality?
A:Unique precision sealing needle design, the nozzle hole and sealing needle seam can achieve no flash and no dead glue, ensuring the high quality of the product.
Q3: What are your payment terms?
A:T/T 50% in deposite,50% before departure.
Q3: Packaging and shipping?
A:The spool is plastic-covered inside and cartoned outside. Or according to your request.
Q4: What fields are silicone injection molding machines suitable for?
LSR silicone injection molding machines are widely used in many fields such as baby products, medical equipment, electronics, and automobiles.
Q5: How about your delivery time?
A:Generally speaking, it will take 20 to 45 days after receiving the advance payment. The specific delivery time depends on
Regarding your order and quantity.
