85 Ton Rotary Vertical Plastic Product Injection Molding Machine For Phone Case

85 Ton Rotary Vertical Plastic Product Injection Molding Machine For Phone Case
85 Ton Rotary Vertical Plastic Product Injection Molding Machine For Phone Case 85 Ton Rotary Vertical Plastic Product Injection Molding Machine For Phone Case

Large Image :  85 Ton Rotary Vertical Plastic Product Injection Molding Machine For Phone Case

Product Details:
Place of Origin: Dongguan, China
Brand Name: TAIFU
Certification: CE, ISO9001
Model Number: TFV3-85R2
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: All the machines are fixed and well packaged in the plywood cases.
Delivery Time: Negotiable
Payment Terms: L/C, T/T
Supply Ability: 230 sets/month
Contact Now

85 Ton Rotary Vertical Plastic Product Injection Molding Machine For Phone Case

Description
Product Name: 85 Ton Rotary Vertical Plastic Product Injection Molding Machine For Phone Case Used For: Phone Case
Model: TFV3-55R2 Advantage: Easy To Operate
Machine Weight: 85 Ton Color: White
Warranty: 12 Months Before-sales Service: Provided
Highlight:

85T vertical plastic injection moulding machine

,

Rotary vertical plastic injection moulding machine

,

Phone Case vertical plastic injection machine

85 Ton Rotary Vertical Plastic Product Injection Molding Machine For Phone Case



We are a professional manufacturer of vertical injection molding machines with 17 years of manufacturing experience. The standard vertical injection molding machine is one of our main products. The locking force specifications of the TAIFU vertical rotary table injection molding machine range from 35 tons to 350 tons, with a minimum diameter of 810mm and a maximum diameter of 2300mm. The machine is equipped with a high-performance control system, providing strong guarantee for high-quality injection molding accuracy and stability.


This type of machine is commonly used for small to medium-sized plastic parts production, such as mobile phone casings, electronic components, auto parts and other precision parts. The 85 ton capacity refers to the clamping force exerted by the machine to hold the mold together during the injection process. This clamping force ensures that the mold remains closed and properly sealed while the molten material is injected.



1.Specification:


  UNIT TFV3-85R2 TFV3-120R2 TFV3-160R2
Injection Unit Shooter configuration code name Z8 Z12 Z16
Screw stroke mm 140 160 200
Screw Diameter mm 32 36 40 36 40 45 45 50 55
Theoretical Injection Volume cm3 113 143 176 163 201 254 318 393 475
Injection Weight(PS) g 105 133 164 151 187 237 296 365 442
oz 3.69 4.67 5.77 5.34 6.60 8.35 10.43 12.88 15.59
Max.Injection Pressure Mpa 228 180 146 222 180 142 218 177 146
kgf/cm2 2331 1842 1492 2269 1838 1452 2226 1803 1490
Injection Rate cm3/s 100 126 156 128 158 200 167 206 249
Max Injection Speed mm/s 124 126 105
Screw Speed Rotation r.p.m 10~280 10~280 10~280
Positioning ring diameter mm 120 120 120
Nozzle Out From Platens mm ≥45 ≥45 ≥45
Claping Unit Clamping Force KN(ton) 833(85)/980(100) 1176(120) 1568(160)
Clamping Stroke mm 250 280 300
Min.Mold Thickness mm 230(310) 280(380) 300(400)
Max.Opening mm 480(560) 560(660) 600(700)
(L*W)Max.Mould Size mm 360*360/450*320 420*420/560*360 520*520/700*450
Number of turntable stations mm 2 2 2
(D) Rotary Table Size mm φ1010 φ1200 φ1400
Top bar spacing mm 80 80 100
Ejector Distance mm 100 100 110
Ejector Force KN(ton) 45(4.6) 45(4.6) 45(4.6)
Others System Pressure Mpa(kgf/cm2) 13.7(140)/17.2(175) 13.7(140) 13.7(140)
Oil Tank Capacity L 300 380 480
Electric Power KW 15+2.2/18+2.2 18+2.2 22+2.2
Heater Power KW 7.0 10.7 13.7
Machine Dimensions L*W*H m 2.3*1.8*2.7 2.5*2.0*3.3 2.8*2.2*3.7
Work Table Height mm 1150+(70) 1310+(70) 1495+(80)
Machine Weight ton 4.6 7.0 10.0



2. Features:



  • Vertical clamping mold, vertical injection
  • During the inner side injection molding process, the outer side is synchronously ejected for product retrieval and placement, improving production efficiency by 30%-50%
  • Automatic insertion and extraction equipment can be installed to achieve fully automated production
  • Suitable for injection molding and multi-purpose injection molding processes of products with embedded parts

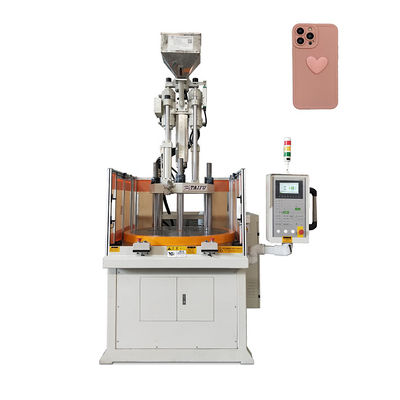

3. Machine Pictures:

85 Ton Rotary Vertical Plastic Product Injection Molding Machine For Phone Case 0

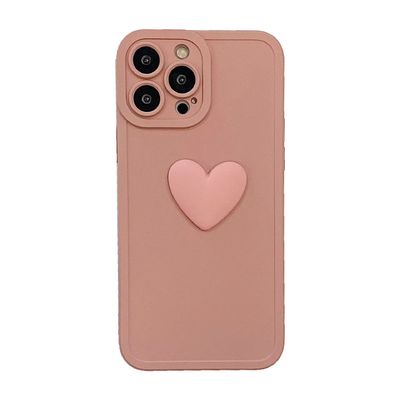

4. Applications:

85 Ton Rotary Vertical Plastic Product Injection Molding Machine For Phone Case 1



6. FAQ:


Q: Do you test all goods before delivery?
Yes, we have 100% testing before delivery


Q: Packaging and shipping?
The spool is plastic-covered inside and cartoned outside. Or according to your request.


Q: How about your delivery time?
Generally speaking, it will take 20 to 45 days after receiving the advance payment. The specific delivery time depends on
Regarding your order and quantity.



Q: What are your payment terms?
T/T 50% deposite,50%before departure.



If you are interested in our machines, please do not hesitate to CONTACT US!
