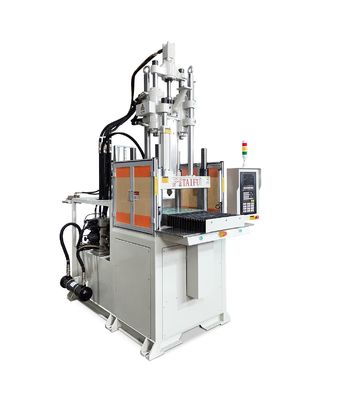

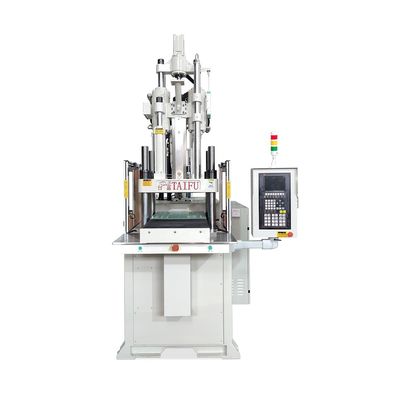

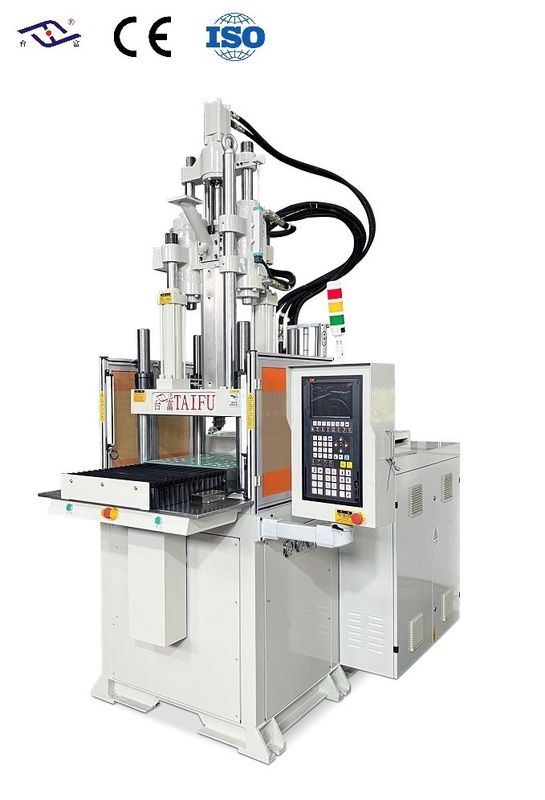

85 Ton Vertical Injection Molding Machine With Single Slide For Cloth Hanger
It is available to customize machines to meet your...
We are a professional manufacturer of vertical injection molding machines with 17 years of manufacturing experience.
This machine features vertical mold clamping, vertical injection, and a single slide structure, offering numerous advantages for efficient operation.
The unique design allows the molded product to effortlessly slide out of the upper template space after the injection molding process is completed. This feature significantly enhances the convenience of operation for workers. Additionally, for products with larger ejection dimensions, the upper mold can separate from the lower mold, creating additional space for the lower mold to slide out. This enables efficient production of products with high ejection dimensions. Our machine has found widespread applications in various plastic products with embedded components and multipurpose injection molding processes.
We understand that every customer has unique requirements. Therefore, we offer custom development services to provide the most precise, efficient, and cost-effective personalized combination solutions. Our team of experts will work closely with you to develop a tailored solution that meets your specific needs, incorporating advanced features such as precise drive systems, mold locking mechanisms, and injection units.
Experience the exceptional performance and reliability of our 85 Ton Vertical Injection Molding Machine with Single Slide. It is designed to deliver outstanding results consistently, especially for cloth hanger production. Whether you need a standalone machine or a complete production line, we have the expertise to provide the ideal solution for your business.
For more information about our products and how our solutions can elevate your cloth hanger manufacturing, please don't hesitate to contact us. We are committed to delivering exceptional products and personalized service to support your success.
| ITEMS |
UNIT |
TFV4-85S |
| INJECTION UNIT |
Screw stroke |
mm |
140 |
| Screw Diameter |
mm |
32 |
36 |
40 |
| Theoretical Injection Volume |
cm3 |
113 |
143 |
176 |
| Injection Weight(PS) |
g |
105 |
133 |
164 |
| oz |
3.69 |
4.67 |
5.77 |
| Screw Speed Rotation |
r.p.m |
10~280 |
| CLAMPING UNIT |
Clamping Force |
KN(ton) |
833(85)/980(100) |
| Clamping Stroke |
mm |
250 |
| Top bar spacing |
mm |
80 |
| Ejector Distance |
mm |
100 |
| Ejector Force |
KN(ton) |
26.5(2.7) |
| OTHERS |
System Pressure |
Mpa(kgf/cm2) |
13.7(140)/17.2(175) |
| Electric Power |
KW |
15/18.7 |
| Heater Power |
KW |
7 |
| Machine Size |
L*W*H |
m |
2.2*1.5*2.7 |
| Machine Weight |
ton |
3.9 |
· WHO WE ARE
TAIFU Machinery is a professional manufacturer of vertical injection molding machines integrated with strong capabilities of R&D, manufacturing and services, with more than 15 years manufacturing experience; 100 employees; 15,000 square feet of manufacturing floor spaces and with facility in the Dongguan city, Guangdong province, China. We are certified by ISO9001, CE and patents 20 inventions.
We aims to supply quality products and excellent services to create value for customers on the basis of integrity, innovation, and win-win cooperation. TAIFU Machinery will be your most valuable and reliable partner in business.
· OFFICE AREA
We have 15,000 square feet of manufacturing floor space and with facilities in China. All the machines are manufactured by our own employees in our own factory.
· Parts processing center
- Machine assembly workshop
- Finished product machine shop
- PHOTOS OF DIFFERENT EXHIBITIONS
We products and delivers more than 2,000 sets of vertical injection molding machines annually. All the machines will be packed well before shipment.
We provide one-stop solutions of plastic injection molding from raw material to automation, trying to create more values for our customers.
For more than 15 years, we have recognized our customers as long-term partners, growing together. Take advantage of this global strength, and grow with us as we grow with you.

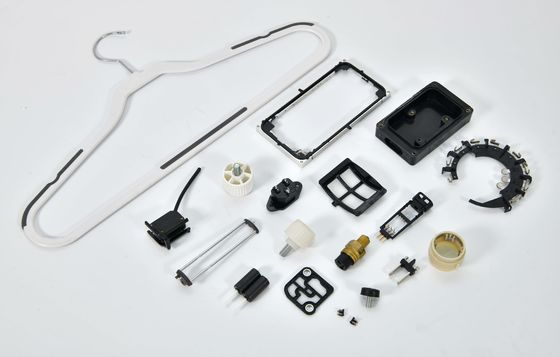

There are wide range of vertical plastic injection molding machines (thermoplastic, rubber) we provide, including Rotary table vertical injection molding machine, Bakelite machine, BMC Machine, LSR silicone injection molding machine, C-type vertical injection molding machine, etc. Not only can we provide standard machines, but we are able to also customize machines to meet your unique needs.
There are wide range of vertical plastic injection molding machines (thermoplastic, rubber) we provide, including Rotary table vertical injection molding machine, Bakelite machine, BMC Machine, LSR silicone injection molding machine, C-type vertical injection molding machine, etc. Not only can we provide standard machines, but we are able to also customize machines to meet your unique needs.
Your Professional Vertical Injection Molding Machine Manufacturer-TAIFU
We are ready to provide a well-built, high-performance products. Contact Us Now!
Q1: Are you a trading company or manufacturer?
A: We are a factory located in Dongguan city-the largest industrial manufacturing area in China. All the machines are manufactured by our own employees in our own factory.
Q2: Do you test all goods before delivery?
Yes, we have 100% testing before delivery
Q3: What are your payment terms?
A:T/T 50% in deposite,50% before departure.
Q4: What are the advantages of single slide plate injection molding machine?
A:Multi-stage temperature control,multi-stage injection pressure and injection speed,and injection back pressure without segment adjustment,more suitable for the molding of vatious precision plastic parts.
Q5:How do you handle packaging and shipping?
A: Our spool are plastic-lined inside and packaged in cartons for safe transportation.However,we can also customize the packaging according to your specific requirements.
