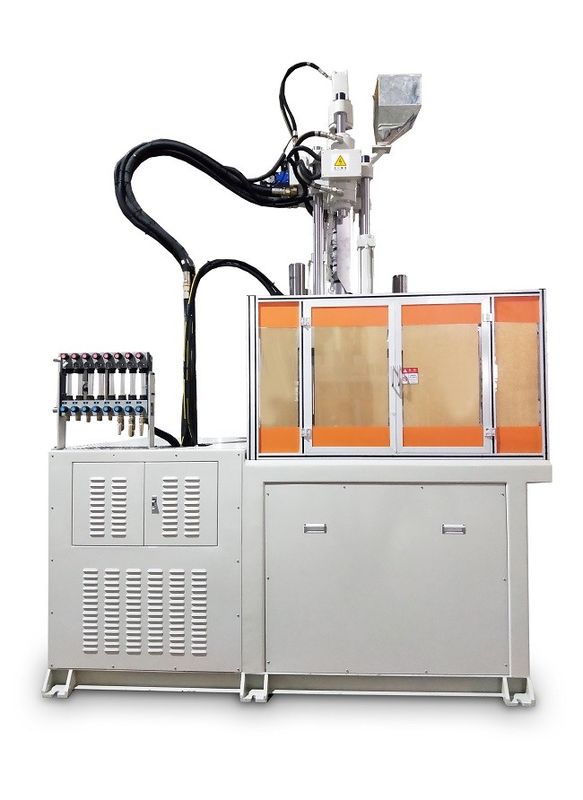

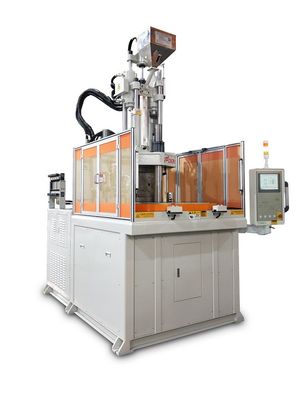

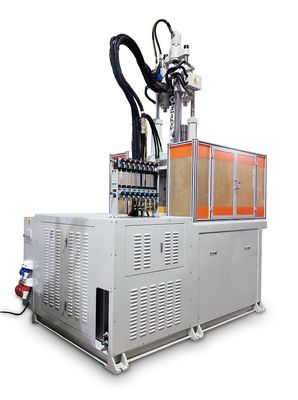

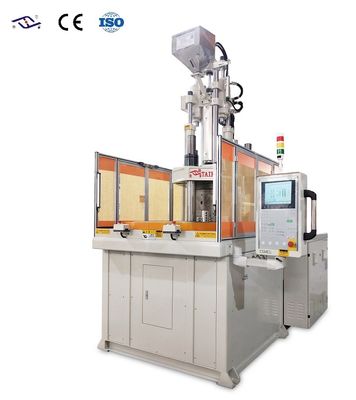

High Efficiency 120 Ton Auto Accessories Rotary Vertical Injection Mould Machine



High Efficiency 120 Ton Auto Accessories Rotary Vertical Injection Mould Machine





It is available to customize machines to meet your...



TAIFU MACHIERY have been operating as a professional manufacturer specializing in vertical injection molding machines for the past 17 years, accumulating extensive manufacturing experience. Our primary focus is on producing high-quality standard vertical injection molding machines. Our product range includes models ranging from 15 to 550 tons, with injection volumes ranging from 3 grams to 3000 grams.



Our machines feature vertical mold clamping and vertical injection processes. Upon completion of the injection molding process, the product is automatically pushed out from the upper template space, enhancing ease of operation for workers. Additionally, for fully automated production, our machines can be equipped with optional robots and automation systems.



We understand the importance of catering to the unique requirements of our customers. Therefore, we offer customization and development services tailored to their specific needs. Our aim is to provide the most precise, efficient, and cost-effective personalized solutions.







ITEMS				UNIT	TFV3-120R2
Injection Unit		Shooter configuration code		name	Z12
		Screw stroke		mm	160
		Screw Diameter		mm	36	40	45
		Theoretical Injection Volume		cm3	163	201	254
		Injection Weight(PS)		g	151	187	237
				oz	5.34	6.6	8.35
		Screw Speed Rotation		r.p.m	10~280
		Positioning ring diameter		mm	120
Claping Unit		Clamping Force		KN(ton)	1176(120)
		Clamping Stroke		mm	280
		Top bar spacing		mm	80
		Ejector Distance		mm	100
		Ejector Force		KN(ton)	45(4.6)
Others		System Pressure		Mpa(kgf/cm2)	13.7(140)
		Electric Power		KW	18+2.2
		Heater Power		KW	10.7
		Machine Dimensions	L*W*H	m	2.5*2.0*3.3
		Machine Weight		ton	7



























 · WHO WE ARE





TAIFU Machinery is a professional manufacturer of vertical injection molding machines integrated with strong capabilities of R&D, manufacturing and services, with more than 15 years manufacturing experience; 100 employees; 15,000 square feet of manufacturing floor spaces and with facility in the Dongguan city, Guangdong province, China. We are certified by ISO9001, CE and patents 20 inventions.

We aims to supply quality products and excellent services to create value for customers on the basis of integrity, innovation, and win-win cooperation. TAIFU Machinery will be your most valuable and reliable partner in business.













 We have 15,000 square feet of manufacturing floor space and with facilities in China. All the machines are manufactured by our own employees in our own factory.



• FACTORY AREA









• Machine assembly workshop









• Warehouse









• Finished product machine shop









• PHOTOS OF DIFFERENT EXHIBITIONS









• DELIVERY



 We products and delivers more than 2,000 sets of vertical injection molding machines annually. All the machines will be packed well before shipment.











• CUSTOMER SITES

We provide one-stop solutions of plastic injection molding from raw material to automation, trying to create more values for our customers.











For more than 15 years, we have recognized our customers as long-term partners, growing together. Take advantage of this global strength, and grow with us as we grow with you.





• COOPERATIVE CLIENTS







There are wide range of vertical plastic injection molding machines (thermoplastic, rubber) we provide, including Rotary table vertical injection molding machine, Bakelite machine, BMC Machine, LSR silicone injection molding machine, C-type vertical injection molding machine, etc. Not only can we provide standard machines, but we are able to also customize machines to meet your unique needs.





• WHAT WE DO



There are wide range of vertical plastic injection molding machines (thermoplastic, rubber) we provide, including Rotary table vertical injection molding machine, Bakelite machine, BMC Machine, LSR silicone injection molding machine, C-type vertical injection molding machine, etc. Not only can we provide standard machines, but we are able to also customize machines to meet your unique needs.



• GROUP PHOTO OF EMPLOYEES





Your Professional Vertical Injection Molding Machine Manufacturer-TAIFU



We are ready to provide a well-built, high-performance products. Contact Us Now!







Q1:What are the advantages of Rotary Vertical​ injection molding machines?

 A:The upper and lower moulds can be more accurately closed. Automation devices such as automatic insertion and removal can be installed to achieve automatic operation of the whole machine.



Q2:Do you conduct a quality check on all goods before delivery?

A:Absolutely, we ensure 100% testing of all products before delivery to guarantee their quality and reliability.



Q3: What are your payment terms?
A:T/T 50% in deposite,50% before departure.



Q4:How do you handle packaging and shipping?

A: Our spool are plastic-lined inside and packaged in cartons for safe transportation.However,we can also customize the packaging according to your specific requirements.

Q5: How about your delivery time?
A:Generally speaking, it will take 20 to 45 days after receiving the advance payment. The specific delivery time depends on
Regarding your order and quantity.





If you are interested in it, please contact me without hesitation!

---
