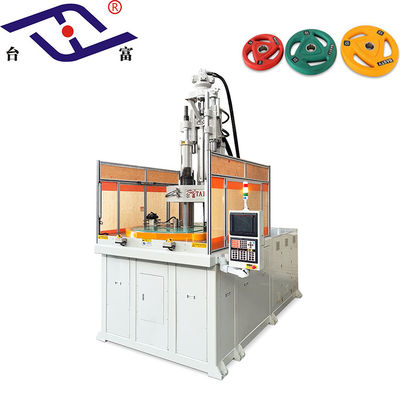

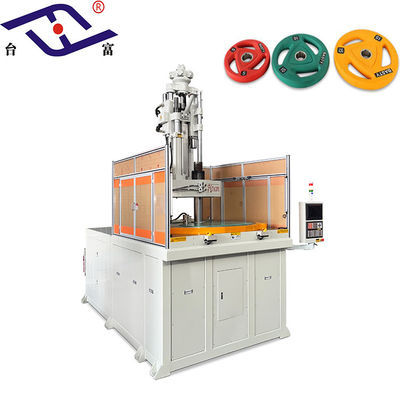

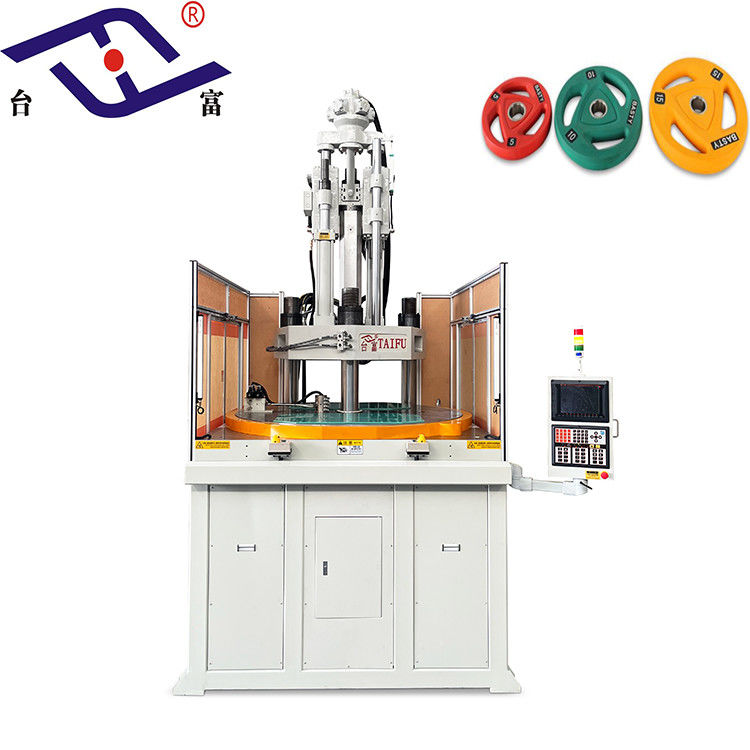

High Efficiency 200 Ton Rotary Vertical Injection Molding Machine For Barbell Plates

High Efficiency 200 Ton Rotary Vertical Injection Molding Machine For Barbell Plates



It is available to customize machines to meet your...



We are a professional manufacturer of vertical injection molding machines with 17 years of manufacturing experience. The standard vertical injection molding machine is one of our main products. The product models include 15-550 tons, and the injection volume can be from 3 grams to 3000 grams.



Vertical mold clamping, vertical injection. After the injection molding is completed, the product push out of the upper template space, making it easier for workers to operate. At the same time, robots and automation can be optionally installed for fully automated production.



We can customize and develop according to the actual needs of customers and provide the most precise, efficient and economical personalized combination solution.







ITEMS		UNIT	TFV3-200R2
Injection Unit
Screw Diameter		mm	55	60	65
Injection Weight(PS)		g	552	656	771
		oz	19.5	23.1	27.1
Injection Pressure		kgf/cm3	2406	2022	1723
Injection Rate		cm3/s	214	254	298
Injection Speed		mm/s	90
Screw Speed Rotation		r.p.m	0-220
Nozzle Out From Platens		mm	≥45
Claping Unit
Clamping Force		tf	200
Clamping Stroke		mm	350
Rotary Table Size		mm	1600
Ejector Distance		mm	150
Ejector Force		tf	4.6
Others
System Pressure		Mpa(kgf/cm3)	13.7(140)
Oil Tank Capacity		L	850
Machine Weight		tf	14.7
Machine Dimensions		m(L*W*H)	3.8*2.5*5.3























 · WHO WE ARE



TAIFU Machinery is a professional manufacturer of vertical injection molding machines integrated with strong capabilities of R&D, manufacturing and services, with more than 15 years manufacturing experience; 100 employees; 15,000 square feet of manufacturing floor spaces and with facility in the Dongguan city, Guangdong province, China. We are certified by ISO9001, CE and patents 20 inventions.

We aims to supply quality products and excellent services to create value for customers on the basis of integrity, innovation, and win-win cooperation. TAIFU Machinery will be your most valuable and reliable partner in business.















We have 15,000 square feet of manufacturing floor space and with facilities in China. All the machines are manufactured by our own employees in our own factory.



• FACTORY AREA





• Machine assembly workshop







• Warehouse









• Finished product machine shop









• PHOTOS OF DIFFERENT EXHIBITIONS







• DELIVERY



We products and delivers more than 2,000 sets of vertical injection molding machines annually. All the machines will be packed well before shipment.









• CUSTOMER SITES

We provide one-stop solutions of plastic injection molding from raw material to automation, trying to create more values for our customers.











For more than 15 years, we have recognized our customers as long-term partners, growing together. Take advantage of this global strength, and grow with us as we grow with you.





• COOPERATIVE CLIENTS







There are wide range of vertical plastic injection molding machines (thermoplastic, rubber) we provide, including Rotary table vertical injection molding machine, Bakelite machine, BMC Machine, LSR silicone injection molding machine, C-type vertical injection molding machine, etc. Not only can we provide standard machines, but we are able to also customize machines to meet your unique needs.





• WHAT WE DO



There are wide range of vertical plastic injection molding machines (thermoplastic, rubber) we provide, including Rotary table vertical injection molding machine, Bakelite machine, BMC Machine, LSR silicone injection molding machine, C-type vertical injection molding machine, etc. Not only can we provide standard machines, but we are able to also customize machines to meet your unique needs.



• GROUP PHOTO OF EMPLOYEES





Your Professional Vertical Injection Molding Machine Manufacturer-TAIFU



We are ready to provide a well-built, high-performance products. Contact Us Now!





Q1: Are you a trading company or manufacturer?

A: We are a factory located in Dongguan city-the largest industrial manufacturing area in China. All the machines are manufactured by our own employees in our own factory.



Q2: Do you test all goods before delivery?
Yes, we have 100% testing before delivery



Q3: What are your payment terms?
A:T/T 50% in deposite,50% before departure.

Q4: What is the feature of the machine ?

A: The disc rotates 180 degrees in the same horizontal plane, which allows the operator to pick and place inserts on the fixed operating surface, which is convenient for work and high in production efficiency.



Q5:How do you handle packaging and shipping?

A: Our spool are plastic-lined inside and packaged in cartons for safe transportation.However,we can also customize the packaging according to your specific requirements.



If you are interested in it, please contact me without hesitation!

---
