High Efficiency 55 Ton SIM Card Tray Holder Slot Making Machine Vertical Molding Machine

High Efficiency 55 Ton SIM Card Tray Holder Slot Making Machine Vertical Molding Machine
High Efficiency 55 Ton SIM Card Tray Holder Slot Making Machine Vertical Molding Machine
High Efficiency 55 Ton SIM Card Tray Holder Slot Making Machine Vertical Molding Machine High Efficiency 55 Ton SIM Card Tray Holder Slot Making Machine Vertical Molding Machine High Efficiency 55 Ton SIM Card Tray Holder Slot Making Machine Vertical Molding Machine High Efficiency 55 Ton SIM Card Tray Holder Slot Making Machine Vertical Molding Machine

Large Image :  High Efficiency 55 Ton SIM Card Tray Holder Slot Making Machine Vertical Molding Machine

Product Details:
Place of Origin: Guangdong,China
Brand Name: TAIFU
Certification: CE,ISO9001
Model Number: TFV3-55R2
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: All the machines are fixed and well packaged in the plywood cases.
Delivery Time: Negotiable
Payment Terms: T/T, L/C, D/A, D/P
Supply Ability: 220 set per month
Contact Now

High Efficiency 55 Ton SIM Card Tray Holder Slot Making Machine Vertical Molding Machine

Description
Product Name: High Efficiency 55 Ton SIM Card Tray Holder Slot Making Machine Vertical Molding Machine Model: TFV3-55R2
Function: SIM Card Tray Holder Slot Key Selling Points: High Effiency
Warranty: 1 Year Application: Motor Rotor
Clamping Force: 55 Ton Injiection Rate: 44cm³/s-105cm³/s
Highlight:

High Efficiency Slot Making Machine

,

55 Ton Slot Making Machine

,

Vertical Slot Making Machine

High Efficiency 55 Ton SIM Card Tray Holder Slot Making Machine Vertical Molding Machine



    Taifu Machinery Factory is a manufacturer specializing in the manufacture of vertical plastic injection molding machines. It has passed CE certification and obtained more than 20 invention patents.

   Our rotary surface of the rotary machine rotates 180 degrees back and forth alternately at the same level, allowing the operator to pick up and place inserts on the fixed operating surface, which is convenient and has high production efficiency.High-precision positioning allows the upper and lower molds to be more accurately closed.

There are various machine models we have VR-35/55/85/120/160/200/250/300



1.Specification:


Items Unit TFV3-35R2 TFV3-55R2 TFV3-85R2
Injection Unit
Screw Diameter mm 22 26 28 28 32 36 32 36 40
Theoretical Injection Volume cm³ 53 74 86 86 113 143 113 143 176
Injection Weight g 49 69 80 80 105 133 105 133 164
Max. Injection Pressure Mpa 248 178 153 213 163 129 228 180 146
Injection Rate cm³/s 44 62 72 63 84 107 100 126 156
Injection Speed mm/s 117 105 124
Screw Speed Rotation r.p.m 10~300 10~300 10~280
Nozzle Out From Platens mm ≥45 ≥45 ≥45
Clamping Unit
Clamping Force KN 343(35)/441(45) 539(55) 833(85)/980(100)
Clamping Stroke mm 200 200 250
Ejector Force KN 26.5(2.7) 26.5(2.7) 45(4.6)
Others
System Pressure Mpa 13.7(140)/17.2(175) 13.7(140) 13.7(140)/17.2(175)
Oil Tank Capacity L 200 230 300
Motor Power KW 7.5/11 11 15+2.2/18+2.2
Heater Power KW 3.6 5.5 7.0



2. Features:



  • Use KEBA conrtrolle
  • High-precision operation makes products of higher quality
  • Can cooperate with automation to achieve unmanned production
  • Save energy and improve production efficiency
  • It can be used with the servo main system to increase the product qualification rate and extend the service life of the machine.

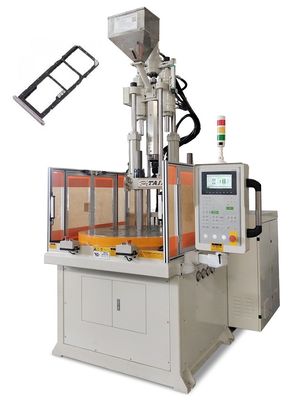

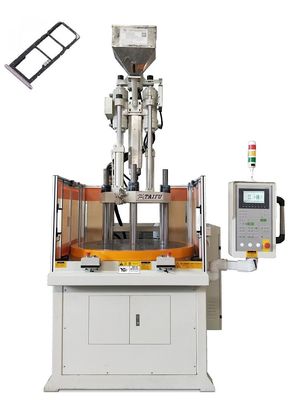

3. Machine Pictures:



High Efficiency 55 Ton SIM Card Tray Holder Slot Making Machine Vertical Molding Machine 0

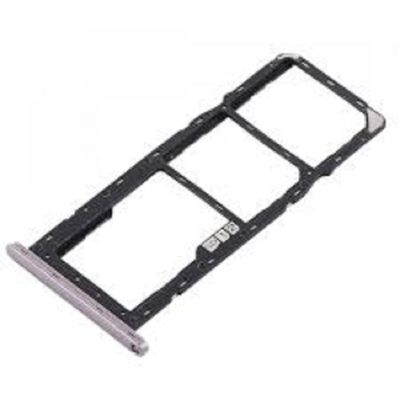

4. Applications:

High Efficiency 55 Ton SIM Card Tray Holder Slot Making Machine Vertical Molding Machine 1




5. Why choose us?
1. High-configuration parts, high-quality machines
2. Customers can select parts and customize models
3. Highly precise technical parameters create the most standard products
4. Excellent pre-sales and after-sales services



6. FAQ:



Q: Packaging and shipping?
A:The inside of the spool is covered with plastic and the outside is packed in a wooden box to prevent bumps. Also according to customer requirements.


Q: How about your delivery time?
A:Generally speaking, it will take 20 to 45 days after receiving the advance payment. The specific delivery time depends on the machine configuration and quantity of your order.



Q: What are your payment terms?
A:T/T 30% deposite,70%before departure.



Q: How to choose the right machine size?
A:You can contact us at any time and we will recommend the most suitable model based on the products you want to make.



If you are interested in our machines, please do not hesitate to CONTACT US!
