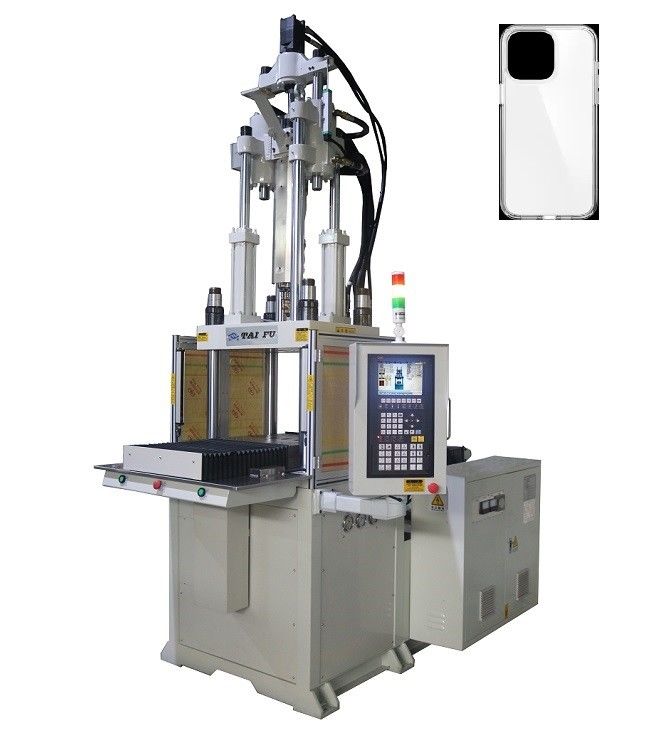

85 Ton Phone Case Making Machine Injection Molding Machine With Single Slide

85 Ton Phone Case Making Machine Injection Molding Machine With Single Slide
85 Ton Phone Case Making Machine Injection Molding Machine With Single Slide
85 Ton Phone Case Making Machine Injection Molding Machine With Single Slide 85 Ton Phone Case Making Machine Injection Molding Machine With Single Slide 85 Ton Phone Case Making Machine Injection Molding Machine With Single Slide 85 Ton Phone Case Making Machine Injection Molding Machine With Single Slide

Large Image :  85 Ton Phone Case Making Machine Injection Molding Machine With Single Slide

Product Details:
Place of Origin: Guangdong,China
Brand Name: TAIFU
Certification: ISO9001,CE
Model Number: TFV4-85S
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: All the machines are fixed and well packaged in the plywood cases.
Delivery Time: Negotiable
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 220 sets/month
Contact Now

85 Ton Phone Case Making Machine Injection Molding Machine With Single Slide

Description
Product Name: 85 Ton Phone Case Making Machine Injection Molding Machine With Single Slide Usage: Phone Case
Applicable Industries: Air Filter Motor: Servo Energy Saving
Key Selling Points: High Efficiency After-sales Service Provided: After-sales Service Provided
Color: Cutomized Warranty: 1 Year
Style: New
Highlight:

Phone Case Making Machine

85 Ton Phone Case Making Machine Injection Molding Machine With Single Slide



It is available to customize machines to meet your...



We are a professional manufacturer of vertical injection molding machines with 17 years of manufacturing experience. The single slide vertical injection molding machine is one of our main products. This model models include 25-1800 tons, and the injection volume can be from 3 grams to 3000 grams.



We can customize and develop according to the actual needs of customers and provide the most precise, efficient and economical personalized combination solutions.



1. Sepcifications:



  UNIT TFV4-35S TFV4-55S TFV4-85S
INJECTION UNIT Screw stroke  mm 140 140 140
 Screw Diameter   mm 22 26 28 28 30 32 32 36 40
Theoretical Injection Volume cm3 53 74 86 86 99 113 113 143 176
Injection Weight(PS) g 49 69 80 80 92 105 105 133 164
oz 1.75 2.44 2.83 2.83 3.25 3.69 3.69 4.67 5.77
Max.Injection Pressure Mpa 248 178 153 213 185 163 228 180 146
kgf/cm2 2531 1812 1563  2170   1890   1661  2331 1842 1492
Injection Rate cm3/s 44 62 72 65 74 84 100 126 156
Max Injection Speed mm/s 117 105 124
Screw Speed Rotation r.p.m 10~300 10~300 10~280
Positioning ring diameter mm 100 110 120
CLAMPING UNIT Clamping Force KN(ton) 343(35)/441(45) 539(55) 833(85)/980(100)
Clamping Stroke mm 200 200 250
Min.Mold Thickness mm 150(210) 180(240) 230(310)
Max.Opening mm 350(410) 380(440) 480(560)
(L*W)Distance Between Tie Bars mm 410*220 445*255 520*350
(L*W)Max.Mould  Size mm 330*360 400*375 500*470
Top bar spacing mm 80 80 80
Ejector Distance mm 100 100 100
Ejector Force KN(ton) 26.5(2.7) 26.5(2.7) 26.5(2.7)
OTHERS System Pressure  Mpa(kgf/cm2)   13.7(140)/17.2(175)  13.7(140)  13.7(140)/17.2(175)
Oil Tank Capacity L 130 140 280
Electric Power KW 5.5/7.5 7.5 15/18.7
Heater Power KW 3.6 5.5 7.0
Machine Size L*W*H m 1.8*1.2*2.2 2.05*1.3*2.32 2.2*1.5*2.7
Machine Weight ton 1.5 1.9 3.9



2. Features:

  • After the mold is opened, the lower mold automatically moves in front of the operator, making it easier to operate and safer.
  • Multi-stage temperature control, multi-stage injection pressure and injection speed, and stepless adjustment of injection back pressure are more suitable for the molding of various precision plastic parts.
  • Easier to embed automation equipment to achieve fully automated production lines.

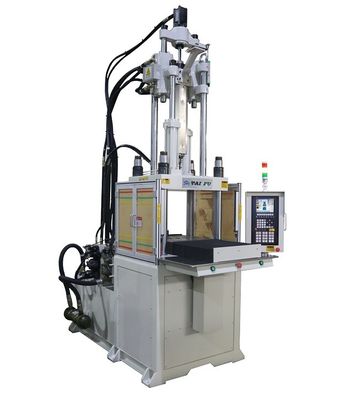

3. Machine Pictures:



85 Ton Phone Case Making Machine Injection Molding Machine With Single Slide 0

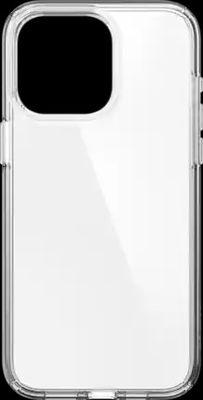

4. Applications:



 85 Ton Phone Case Making Machine Injection Molding Machine With Single Slide 1



5. FAQ:



Q: Are you a trading company or manufacturer?

A: We are a factory located in Dongguan city-the largest industrial manufacturing area in China. All the machines are manufactured by our own employees in our own factory.



Q: How long is your delivery time?

A: Small machines are in stock. Generally, the delivery time of standard machines is 7~35 working days. For customized machines, it will be 40~60 working days.



Q: What are your terms of payment?

A: 50%TT in advance, 50% balance before shipment. or L/C at sight.



Q: How long is the warranty time?

A: 1 year warranty for all the machines. We provide free parts for any not man-made damages and quality problems. Our technical support will accompany with you during the machines' lifetime. If machines are operated properly, it can service more than 20 years.



If you are interested in our machines, please do not hesitate to CONTACT US!
