Energy Saving 85 Ton Standard Vertical Injection Molding Machine Used For Auto Connector

Energy Saving 85 Ton Standard Vertical Injection Molding Machine Used For Auto Connector
Energy Saving 85 Ton Standard Vertical Injection Molding Machine Used For Auto Connector
Energy Saving 85 Ton Standard Vertical Injection Molding Machine Used For Auto Connector Energy Saving 85 Ton Standard Vertical Injection Molding Machine Used For Auto Connector Energy Saving 85 Ton Standard Vertical Injection Molding Machine Used For Auto Connector

Large Image :  Energy Saving 85 Ton Standard Vertical Injection Molding Machine Used For Auto Connector

Product Details:
Place of Origin: Guangdong,China
Brand Name: TAIFU
Certification: ISO9001,CE
Model Number: TFV4-85
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: All the machines are fixed and well packaged in the plywood cases.
Delivery Time: Negotiable
Payment Terms: T/T, Western Union, L/C
Supply Ability: 220 set/month
Contact Now

Energy Saving 85 Ton Standard Vertical Injection Molding Machine Used For Auto Connector

Description
Product Name: Energy Saving 85 Ton Standard Vertical Injection Molding Machine Function: Making Plastic Product
Advantage: Save Energy Key Selling Points: Energy Saving
Warranty: 1 Year Application: Auto Connector
After-sales Service: Provided Color: White

Energy Saving 85 Ton Standard Vertical Injection Molding Machine Used For Auto Connector



  Taifu Machinery Factory is a manufacturer specializing in the manufacture of vertical plastic injection molding machines. It has passed CE certification and is a high-tech enterprise.







1. Sepcifications:



ITEMS UNIT TFV4-35(45) TFV4-55 TFV4-85
INJECTION UNIT
Screw stroke mm 140 140 140
Screw Diameter mm 22 28 32 26 30 36 32 36 40
Theoretical Injection Volume cm3 53 86 113 74 99 143 113 143 176
Injection Weight(PS) g 49 80 105 69 92 133 105 133 164
oz 1.75 2.83 3.69 2.44 3.25 4.67 3.69 4.67 5.77
Max.Injection Pressure Mpa 248 153 117 247 185 129 228 180 146
kgf/cm2 2531 1563 1196 2516 1890 1313 2331 1842 1492
Injection Rate cm3/s 44 72 94 56 74 107 100 126 156
Max Injection Speed mm/s 117 105 124
Screw Speed Rotation r.p.m 10~300 10~300 10~280
Positioning ring diameter mm 100 110 120
Nozzle Out From Platens mm ≥45 ≥45 ≥45
CLAMPING UNIT
Clamping Force KN(ton) 343(35)/441(45) 539(55) 833(85)/980(100)
Clamping Stroke mm 200 200 250
Min.Mold Thickness mm 150(210) 180(240) 230(310)
Max.Opening mm 350(410) 380(440) 480(560)
(L*W)Distance Between Tie Bars mm 410*220 445*255 520*350
(L*W)Max.Mould Size mm 400*350 425*380 500*500
(L*W)尺寸Platen Size mm 560*370 580*400 710*540
QTY of Ejector pcs 1 1 1
Ejector Distance mm 40 40 50
Ejector Force KN(ton) 17.2(1.75) 17.2(1.75) 26.5(2.7)
Other
System Pressure Mpa(kgf/cm2) 13.7(140)/17.2(175) 13.7(140) 13.7(140)/17.2(175)
Oil Tank Capacity L 130 140 280
Electric Power KW 5.5/7.5 7.5 15/18.7
Heater Power KW 3.6 5.5 7.0
Machine Dimensions L*W m 1.6*1.2 1.9*1.3 2.0*1.5
H(Excluding shock-absorbing feet) m Min:2.15(Max:2.7) Min:2.25(Max:2.8) Min:2.6(Max:3.3)
Cooling water capacity L/min 25 35 40
Height of Workbench+(Excluding shock-absorbing feet) mm 940+(60) 1020+(60) 1040+(70)
Machine Weight ton 1.3 1.6 3.5

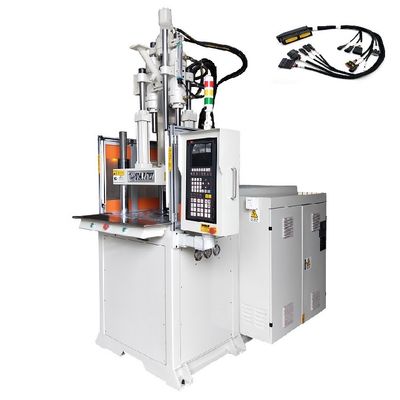

2. Machine Pictures:



Energy Saving 85 Ton Standard Vertical Injection Molding Machine Used For Auto Connector 0

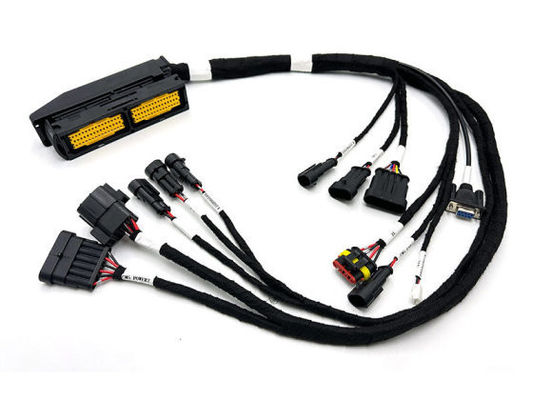

4. Applications:



Energy Saving 85 Ton Standard Vertical Injection Molding Machine Used For Auto Connector 1



4.Why choose us?
1. Best product quality and most competitive price.
2. Experienced technical personnel in production.
3. Customized design and production.
4. Excellent pre-sales and after-sales services.



5. FAQ:



Q: What are your terms of payment?

A: 50%TT in advance, 50% balance before shipment. or L/C at sight.



Q: Are you a trading company or manufacturer?

A: We are a factory located in Dongguan city-the largest industrial manufacturing area in China. All the machines are manufactured by our own employees in our own factory.



Q: How long is your delivery time?

A: Small machines are in stock. Generally, the delivery time of standard machines is 7~35 working days. For customized machines, it will be 40~60 working days.



Q: How long is the warranty time?

A: 1 year warranty for all the machines. We provide free parts for any not man-made damages and quality problems. Our technical support will accompany with you during the machines' lifetime. If machines are operated properly, it can service more than 20 years.



If you are interested in our machines, please do not hesitate to CONTACT US!
